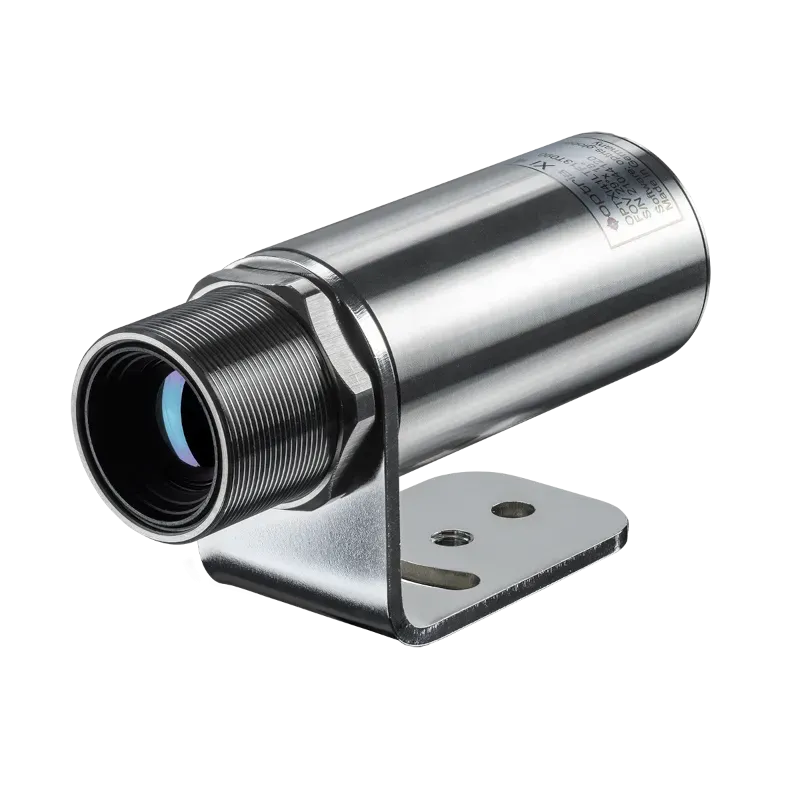

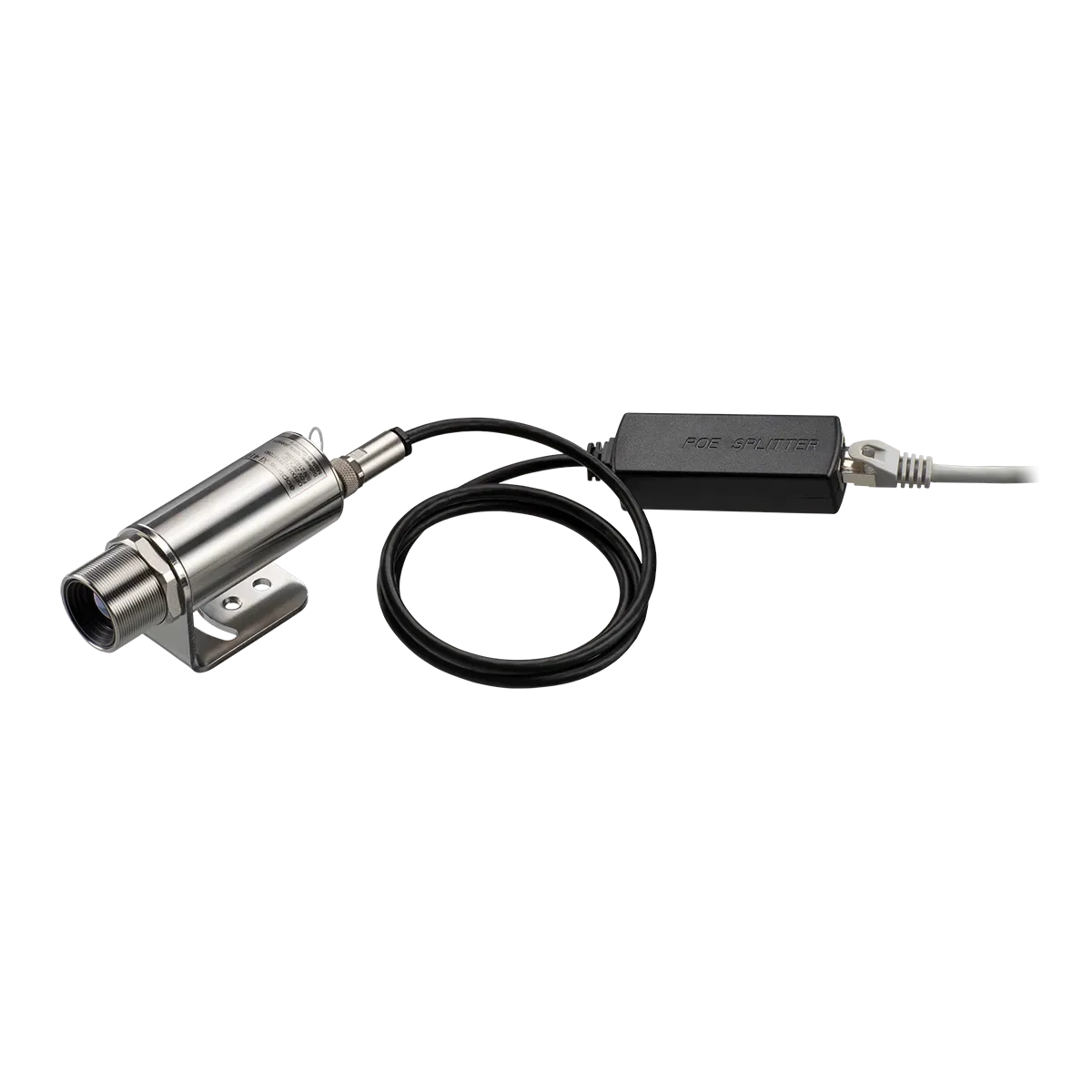

The Optris Xi410 LT ETH thermal camera offers non-contact infrared imaging for industrial monitoring and research applications. This fixed thermal camera with Ethernet operates in the 8–14 µm range, measuring temperatures from –20 °C to 1500 °C. With 384 × 240 pixel resolution and a high distance-to-spot ratio, the fixed infrared camera delivers precise results at long distances. Moreover, the motorized focus allows remote, precise focus adjustments.

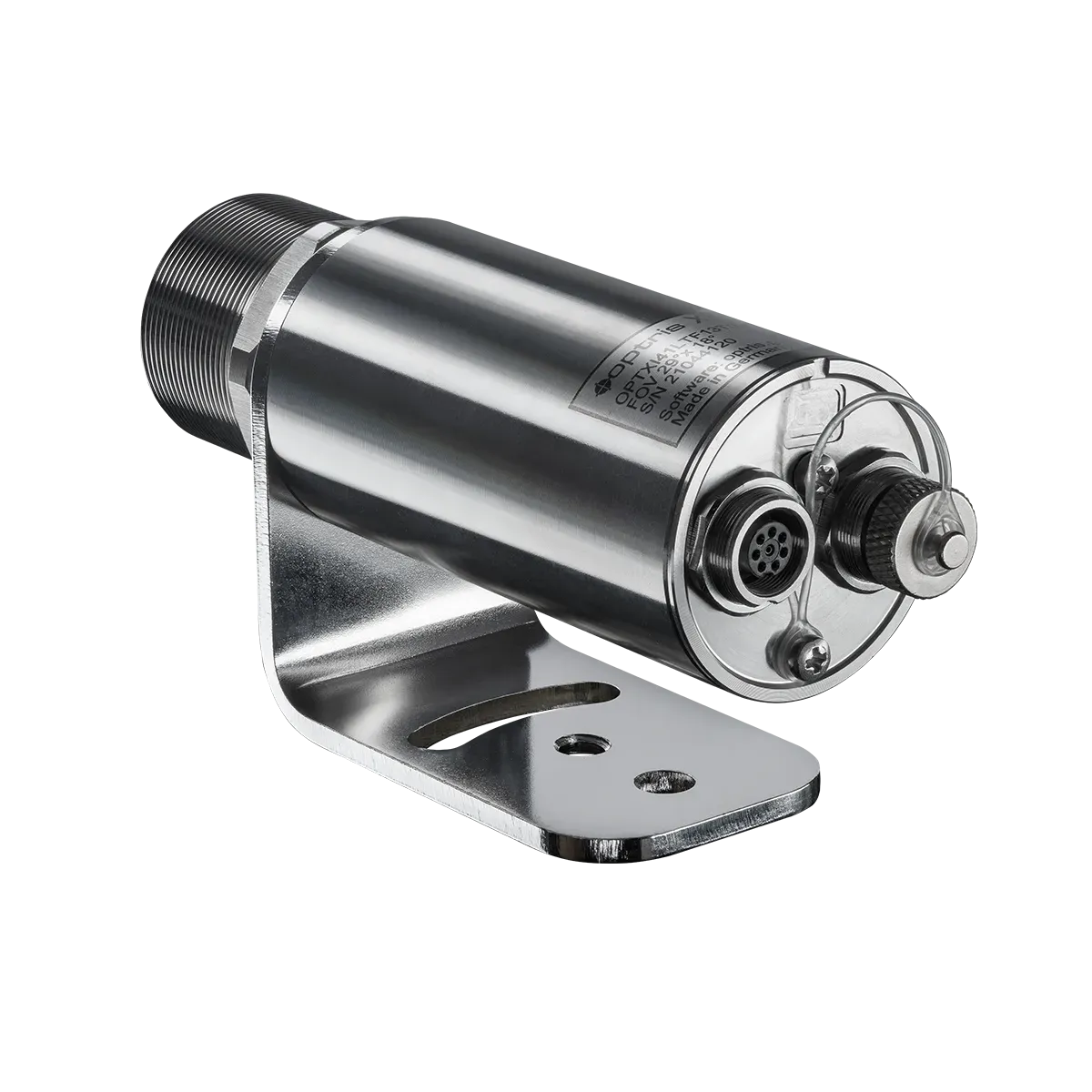

The Xi410 LT ETH is designed for industrial environments, featuring a compact, waterproof housing for stationary installations.
The thermal camera connects via Ethernet at 25 Hz and USB at 4 Hz, and supports autonomous smart operation for direct integration into control systems. Features such as automatic hotspot detection, direct analog output, and compatibility with major industrial fieldbus systems support interconnectivity. This offers the possibility of performing thermographic analysis directly in the thermal imaging camera. An additional 1.5 Hz mode facilitates machine integration for streaming temperature data. Autonomous alarms reduce computer dependency and network complexity.
Accessories extend the thermal imager’s capabilities: water cooling raises the operating temperature to 250 °C, while air purges keep optics clean. Furthermore, installation options, adapters, and cables ensure flexible integration into complex systems.

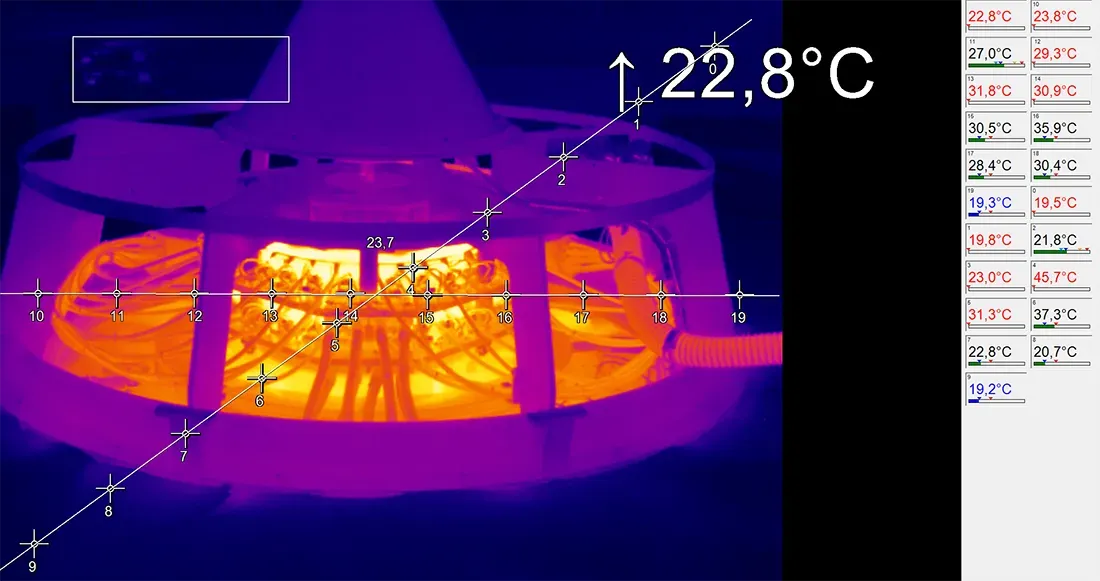

The included PIX Connect software platform offers advanced features, including line scanning, image merging, and comprehensive thermal data acquisition. Developer kits are available for system integrators to create custom software solutions.

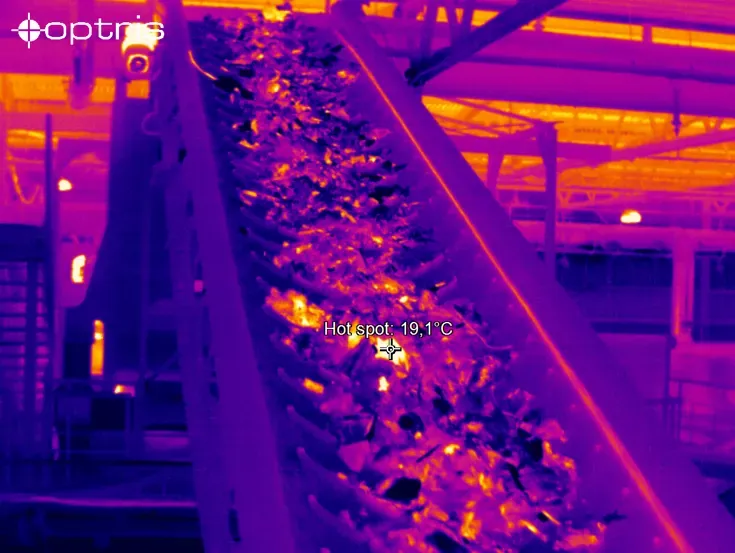

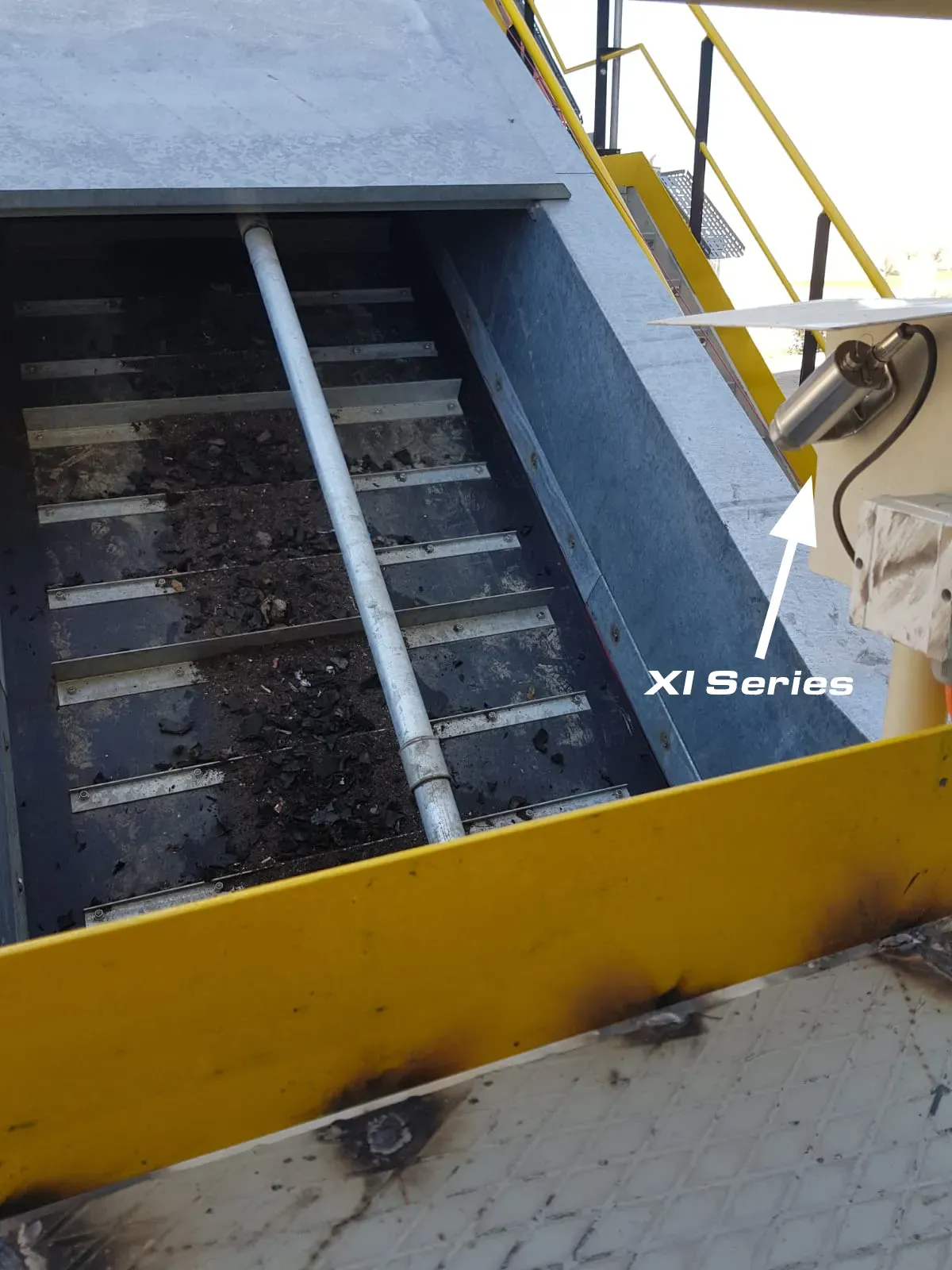

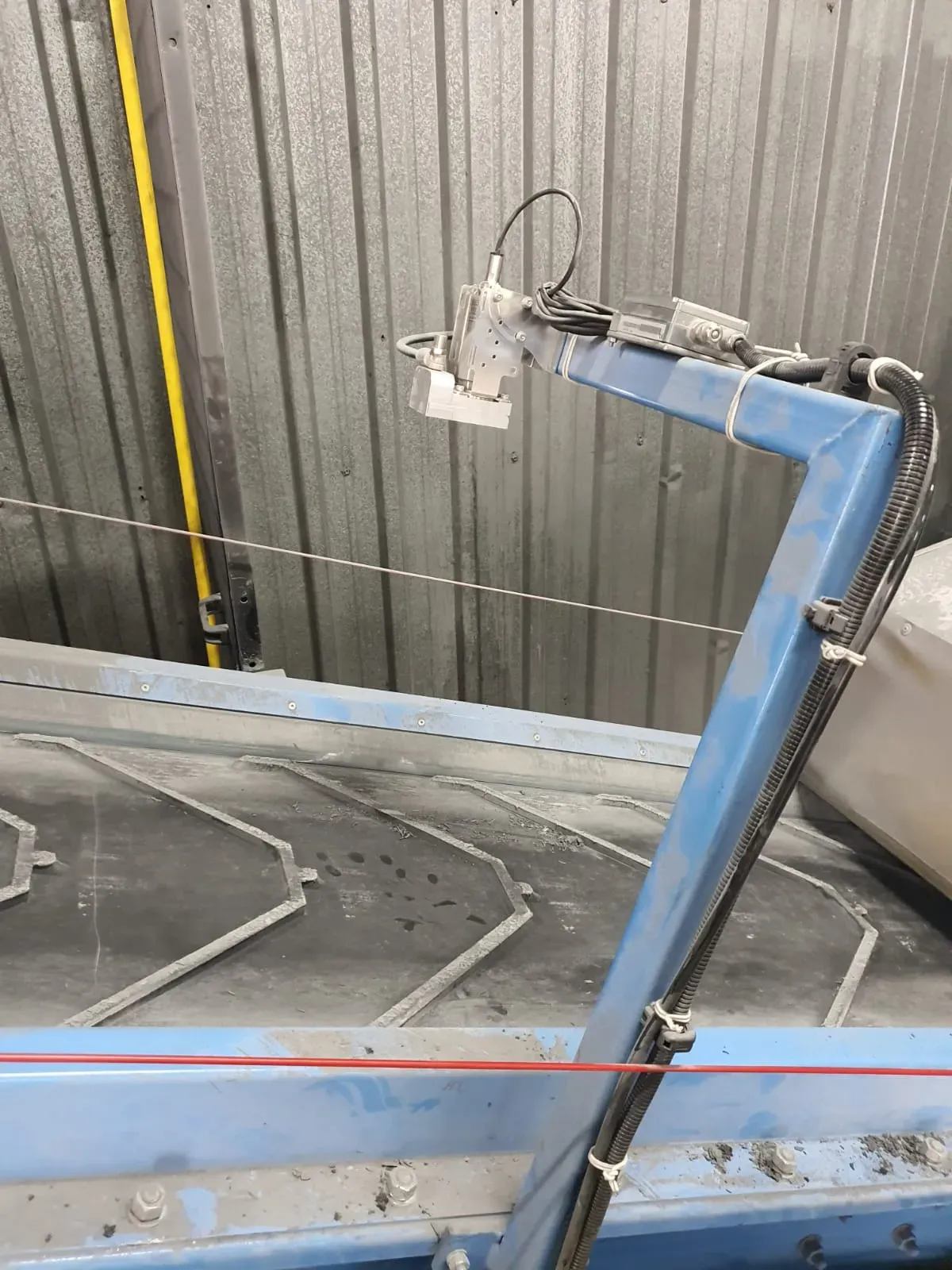

Designed and manufactured in Germany, the Xi410 LT ETH thermal camera enables early detection of fires and hotspots in material handling and storage applications. This helps identify risks before ignition. The smart thermal camera tracks thermal trends in plastics processing, electronics manufacturing, and general process engineering to reveal deviations. Additionally, it offers condition monitoring with temperature alarms and closed-loop control. Moreover, it supports safety interlocks and zone monitoring on conveyors, cabinets, and enclosures.
The Optris Xi 410 LT ETH thermal camera provides non-contact thermal imaging for industrial applications. Operating in the long-wavelength infrared range (8 to 14 µm), it delivers accurate surface temperature measurements and meets various measurement needs. The adjustable field of view and wide temperature range support multiple industrial monitoring scenarios.
Designed for industrial environments, this infrared camera offers mid-resolution imaging at 384 x 240 pixels and measures temperatures from –20°C to 1500°C. The high distance-to-spot-size ratio enables accurate readings at extended distances, surpassing the performance of contemporary pyrometers. The motorized focus allows precise remote adjustment for targeted measurements.
Optris imaging systems use uncooled forward-looking infrared (FLIR) technology for stationary applications. The uncooled two-dimensional detectors generate radiometric thermal images, offering a reliable and cost-effective alternative to line scanners. These thermal cameras autonomously seek thermal hot spots, improving efficiency in industrial monitoring and inspection. All Optris thermal cameras are designed and manufactured in Germany.
The Optris Xi410 LT ETH thermal camera is built to industrial standards for reliable operation in challenging environments. Its compact, waterproof design allows fixed or mounted installations, which benefits process engineering applications.
The Optris Xi410 LT ETH supports connectivity via Ethernet at 25 Hz and USB at 4 Hz. Autonomous operation enables integration into control systems without extensive programming. Key features include automatic spot detection, direct analog output, and compatibility with major industrial fieldbus systems, supporting OEM applications. The 1.5 Hz autonomous mode further streamlines integration into industrial machinery.
The Optris Xi410 LT ETH thermal camera includes advanced software functions such as line scanning and image merging, accessible through the PIX Connect license. PIX Connect offers a comprehensive platform for thermal image processing and data acquisition, supporting research applications. Developer kits are available for system integrators creating custom software solutions.
These features enable the infrared camera to provide accurate, reliable surface temperature measurements for applications such as quality control, condition monitoring, and research. The versatility of the Xi410 LT ETH thermal camera supports integration into various industrial environments and offers a cost-effective solution for fixed-install infrared imaging.

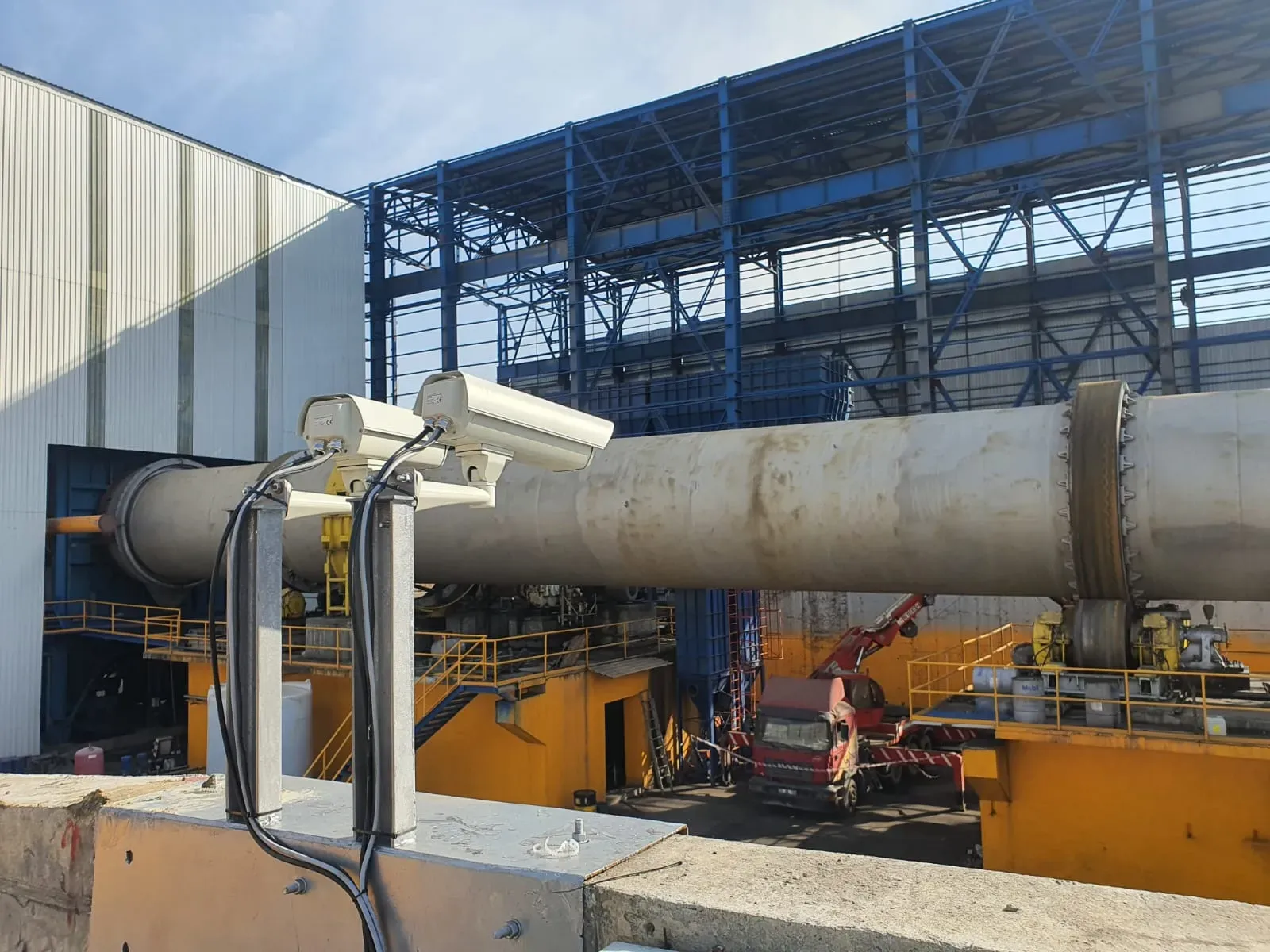

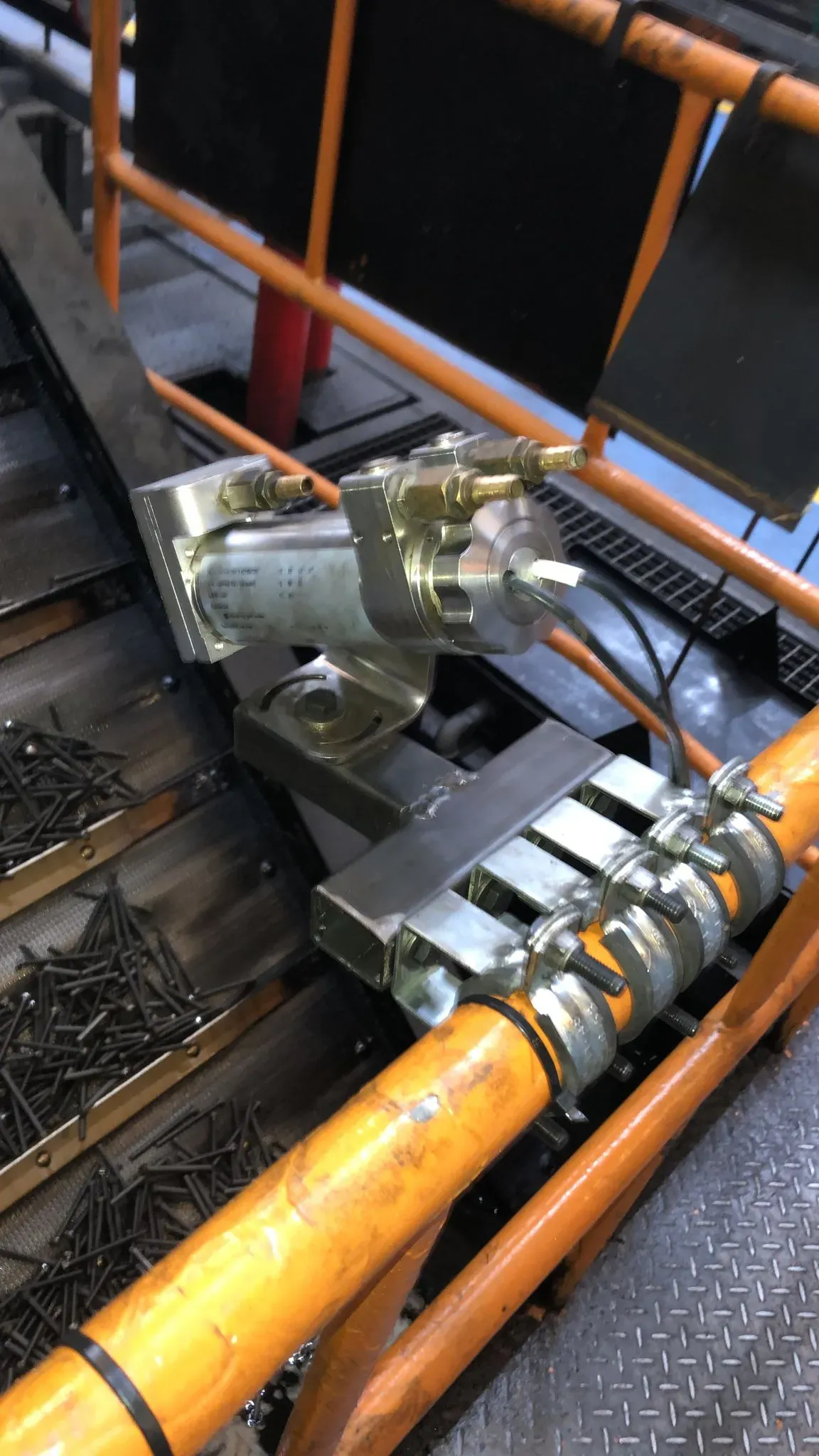

The Xi410 LT ETH thermal camera is compatible with accessories for harsh environments, such as water-cooled housings for operation up to 250°C and air purges to keep the lens clean in dusty conditions. Additional mounting, interface, and cable options are available.
| Detector Specifications | |||||||||||||||||||||||||||||||||||||||||
| Optical Resolution | 384 x 240 pixels | ||||||||||||||||||||||||||||||||||||||||
| Detector Type | Uncooled bolometer, 17 μm pixel pitch | ||||||||||||||||||||||||||||||||||||||||
| Spectral Range | 8 – 14 μm | ||||||||||||||||||||||||||||||||||||||||
| Frame Rate | Ethernet: 25 Hz | USB: 4 Hz | Autonomous: 1.5 Hz | ||||||||||||||||||||||||||||||||||||||||
| Thermal Sensitivity (NETD) | 60 mK | ||||||||||||||||||||||||||||||||||||||||
| Optical Options (Lens Comparison) | |||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||
| Measurement & Communication | |||||||||||||||||||||||||||||||||||||||||
| Object Temp. Range | –20…100°C, 0…250°C, (20) 150…900°C | Option: 200…1500°C | ||||||||||||||||||||||||||||||||||||||||
| System Accuracy | ±2 °C or ±2 % (whichever is greater) | ||||||||||||||||||||||||||||||||||||||||
| Interfaces | USB 2.0 / Ethernet (100 Mbit/s) | ||||||||||||||||||||||||||||||||||||||||
| Supported Protocols | USB, Ethernet, RS485, Serial, EtherNet/IP, ProfiNet, Modbus TCP | ||||||||||||||||||||||||||||||||||||||||
| Analog I/O | 1x Analog Out (0/4-20 mA) / 1x Input (Optically isolated) | ||||||||||||||||||||||||||||||||||||||||
| Focus Control | Motorized Focus | ||||||||||||||||||||||||||||||||||||||||
| General Specifications | |||||||||||||||||||||||||||||||||||||||||
| Size / Housing | Ø 36 mm x 100 mm, M30x1 / Stainless steel | ||||||||||||||||||||||||||||||||||||||||
| Protection Class | IP67, NEMA-4 | ||||||||||||||||||||||||||||||||||||||||
| Operating Temp. | 0 °C ... 50 °C | ||||||||||||||||||||||||||||||||||||||||
| Power Supply | USB / PoE / 5-30 VDC (Max 2.5 W) | ||||||||||||||||||||||||||||||||||||||||
| Weight | 216 – 220 g (depending on lens) | ||||||||||||||||||||||||||||||||||||||||

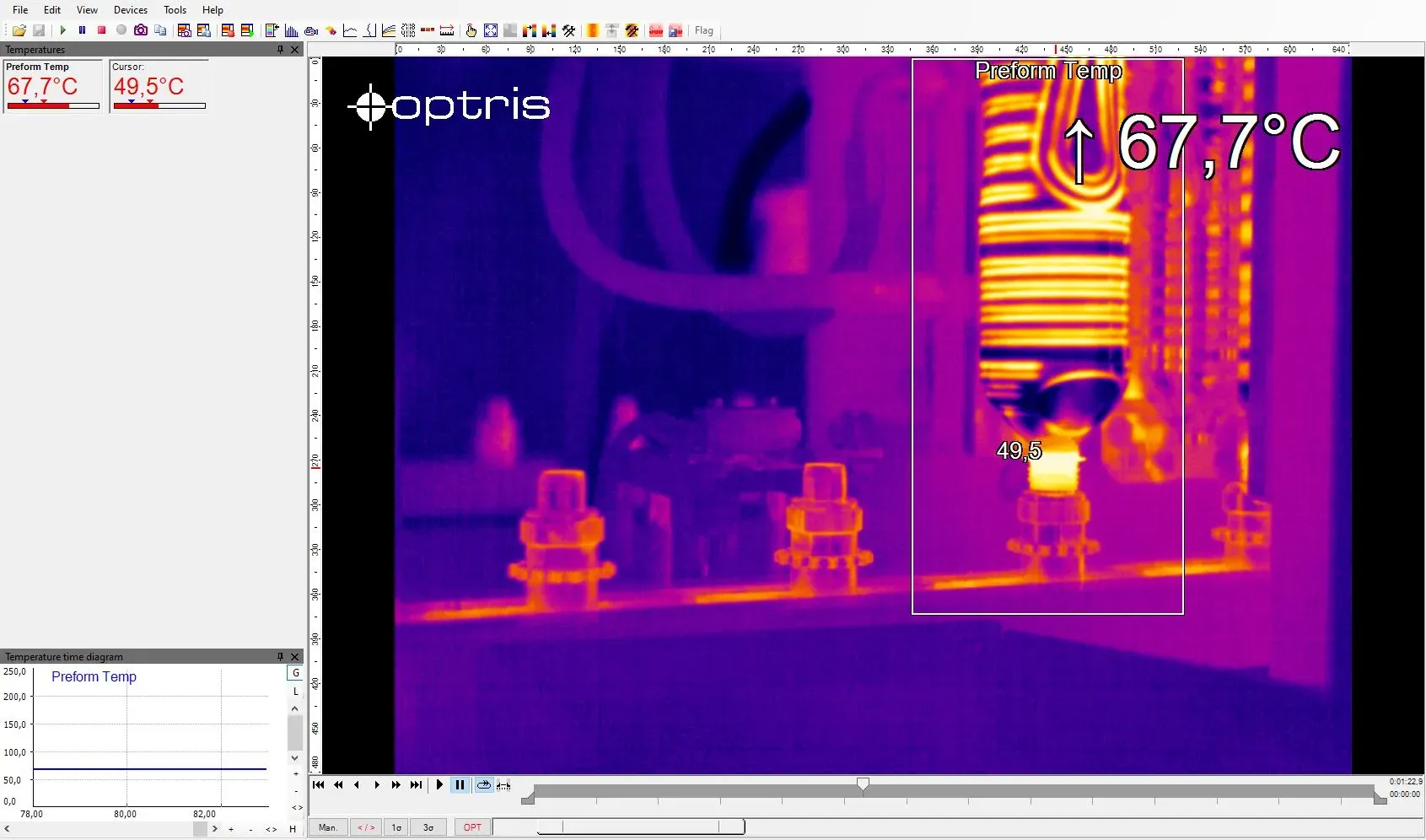

Thermography software optris PIX Connect is included and license-free.All infrared cameras are delivered with the thermography software optris PIX Connect, developed specifically for the extensive documentation and analysis of thermal images. The Windows-based PIX Connect software enables users to tailor the infrared cameras to meet specific requirements. It analyses live and recorded temperature data and triggers alarm signals for process integration.The key to leveraging the Optris infrared camera is a correct configuration. This includes detailed device-specific configurations such as frame rate, measurement range adjustments, external communication settings, and USB/Ethernet configurations. Moreover, PIX Connect facilitates firmware updates and the download of configuration files over the Internet.
Optris offers several different SDKs for our Xi and PI thermal imaging cameras. Depending on the operating platform, the infrared camera, the coding language, and the hardware platform, different software interfaces can be utilized:
The Optris IRmobile allows users to set up and commission an Optris infrared pyrometer or infrared camera with an Android smartphone or tablet. This tool becomes handy for commissioning and aligning the infrared camera’s field of view or adjusting the configuration. The app analyzes the connected infrared camera’s live infrared image stream with auto hot and cold spot detection. For pyrometers, a temperature-time diagram or the video signal is displayed. This app works on most Android devices running 5.0+ with a USB port supporting USB-OTG (On The Go).
