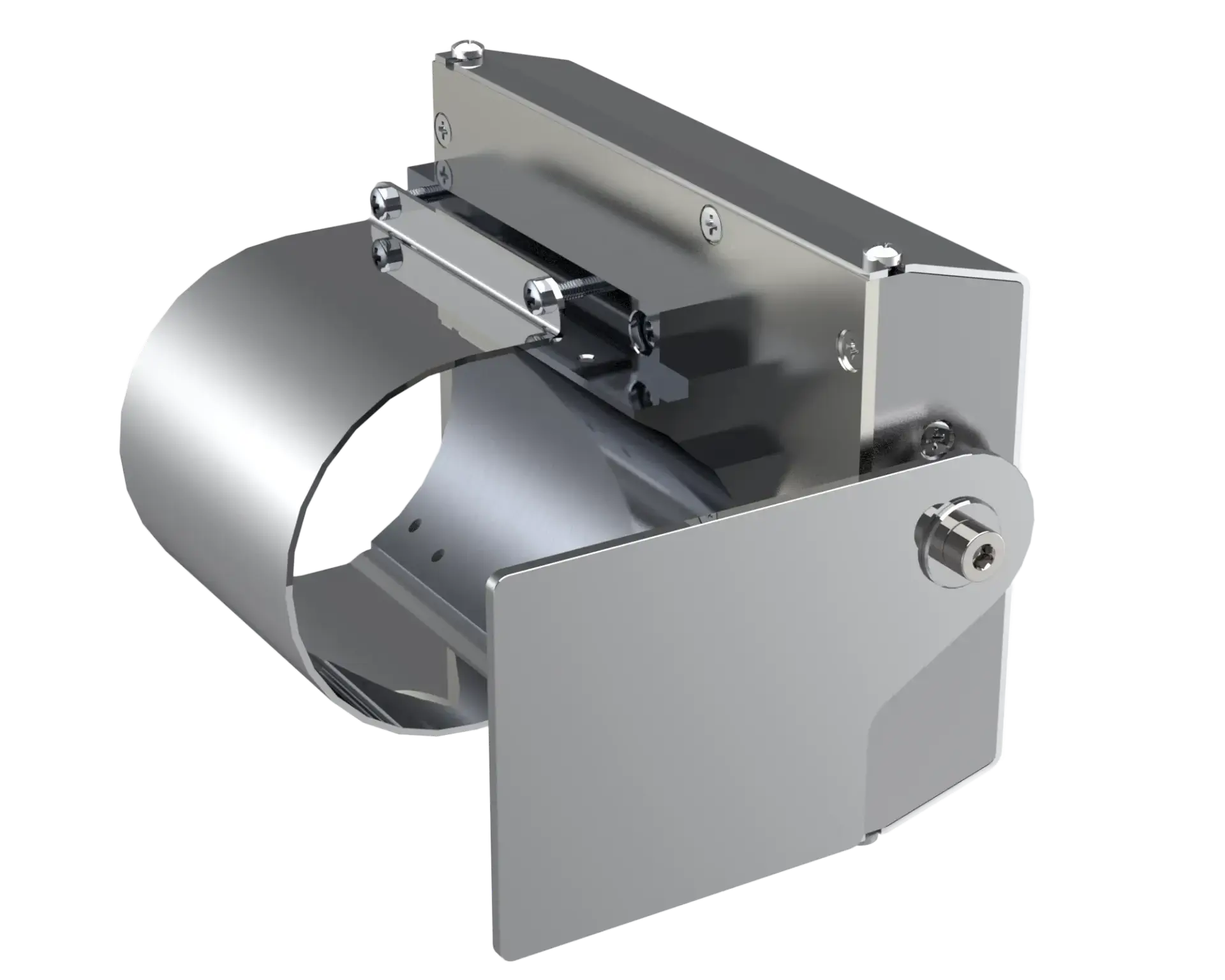

The shutter accessory for the PI series infrared cameras is designed to protect the camera optics by providing a mechanical shutter, that covers the lens in case of falling debris. This accessory features a servo motor-operated mechanism to open and close the shutter as needed. It has a fast-closing mode, allowing the shutter to close within 100 milliseconds, providing quick protection when necessary. The shutter includes a control box for connections, allowing integration with other systems, and can be combined with the Process Interface for automated control and triggering through software. Optional in combination with high-temperature cables and water-cooling accessories.
The shutter accessory for PI series infrared cameras protects optics with a servo motor-operated mechanism, closing within 100 milliseconds to shield against debris. It includes a control box for system integration and can be combined with the Process Interface for automated control. Optional high-temperature cables and water-cooling accessories are available for enhanced protection.
General Specifications
Operating temperature: -10°C … 50°C
Material: Stainless steel
Weight: 620g
Size: 100 x 80 x 80 mm
Electrical Specifications
Power: 12 … 24 VDC
SKU’s
ACPIS
ACPISCB5
ACPISCB10
