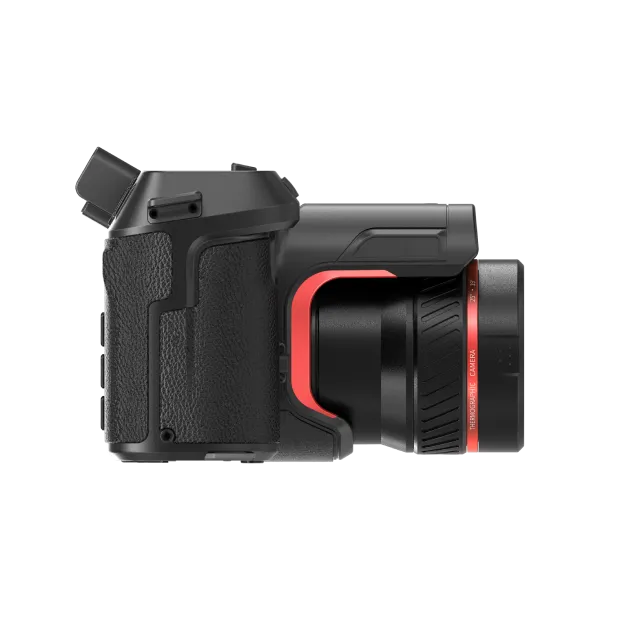

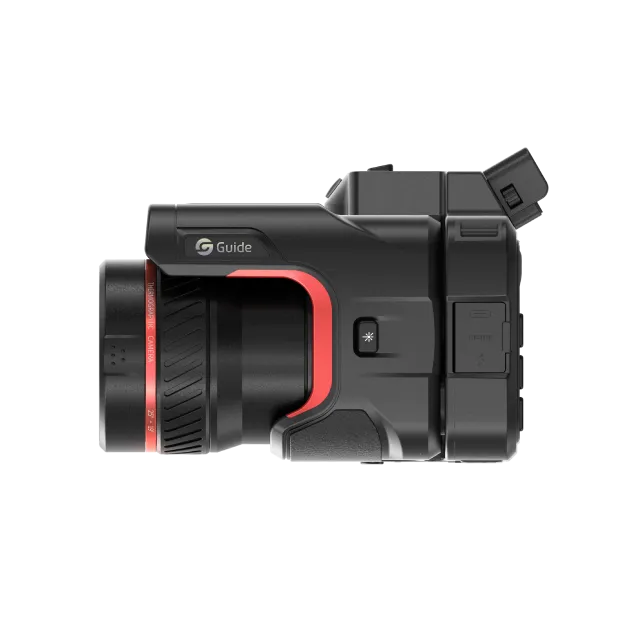

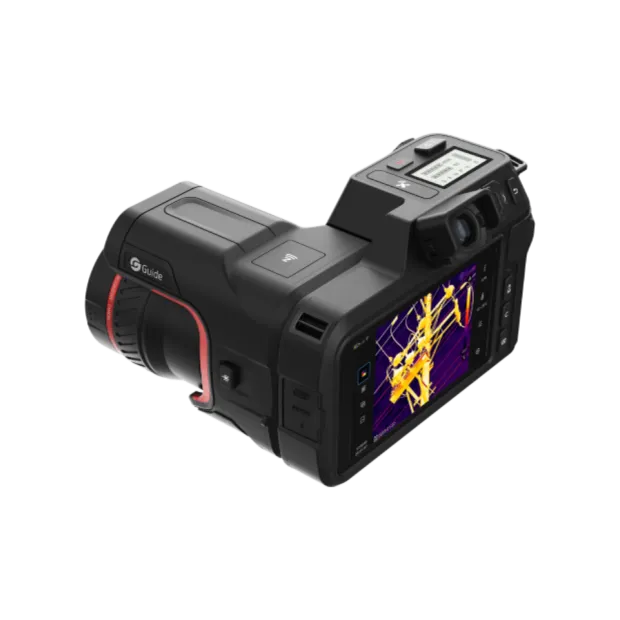

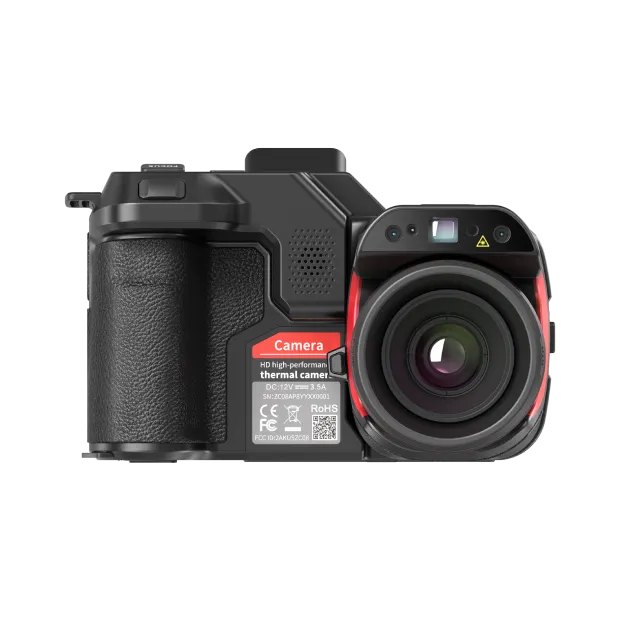

PT II series Flagship Edition Megapixel Thermal Imager of Guide Sensmart incorporates a new generation of self-developed uncooled infrared focal plane detector, achieving a resolution of up to 1280×1024. Its exclusive A/M-Focus manual/automatic hybrid focusing system delivers superior image quality and enhanced operational flexibility. The PT Series has undergone comprehensive upgrades in hardware configuration, software systems, and user experience, aiming to establish a new industry benchmark.
1280×1024 IR resolution
1-lens TwinView DFOV
Charges to 90% in 1 Hour
Up to 2500°C Temperature Range

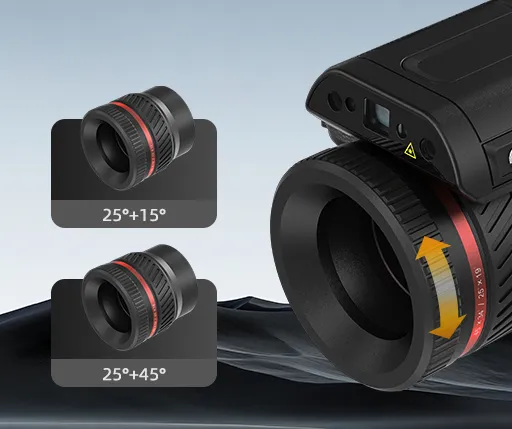

Switch seamlessly between long-range scanning and close-range temperature measurement without lens changes-efficiently tackling diverse scenarios with unmatched versatility.
50Hz frame rate captures thermal dynamics instantly, ensuring zero missed detections in industrial inspections.

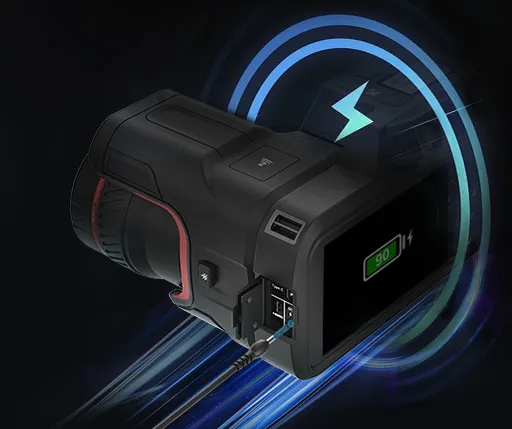

Charge to 90% in 1 hour, minimizing downtime for critical missions.

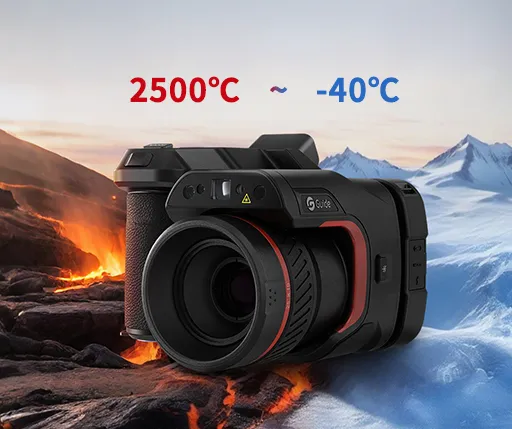

Covers -40°℃ to 2500℃, delivering accuracy from freezing cold to molten furnaces, ensuring error-free measurements in environments like kilns and reactors.

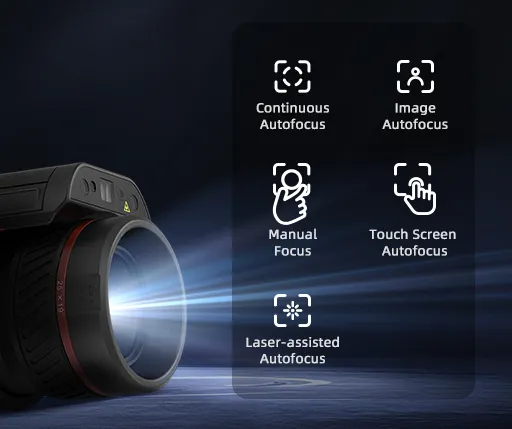

5 focus modes and rapid focus system boost success rates by 90% in complex scenarios.
AI-powered stitching improves large-area thermal scanning efficiency by 80% for substations, buildings, and more.
| Model | PT650 |
|---|---|
| Imaging and optics | |
| Detector type | VOx, 7.5 to 14μm |
| Infrared resolution | 1024×768@12μm |
| Super resolution | Yes, Upgrade to 2560×2048 |
| NETD | 25mK |
| Frame rate | 50Hz/9Hz |
| Focal length | 35mm |
| Field of view | 25°×19° |
| IFOV | 0.34mrad |
| Min. object distance | 0.3m |
| D:S | 2916:1 |
| Focusing mode | Manual / Automatic / Touch autofocus / Continuous autofocus |
| Digital zoom | 1.1x to 50x |
| Measurement and analysis | |
| Measurement range | Support auto-switching: -40°C to 150°C, 0°C to 800°C, Optional 400°C to 2500°C (High temperature lens is required) |
| Measurement accuracy | ±1°C or ±1%, whichever is greater |
| Analyzed target | 35 in total (Spot/Line/Area) |
| Alarm | Full screen temperature threshold alarm (image, voice, color and flash) |
| Others | Customized physical button, NFC connection, OTA update |
| Image display | |
| Display screen | 5.5" LCD, touch screen, 1920×1080 |
| Eyepiece | OLED screen, 1920×1080 |
| Image mode | IR, VIS, MIF, PIP |
| Color palettes | 15: White Hot, Iron Red, Arctic, Rainbow 2, Hot Iron, Rainbow 1, Fulgurite, Medical, Tint, Black Hot, Blue Hot, Sepia, Green Hot, Ice and Fire, Amber; Customized |
| Image adjustment | Level span mode: Automatic, Semi-automatic, Manual, Local dimming |
| Digital camera | Dual visible light, up to 13MP |
| Functions | |
| Laser | Laser (Indication, Ranging 0.1m to 35m) |
| Recording function | Photo (image stitching) and Video (infrared & visible light) |
| Cloud Services | Available |
| Storage and transmission | |
| Storage media | Built-in (64 GB) and external SD card (128 GB and up to 256 GB) |
| Image storage | JPG with temp info |
| Video storage | MP4 format (without temp info) can be used to record audio synchronously; Irgd (with temp info) |
| External interface | USB-C, DC (12V) , SD card slot, Micro HDMI, Tripod socket |
| WIFI | Yes, it can be connected to the mobile terminal for image and real-time video transmission |
| Cellular network | 5G module (optional) |
| Bluetooth | Bluetooth 5.0, support image transmission (only for Android) |
| Power system | |
| Battery type | Lithium-ion rechargeable battery |
| Operating time | 3.5 hours |
| Environmental parameters | |
| Working temperature | -20°C to 50°C |
| IP rating | IP54 |
| Physical parameters | |
| Hardware | Illuminator, Microphone, Speaker, Electronic Compass, GPS, Status screen |
| Weight | 1.86kg (with standard lens and battery) |
| Size | 191×128×170mm |
| Software kit | PC: ThermoTools; Mobile: FocusIR (iOS/Android) |
| Standard | A device (with lens), Lens front and back cover, Lithium-ion battery (2 pcs), Desktop charger, Power adapter, Adapter plug, USB-A to USB-C cable, USB-C to Ethernet Adapter, Micro HDMI to HDMI cable, SD card (128 GB), Wrist strap, Shoulder strap, Safety box, Carrying bag, Quick Start Guide, Inspection Report, Calibration Certificate |
| Options | Battery, Carrying bag, Tripod, Bluetooth earphone, Docking station, Laboratory support frame; Optional lenses: Wide-angle (45°), Medium Telephoto (15°), Telephoto (7°), TwinView DFOV (25°+15° / 25°+45°), High-temperature, Macro |
* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
