The Profibus DP interface is a robust fieldbus communication protocol used in automation technology for efficient data exchange between devices. Operating on the RS-485 standard, it supports high-speed data transfer up to 12 Mbps and can accommodate up to 126 devices, including controllers (masters) and field devices (slaves). The Profibus DP interface for CT pyrometers allows for cyclic and acyclic communication, ensuring real-time control and diagnostics. It uses a GSD (Generic Station Description) file to define device characteristics and supports functionalities like synchronization, parameterization, and alarm handling. The interface is crucial in various industrial applications, providing reliable and scalable solutions for complex automation systems

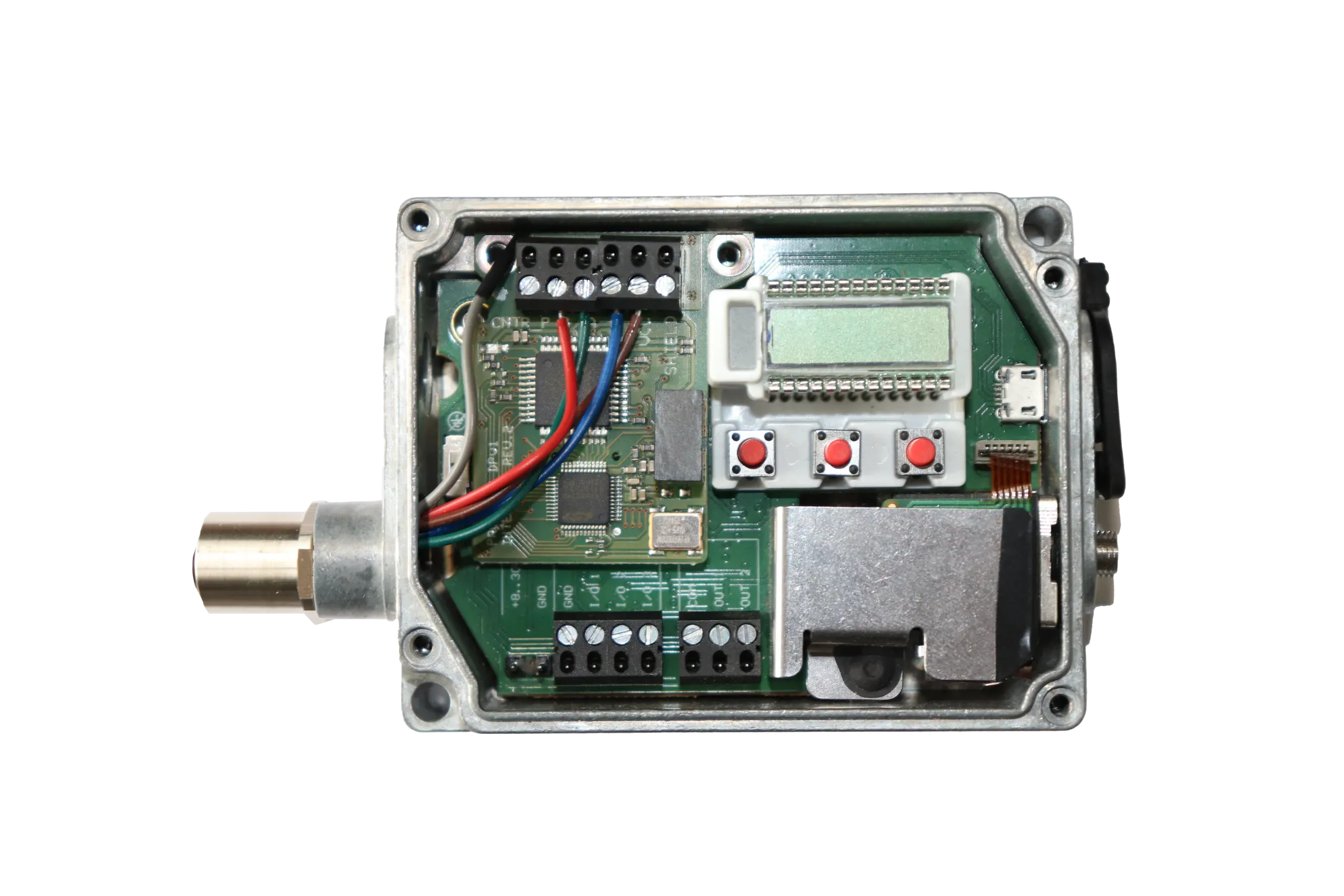

The Profibus DP interface is a robust fieldbus protocol used in automation for efficient data exchange. Operating on the RS-485 standard, it supports high-speed transfer up to 12 Mbps and can connect up to 126 devices. The Profibus DP interface ensures seamless integration with Optris CT, CTlaser, or CTratio pyrometers, allowing real-time control and diagnostics. It supports synchronization, parameterization, and alarm handling, ideal for complex industrial applications.
General Specifications
Environmental rating: IP67 (Nema-4) (when installed)
Operating temperature: -20 °C to 80 °C
Relative humidity: 10 – 95 %, non-condensing

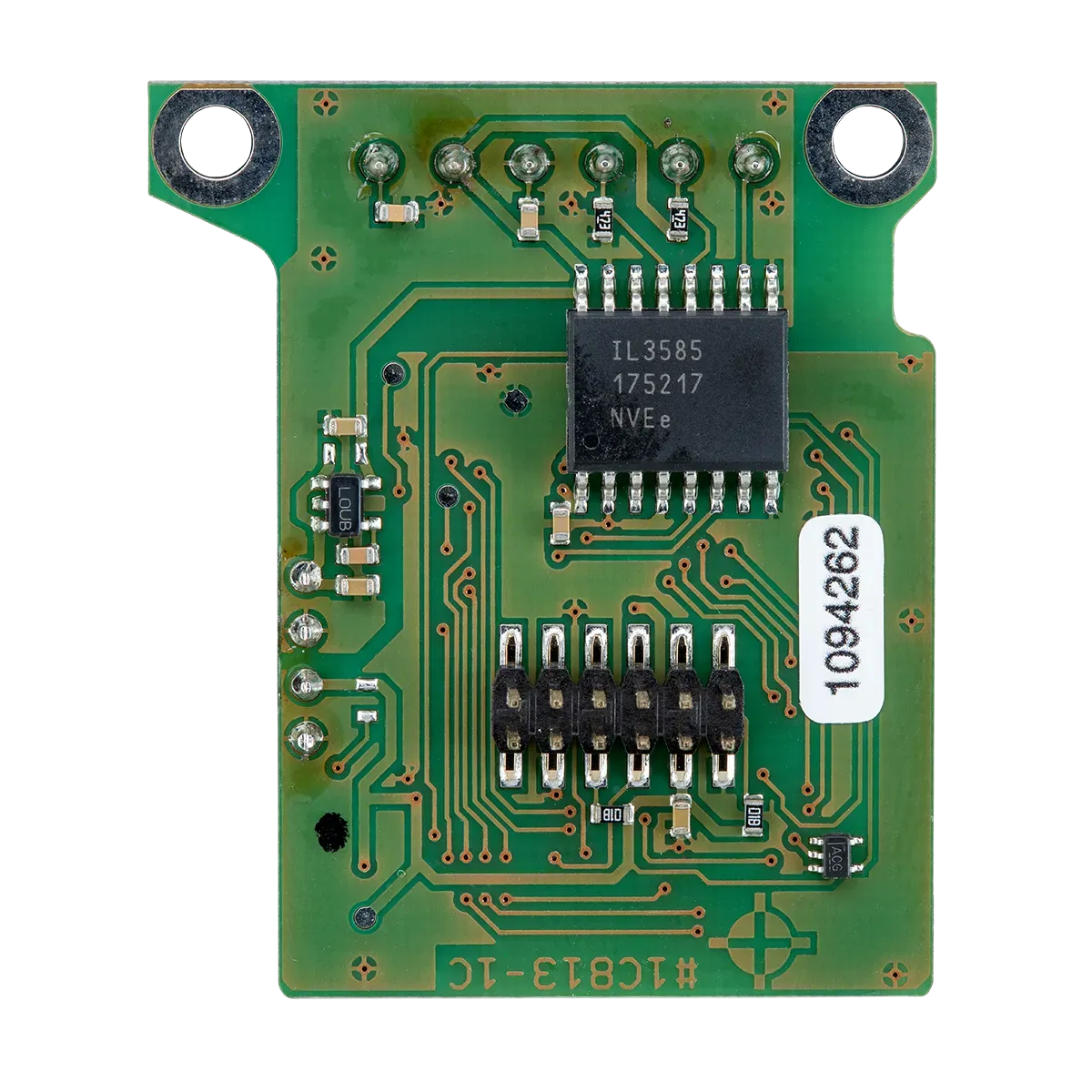

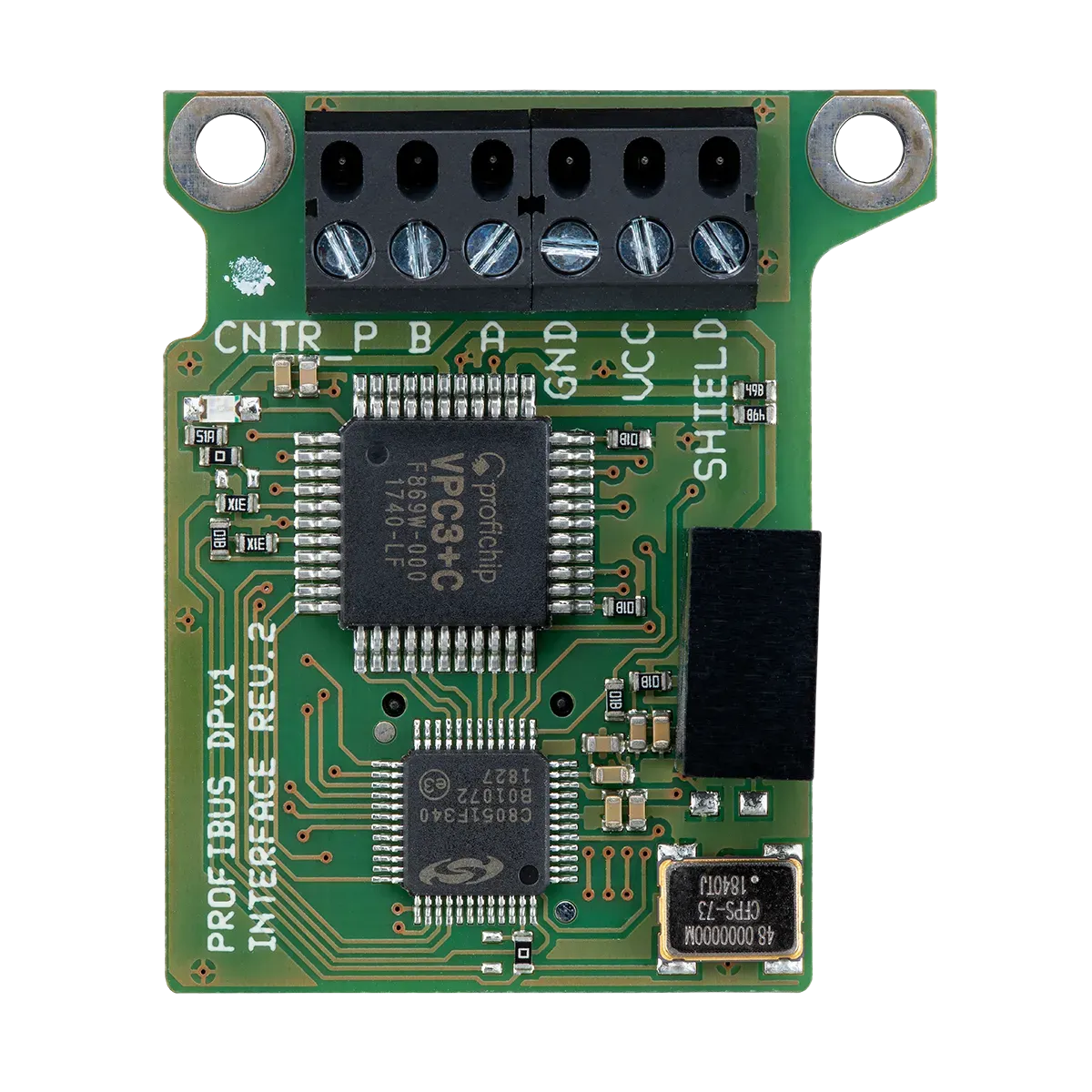

Interface Board Characteristics
Port Protocol: Profibus DP
Transfer speed: up to 12Mbit/s

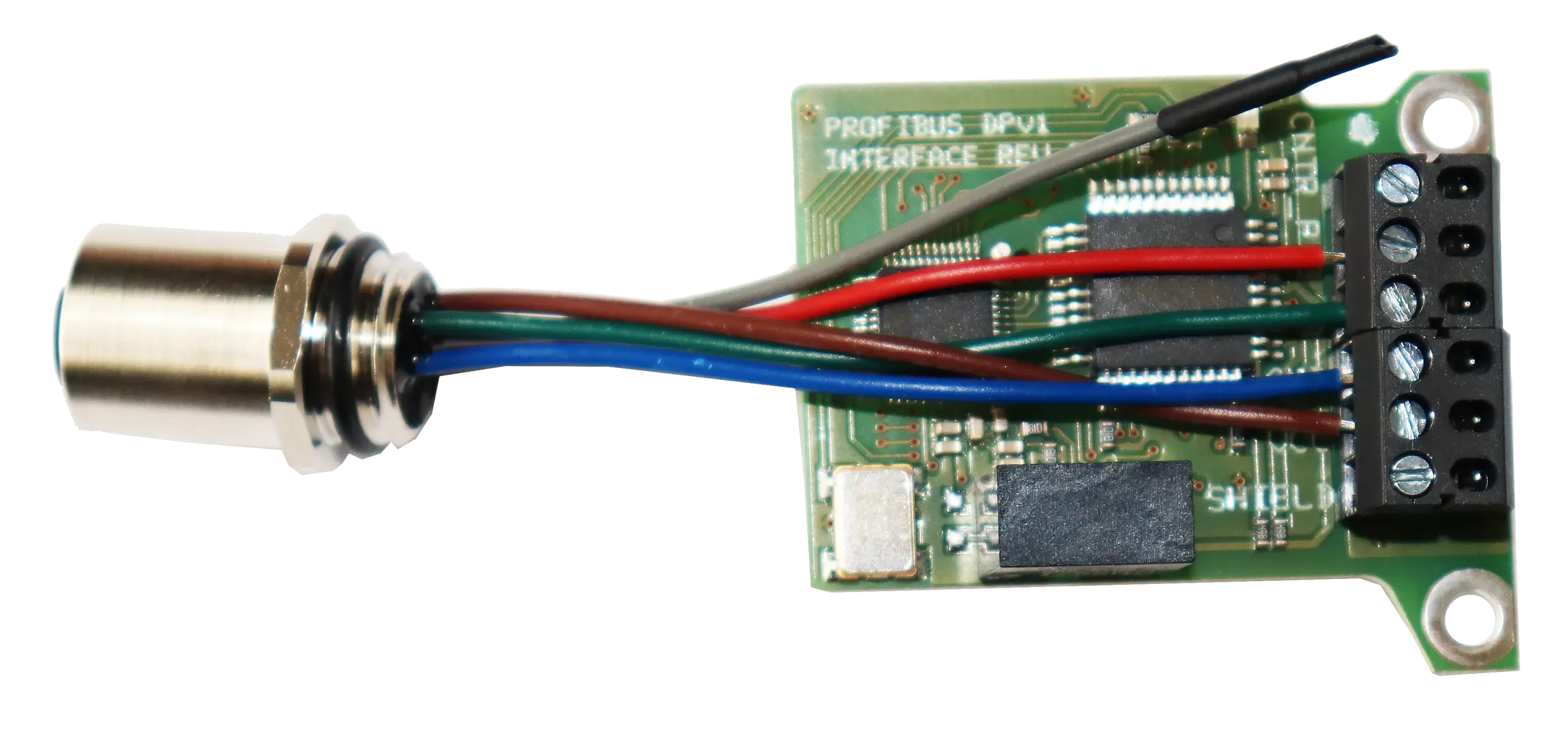

Connector: 1 x M12 Profibus socket 5 pin B-coded
Physical layer: RS485 (2-wire), line, Master/ slave system
Maximal number of devices in network: Up to 126 slave devices
