PR II series dual-purpose thermal imaging camera for rescue and detection empowers a new perspective for firefighters. The product is certified as Intrinsic Safety Explosion-Proof. It combines high resolution, a large display screen, multiple scene modes, temperature analysis functions, and a strong protection rating, which can break through the limitations of harsh environments such as high temperatures, high humidity, and thick smoke in fire scenes to help firefighters see the surrounding environment quickly and clearly, locate the fire and search for trapped individuals more accurately, providing users with more efficient and safe fire visualization solutions.
640×480@12μm Infrared Resolution
-40°C~2000°C Ultra-Wide Temp.Range
60Hz IR Frame Rate
0.5m~∞ Detection Range
PR II Series features a focus-free design for quick, sharp thermal imaging without manual adjustments. Its 60Hz high frame rate ensures smooth, stable imaging essential for real-time fire scene analysis. The 4.3-inch anti-glare LCD screen allows users to identify targets even in harsh glare or smoke-filled environments, enhancing accuracy.
Accuracy: ±2°C or ±2%, whichever is greater
Measurement Range: Support auto-switching, -40°C~150°C, 0°C~650°C, 500°C~2000°C (Aperture is required)

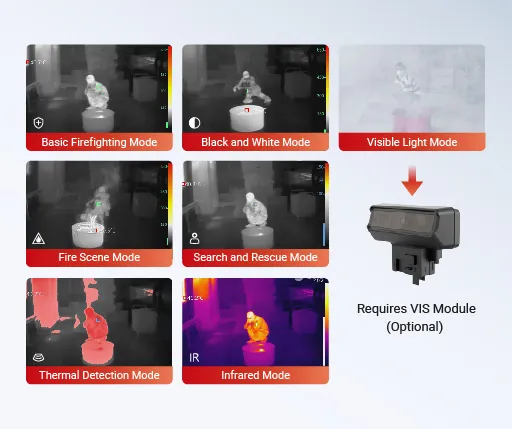

Engineered to tackle diverse fireground challenges, scene-specific imaging presets enhance situational awareness and support quick, informed decisions for more accurate localization of the fire and persons in danger.

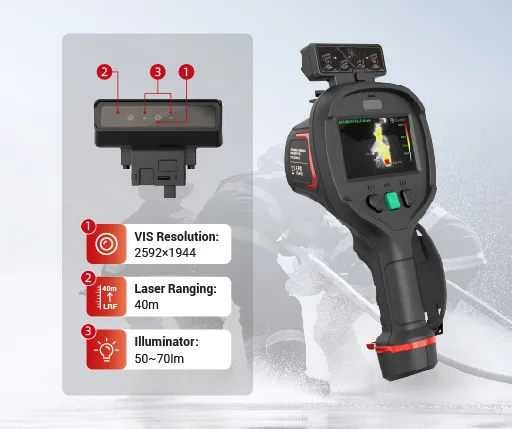

Equipped with a multi-functional VIS module, PR II Series assists in visible-light observation and auxiliary lighting, but also precisely gauge the target distance through laser rangefinder, enhancing operational efficiency in nighttime or low-light scenarios.

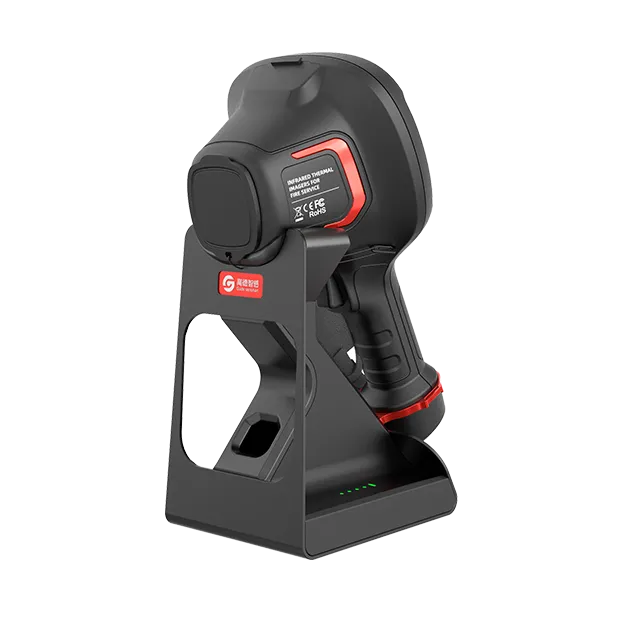

Multi-function desktop charger…
PR II Series is designed to withstand extreme fireground conditions, such as high temperature, high humidity, dense smoke, and other harsh environmental factors. It can continue to work for up to 5 minutes at 260℃.
| Model | PR610 |
|---|---|
| Imaging and optics | |
| Detector type | VOx, 7.5 to 14μm |
| Infrared resolution | 640×480@12μm |
| NETD | 45mK |
| Frame rate | 60Hz/9Hz |
| Focal length | 9mm |
| Field of view | 50°×37° |
| IFOV | 1.25mrad |
| Min. object distance | 0.5m |
| D:S | 800:1 |
| Focusing mode | Focus-free |
| Digital zoom | 2x/4x/8x |
| Measurement and analysis | |
| Measurement range | Support auto-switching: -40°C to 150°C, 0°C to 650°C, Optional 500°C to 2000°C (Aperture is required) |
| Measurement accuracy | ±2°C or ±2%, whichever is greater |
| Analyzed target | Three spots: Center, Maximum temperature, Minimum temperature; Three Fixed Areas: Small, Medium, Large (Alternative) |
| Alarm | Full screen temperature threshold alarm (Vibration, Screen flicker, Buzzer) |
| Others | OTA update |
| Image display | |
| Display screen | 4.3" LCD, 800×480 |
| Image mode | 6 Modes: Basic fire fighting, Black and white, Fire scene, Search and rescue, Thermal detection, Standard |
| Color palettes | 8: Black Hot, White Hot, Iron Red, Arctic, Hot Iron, Rainbow 1, Fulgurite, Tint (Alternative palettes are supported only in Standard mode) |
| Image adjustment | Level span mode: Automatic |
| Functions | |
| Recording function | Photo and Video |
| Storage and transmission | |
| Storage media | Built-in storage (128 GB) |
| Image storage | JPG with temp info |
| Video storage | MP4 format (without temp info); Irgd (with temp info), up to 30 Hz (optional) for temperature analysis |
| External interface | USB-C, Micro HDMI, Tripod socket |
| WIFI | Yes, it can be connected to the mobile terminal for image and real-time video transmission |
| Power system | |
| Battery type | Lithium-ion rechargeable battery |
| Operating time | 4 hours |
| Environmental parameters | |
| Working temperature | General Working temperature range: -10°C to +50°C; Specific Working temperature ranges: 80°C: 30 minutes, 120°C: 10 minutes, 260°C: 5 minutes |
| IP rating | IP67 |
| Drop | 2m drop test |
| Physical parameters | |
| Hardware | WIFI, Speaker |
| Weight | 1.3kg (with battery) |
| Size | 296×122×153mm |
| Software kit | PC: ThermoTools; Mobile: Thermography (iOS/Android) |
| Standard | A device (with lens), Lens cover, Aperture, Lithium-ion battery (3 pcs), Desktop charger, Power adapter, Adapter plug, USB-C to USB-C Cable, USB-A to USB-C Cable, Micro HDMI to HDMI Cable, Hand strap, Neck strap, Telescopic buckle, Lanyard, Carrying bag, Safety box, Quick Start Guide, Warranty card, Inspection report, Calibration certificate |
| Options | Digital camera module, Battery, Tripod |
* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
