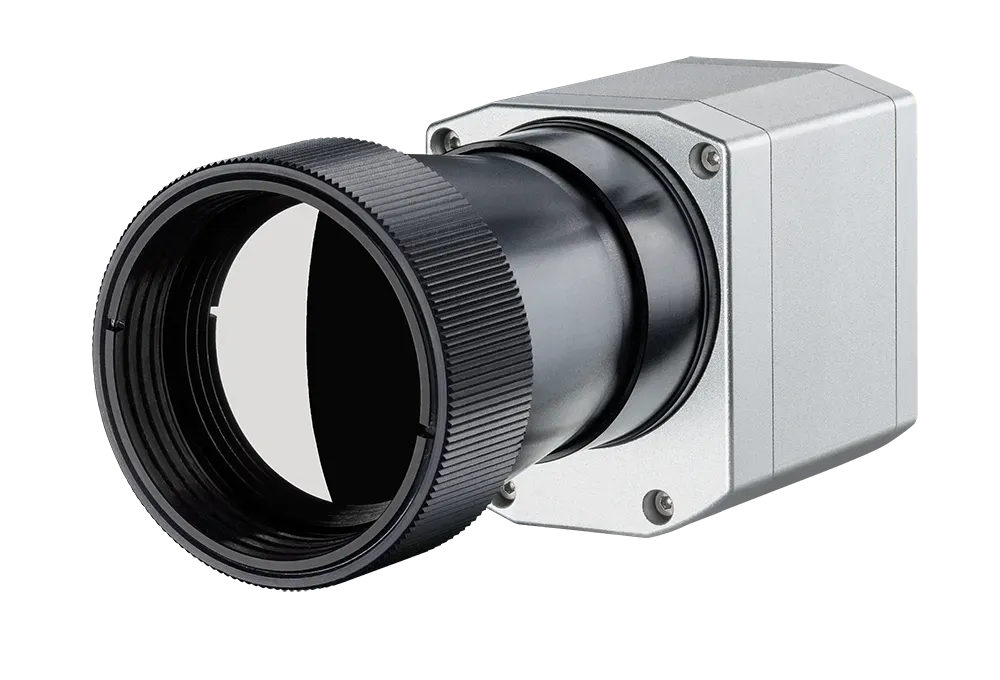

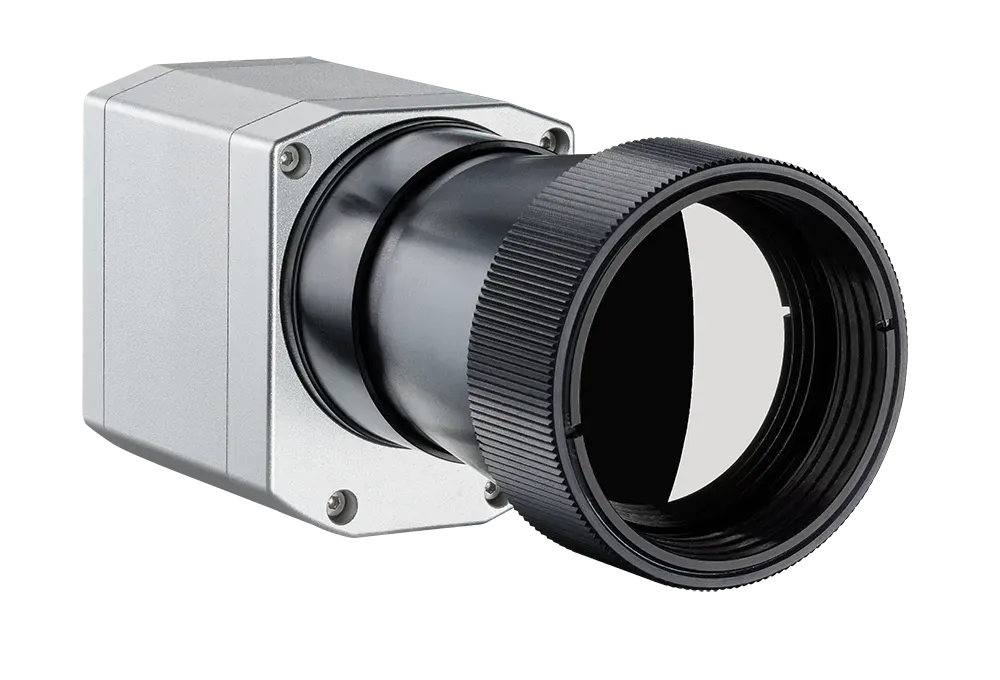

PI 640i Microscope Accessory Kit

Infrared Microscope Accessory Kit for PI 640i Infrared Camera

The Optris microscope optics kit is an accessory for customers with the PI 640i infrared camera, who have another interchangeable optic. Designed for the PI 640i thermal imager, this optimized microscope lens helps analyze thermals of electronic boards and small chip-level components, reaching resolutions as fine as 28 μm. The high-performance thermal imager supports the VGA resolution of the infrared camera. This setup offers high sensitivity and minimal thermal noise, enabling precise measurements of the smallest targets. The kit allows for hands-free operation, enabling simultaneous testing and radiometric measurement of the electronics, with an adjustable distance between the measurement object and the camera ranging from 80 to 100mm. The enhanced capabilities ensure effective and precise functional testing of electronic products.

  • Analysis of small chip-level components down to 28 μm
  • Spectral range: 8 to 14 µm
  • For PI 640i infrared camera
  • Exchangeable, focusable optics

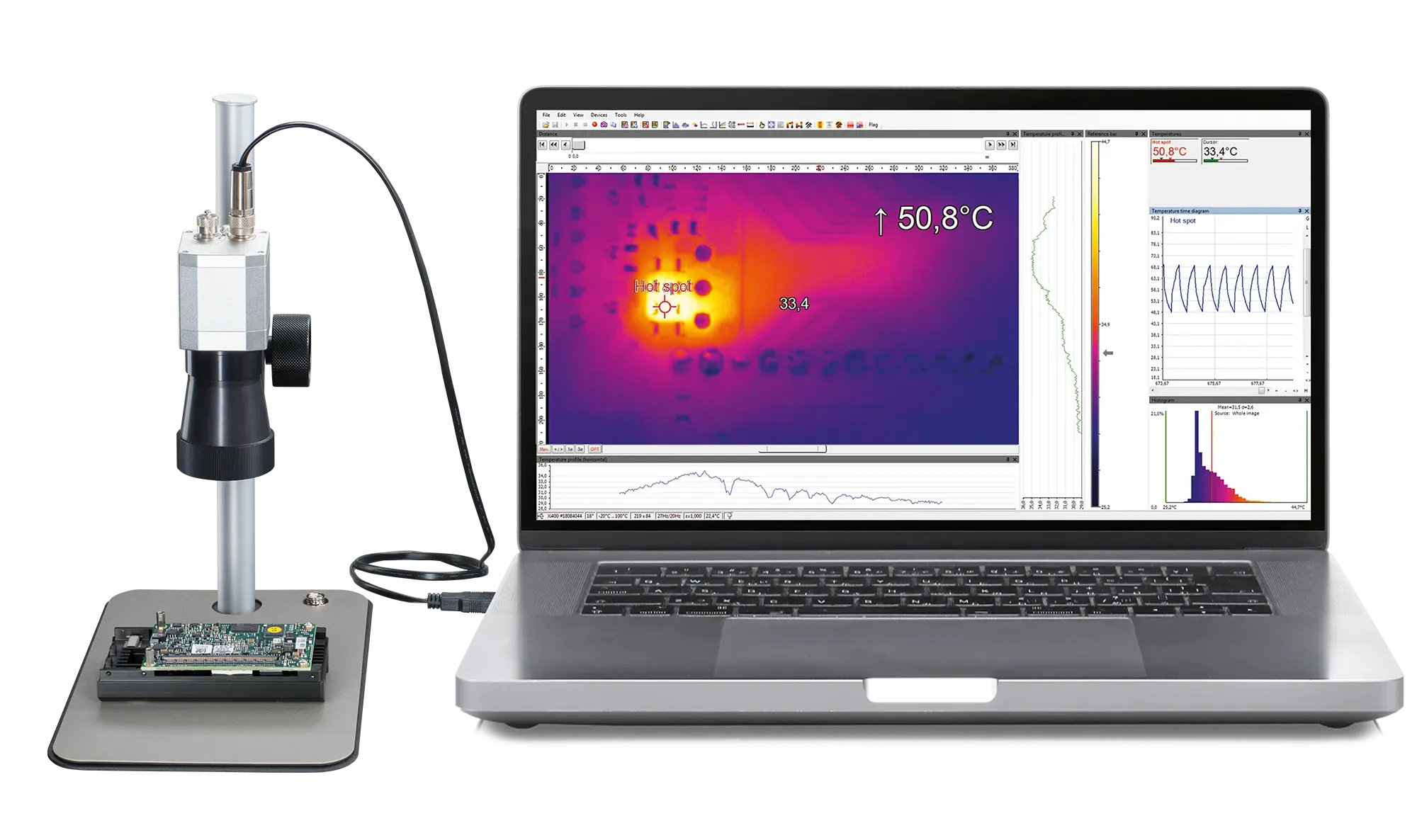

  • Microscope stand included for hands-free simultaneous operation/testing

The Optris Microscope optics is an accessory for customers with the PI 640i infrared camera and another interchangeable optic. This microscope optic enhances the PI 640i’s capability to thermally analyze entire circuit boards and detailed macro shots of individual components. Its high-quality thermal and geometric resolution ensures effective and precise functional testing of electronic products.

Specification



  •
  •
  •
  •



  •
  •
  •
  •
  •
  •



  •
  •
  •
  •
  •
  •



  •
Downloads

























FAQs



Scope of Supply

Thermography software optris PIX Connect is included and license-free.All infrared cameras are delivered with the thermography software optris PIX Connect, developed specifically for the extensive documentation and analysis of thermal images. The Windows-based PIX Connect software enables users to tailor the infrared cameras to meet specific requirements. It analyses live and recorded temperature data and triggers alarm signals for process integration.The key to leveraging the Optris infrared camera is a correct configuration. This includes detailed device-specific configurations such as frame rate, measurement range adjustments, external communication settings, and USB/Ethernet configurations. Moreover, PIX Connect facilitates firmware updates and the download of configuration files over the Internet.Optris offers several different SDKs for our Xi and PI thermal imaging cameras. Depending on the operating platform, the infrared camera, the coding language, and the hardware platform, different software interfaces can be utilized:The Optris IRmobile allows users to set up and commission an Optris infrared pyrometer or infrared camera with an Android smartphone or tablet. This tool becomes handy for commissioning and aligning the infrared camera‘s field of view or adjusting the configuration. The app analyzes the connected infrared camera‘s live infrared image stream with auto hot and cold spot detection. For pyrometers, a temperature-time diagram or the video signal is displayed. This app works on most Android devices running 5.0+ with a USB port supporting USB-OTG (On The Go).

(c) 2026 OPTPI64ILTMO44AK Mic­roscope Accessory Kit for PI 640iSite by Crowd



General Specifications

  • Operating temperature range: 0…50°C
  • Storage temperature range: -40…70 °C
  • Relative humidity: 20 – 80 %, non-condensing
  • Dimensions: 300 x 220 x 150 mm

Optical Specifications

  • Field of view: 12°x 9°
  • Focal length: 44 mm
  • F Number: 1.1
  • Optical Resolution: 940:1
  • Minimum Distance to target: 80 – 100 mm
  • Interchangeable optics: Yes

Measurement Specifications

  • Object Measurement Range: -20…100°C, 0…250°C, 150…900°C
  • Accuracy: ±2 °C or ±2 %, whichever is greater
  • Thermal Sensitivity (NETD): 80mK
  • Smallest detectable Spot Size IFOV (1 pixel): 28 µm
  • Smallest measurable Spot Size MFOV: 85 µm
  • Measurement Field of View (MFOV): 3×3 pixels

SKU

  • OPTPI64ILTMO44AK

Thermography software optris PIX Connect is included and license-free.All infrared cameras are delivered with the thermography software optris PIX Connect, developed specifically for the extensive documentation and analysis of thermal images. The Windows-based PIX Connect software enables users to tailor the infrared cameras to meet specific requirements. It analyses live and recorded temperature data and triggers alarm signals for process integration.The key to leveraging the Optris infrared camera is a correct configuration. This includes detailed device-specific configurations such as frame rate, measurement range adjustments, external communication settings, and USB/Ethernet configurations. Moreover, PIX Connect facilitates firmware updates and the download of configuration files over the Internet.

Optris offers several different SDKs for our Xi and PI thermal imaging cameras. Depending on the operating platform, the infrared camera, the coding language, and the hardware platform, different software interfaces can be utilized:

The Optris IRmobile allows users to set up and commission an Optris infrared pyrometer or infrared camera with an Android smartphone or tablet. This tool becomes handy for commissioning and aligning the infrared camera‘s field of view or adjusting the configuration. The app analyzes the connected infrared camera‘s live infrared image stream with auto hot and cold spot detection. For pyrometers, a temperature-time diagram or the video signal is displayed. This app works on most Android devices running 5.0+ with a USB port supporting USB-OTG (On The Go).
