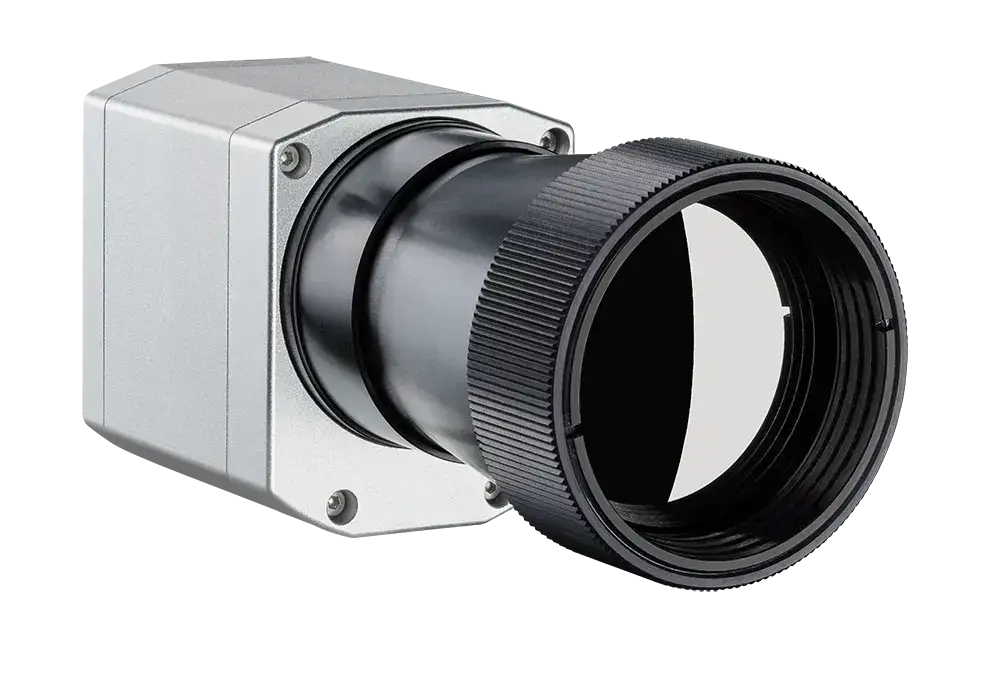

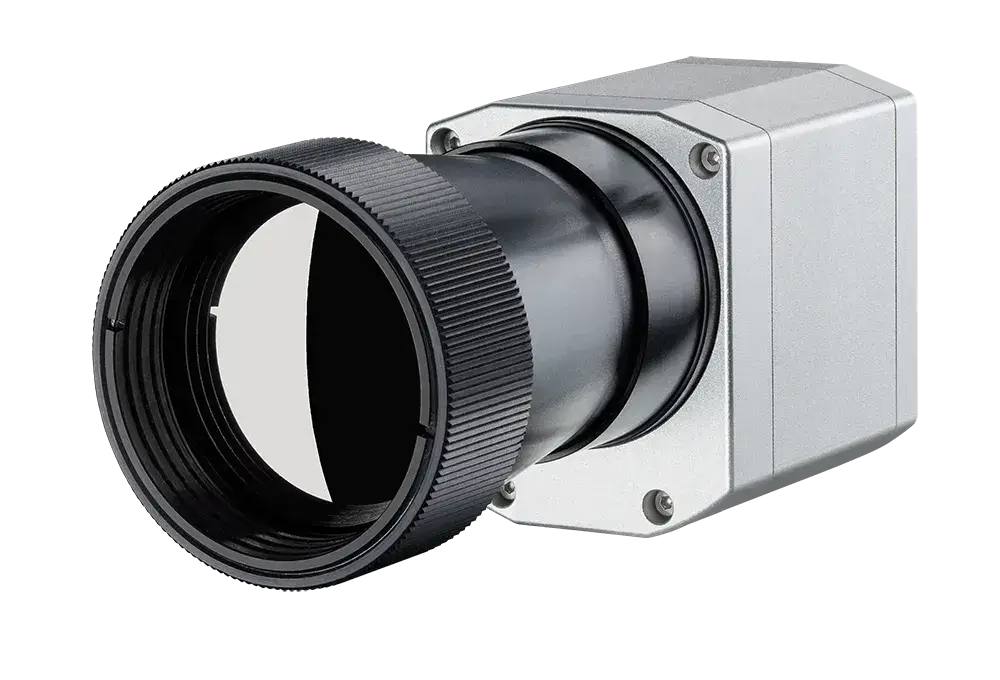

PI 640i Microscope Accessory Kit

Infrared Microscope Accessory Kit for PI 640i Infrared Camera

  • The Optris microscope optics kit is an accessory for customers with the PI 640i infrared camera, who have another interchangeable optic. Designed for the PI 640i thermal imager, this optimized microscope lens helps analyze thermals of electronic boards and small chip-level components, reaching resolutions as fine as 28 μm. The high-performance thermal imager supports the VGA resolution of the infrared camera. This setup offers high sensitivity and minimal thermal noise, enabling precise measurements of the smallest targets. The kit allows for hands-free operation, enabling simultaneous testing and radiometric measurement of the electronics, with an adjustable distance between the measurement object and the camera ranging from 80 to 100mm. The enhanced capabilities ensure effective and precise functional testing of electronic products.
      • Analysis of small chip-level components down to 28 μm
      • Spectral range: 8 to 14 µm
      • For PI 640i infrared camera
      • Exchangeable, focusable optics

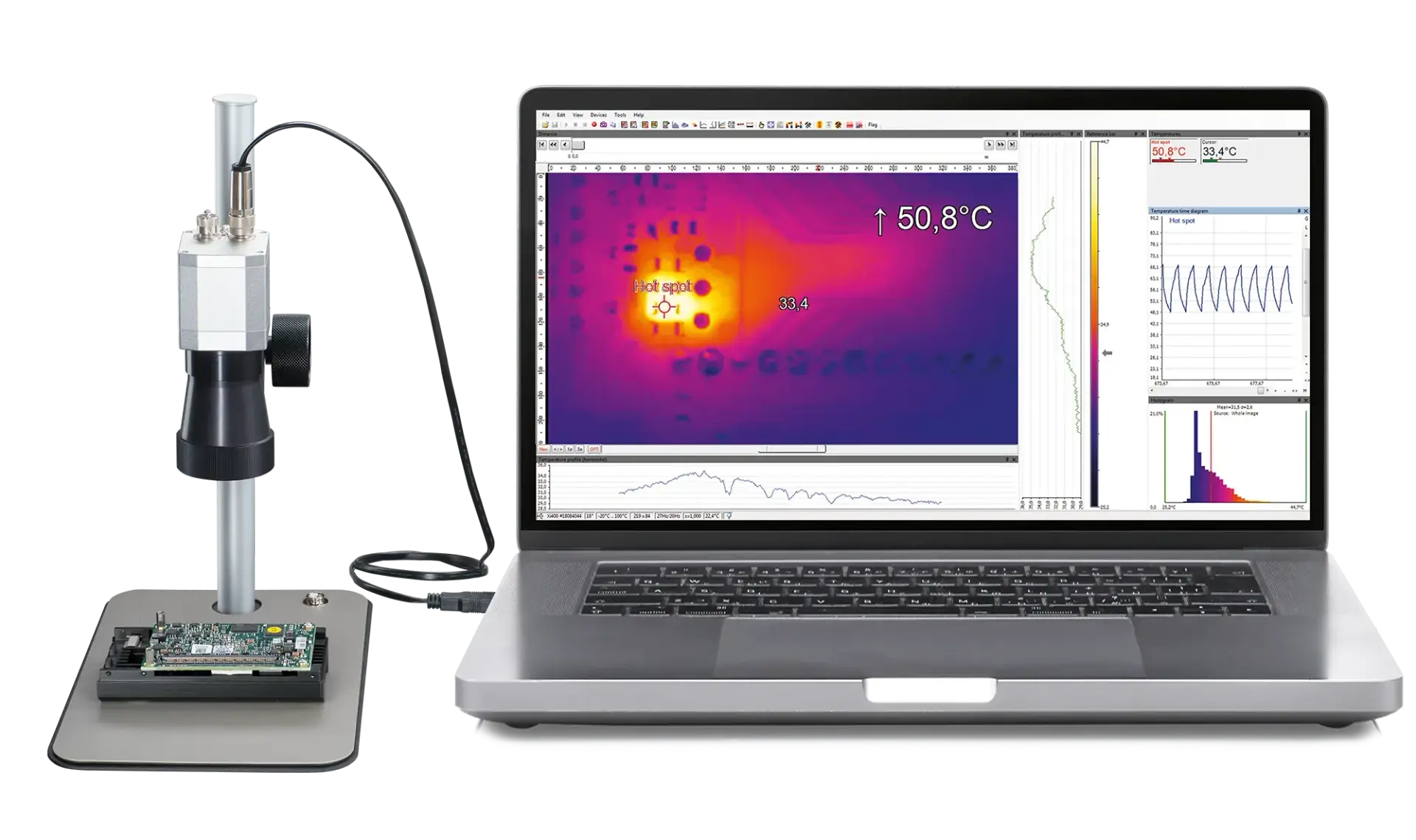

      • Microscope stand included for hands-free simultaneous operation/testing

The Optris Microscope optics is an accessory for customers with the PI 640i infrared camera and another interchangeable optic. This microscope optic enhances the PI 640i’s capability to thermally analyze entire circuit boards and detailed macro shots of individual components. Its high-quality thermal and geometric resolution ensures effective and precise functional testing of electronic products.

General Specifications

  • Operating temperature range: 0…50°C
  • Storage temperature range: -40…70 °C
  • Relative humidity: 20 – 80 %, non-condensing
  • Dimensions: 300 x 220 x 150 mm

Optical Specifications

  • Field of view: 12°x 9°
  • Focal length: 44 mm
  • F Number: 1.1
  • Optical Resolution: 940:1
  • Minimum Distance to target: 80 – 100 mm
  • Interchangeable optics: Yes

Measurement Specifications

  • Object Measurement Range: -20…100°C, 0…250°C, 150…900°C
  • Accuracy: ±2 °C or ±2 %, whichever is greater
  • Thermal Sensitivity (NETD): 80mK
  • Smallest detectable Spot Size IFOV (1 pixel): 28 µm
  • Smallest measurable Spot Size MFOV: 85 µm
  • Measurement Field of View (MFOV): 3×3 pixels

SKU

  • OPTPI64ILTMO44AK
  • Microscope optics
  • USB cable (1m)
  • Cable for output/input (1 m) incl. terminal block
  • Rugged outdoor transport case (IP67)
  • Microscope stand
  • Base plate with ESD pad
  • Software package optris PIX Connect
  • Quick Start Guide
  • OPTPI64ILTMO44AK
