Outdoor Protective Housing for PI and Xi Series

Robust and Rugged Outdoor Protective Housing for PI and Xi Series Infrared Cameras

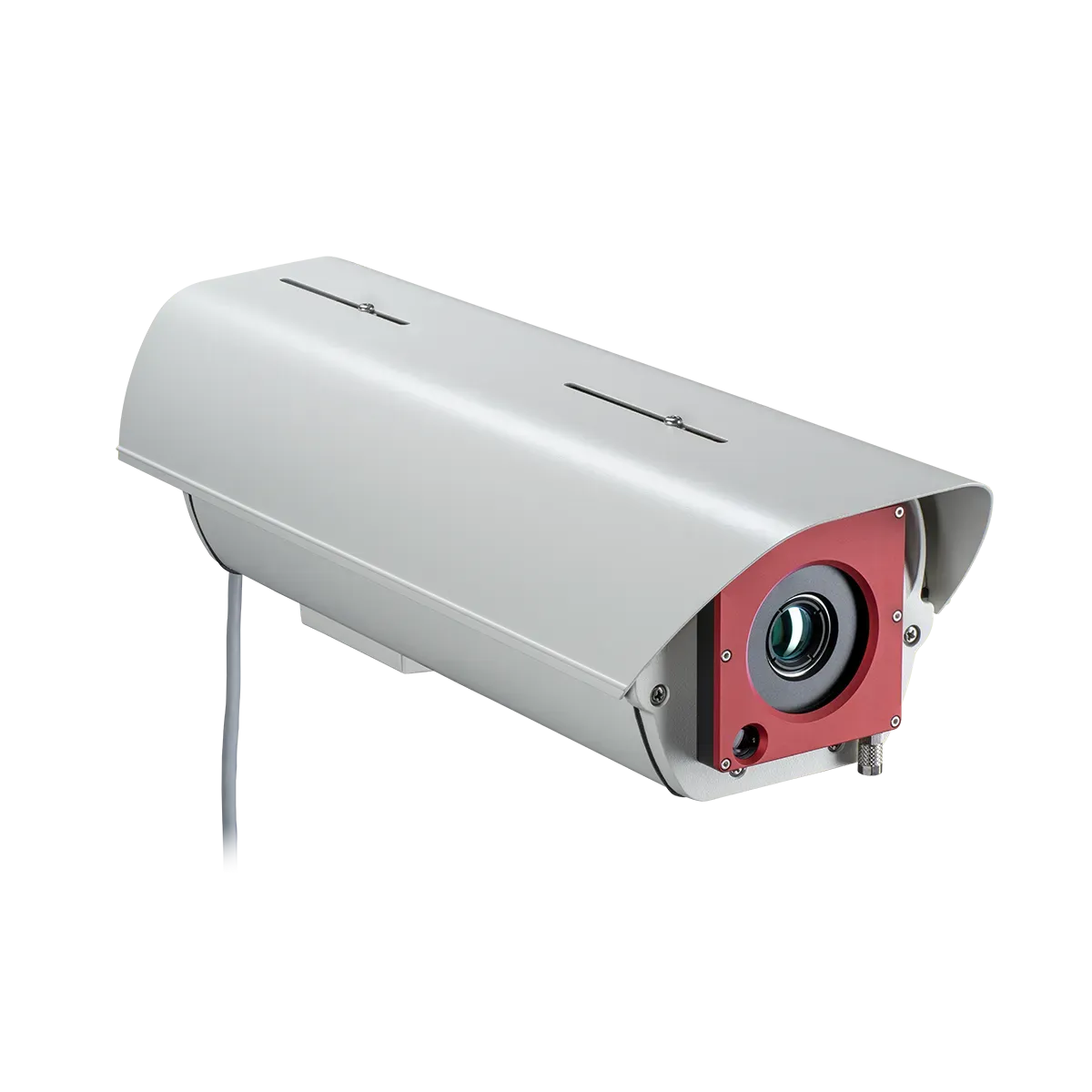

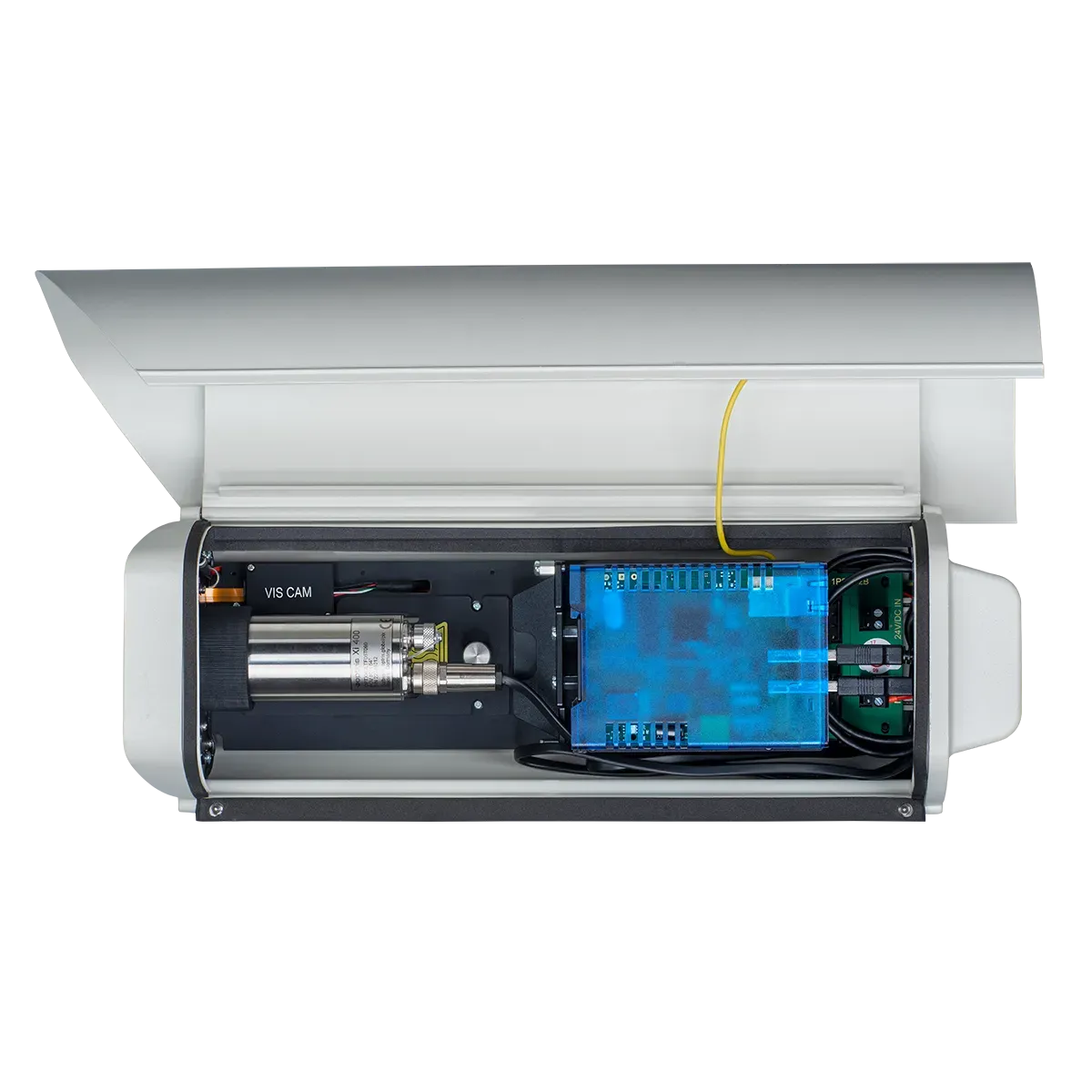

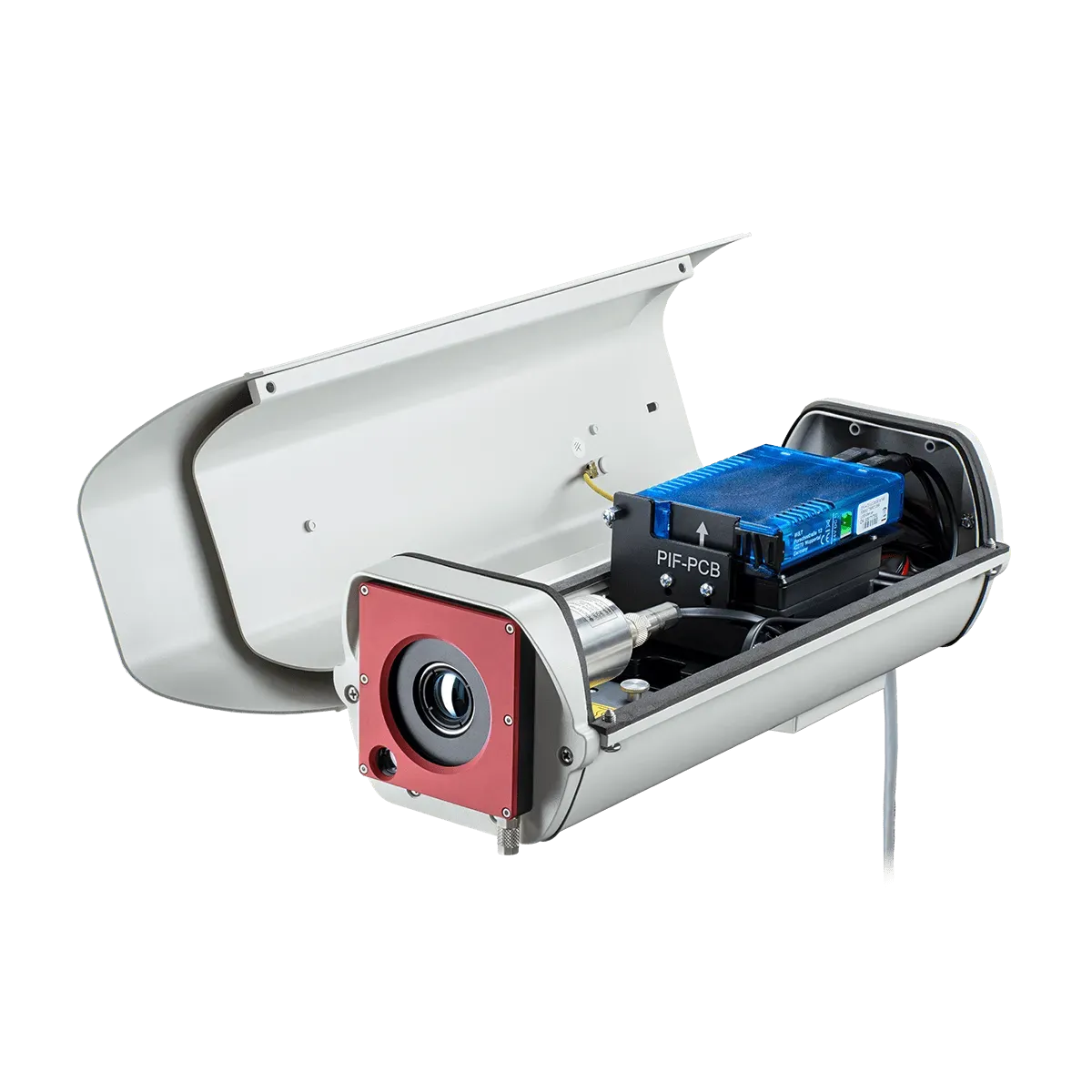

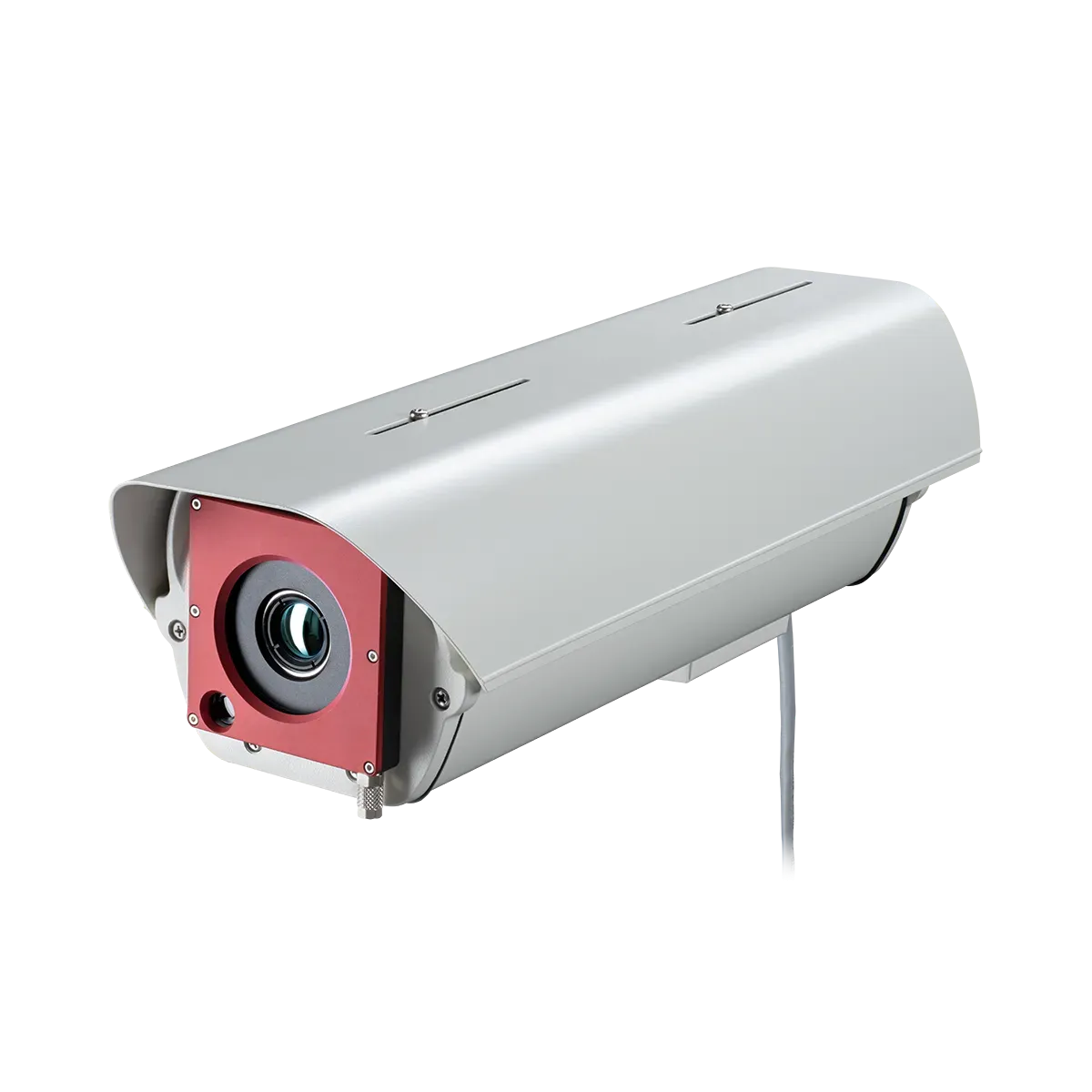

The outdoor protective housing for Optris infrared cameras offers robust protection in harsh outdoor environments. It is compatible with all Optris infrared cameras and shields against dirt, dust, moisture, humidity, and cold. It features an integrated heating system that activates below 15°C, ensuring performance in low ambient temperatures. Constructed from durable aluminum, the housing is IP66-rated for extreme weather conditions. It includes a protective window and air purge collar to maintain the cleanliness of the lens. The housing can house an additional USB server and industrial PIF integration.

  • For all Optris infrared cameras
  • Optional HD VIS camera with 1280 x 720 pixels
  • Integrated heating and fan
  • Compatible with USB-Server Gigabit and Industrial Process Interface
  • Environmental rating IP66

The outdoor protective housing for Optris infrared cameras offers robust protection in harsh environments. It is compatible with all Optris infrared cameras and shields against dirt, dust, and moisture. Features include an integrated heating system, durable aluminum construction, IP66 rating, protective window, and air purge collar. It can house an additional USB server and industrial PIF integration, and it ensures efficient operation and extended lifespan for your cameras.

General Specifications

  • Operating temperature range: -40 … +50 °C (Special with PI 450i and USB Server HT up to +60°C)
  • Storage temperature range: -40 … 70 °C
  • Relative humidity: 10 – 95 %, non-condensing
  • Environmental rating: IP66
  • Weight: 2 kg (with wall mount 2,5 kg)
  • Size: 485 mm x 140 mm x 265 mm
  • Material: Aluminum

Air Purge Specifications

  • Air purge collar: Integrated
  • Airflow: 20 -100 l/min
  • Absolute pressure: 1,1 – 8 bar
  • Condition: Use oil-free, technically clean air only

Visual Camera Specifications

  • Optical resolution: 1280 x 720 pixels
  • Frame rate: 30 Hz
  • Lens size: 1/4″
  • FOV: 65° (DFOV)
  • Type: IP camera
  • Protocol: FFMPEG (H264), RTSP, TCP

Electrical Parameters

  • Power supply: 24 V DC
  • Power consumption: 70 W
  • Current draw: 3 A (short term: 6 A)

SKU’s

  • ACXIOPH24
  • ACXIOPH24VIS
  • ACPIOPH24GE
  • ACPIOPH24GEVIS
  • ACPIOPH24ZNS
  • ACPIOPH24ZNSVIS
  • ACPIOPH24F
  • ACPIOPH24FVIS
  • ACPIOPH24B05MVIS
  • ACPIOPH24B05M
  • ACPIOPH24B1MVIS
  • ACPIOPH24B1M
  • Outdoor Protective Housing with integrated heater and fan, air purge
  • Mounting preparation for Xi
  • Mounting preparation for USB Server Gigabit
  • Mounting preparation for Industrial Process interface
  • 25cm USB cable with USB-A-right angle connector
  • Operators manual
  • ACXIOPH24, ACXIOPH24VIS, ACPIOPH24GE, ACPIOPH24GEVIS, ACPIOPH24ZNS, ACPIOPH24ZNSVIS, ACPIOPH24F, ACPIOPH24FVIS, ACPIOPH24B05MVIS, ACPIOPH24B05M, ACPIOPH24B1MVIS, ACPIOPH24B1M
