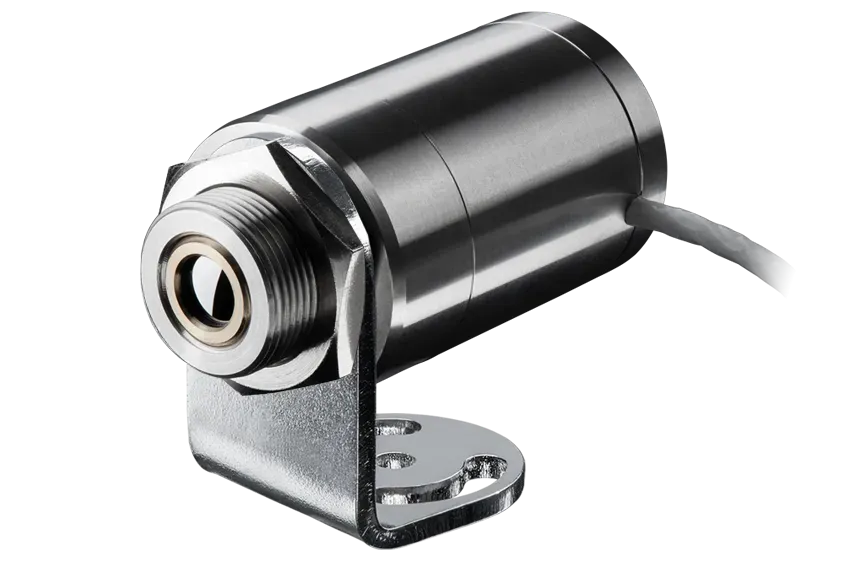

Mounting bracket for massive housing and CTratio, adjustable in one axis

Essential accessory for ensuring the optimal performance of CTratio infrared sensors or CT sensors with massive housings

The IR Sensor Mounting Bracket is adjustable in one axis and a essential accessory for ensuring the optimal performance of CTratio infrared sensors or CT sensors with massive housings. With its durable stainless steel construction and adjustable design, it offers a reliable and flexible mounting solution for a variety of industrial applications.

  • Material: Stainless steel 1.4301 electropolished
  • Connection hole: 3.2 mm

The IR Sensor Mounting Bracket is adjustable in one axis and a essential accessory for ensuring the optimal performance of CTratio infrared sensors or CT sensors with massive houseings. With its durable stainless steel construction and adjustable design, it offers a reliable and flexible mounting solution for a variety of industrial applications.

  • Material: Stainless steel 1.4301 electropolished
  • Connection hole: 3.2 mm

General Specification

  • Material: Stainless steel1.4301 electropolished
  • Connection hole: 3.2 mm
  • Thickness: 2mm
  • Single Axis Adjustability: The mounting bracket allows precise adjustment along one axis, providing flexibility in positioning the infrared sensor to achieve optimal alignment and performance.
  • Durable Construction: Made from corrosion-resistant stainless steel, the bracket is built to withstand harsh conditions, ensuring reliability and durability in demanding applications.
  • Easy Installation: The bracket is designed for straightforward installation, featuring a user-friendly design that simplifies the process of mounting and adjusting the infrared sensor.
  • Compatibility: The mounting bracket is compatible with a wide range of infrared sensors, making it a versatile choice for various industrial applications.
