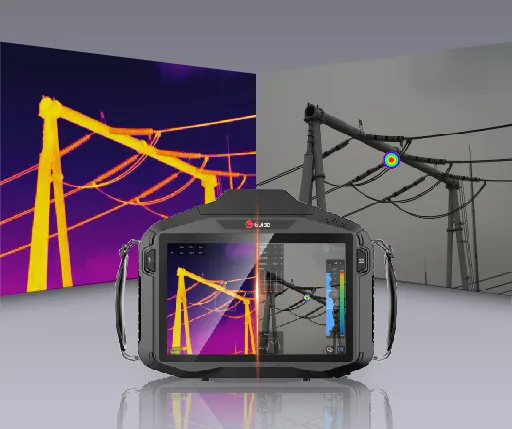

The FA Series integrates acoustic imaging and thermal imaging technologies. It features 128 high-precision microphones, a 640×512 infrared detector, an ultra-large 10.1-inch touchscreen, and the internal and external battery solution. The FA Series is designed to quickly detect temperature anomalies, locate gas leaks and identify partial discharge, offering efficient detection solutions for industries such as power, manufacturing, and petrochemicals.
128 low-noise MEMS microphones Microphone array
0 kHz to 65 kHz, Adjustable range Bandwidth
10.1” LCD, touch screen, 1920×1200 Display screen
640×512@12μm Infrared resolution
Thermal（Temperature anomaly detection）+Acoustic（Partial discharge/ gas leak detection）

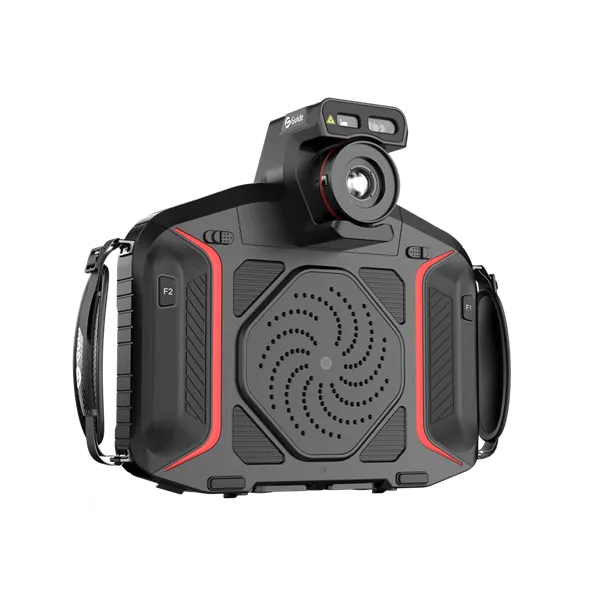

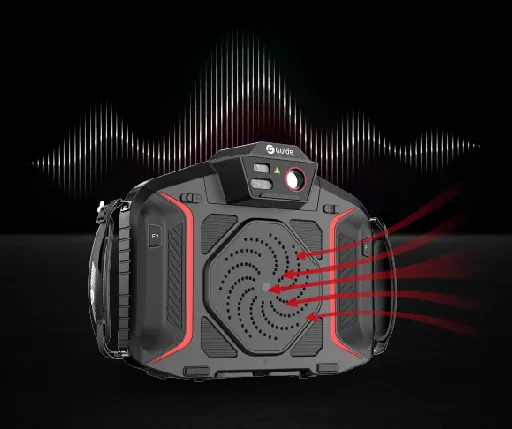

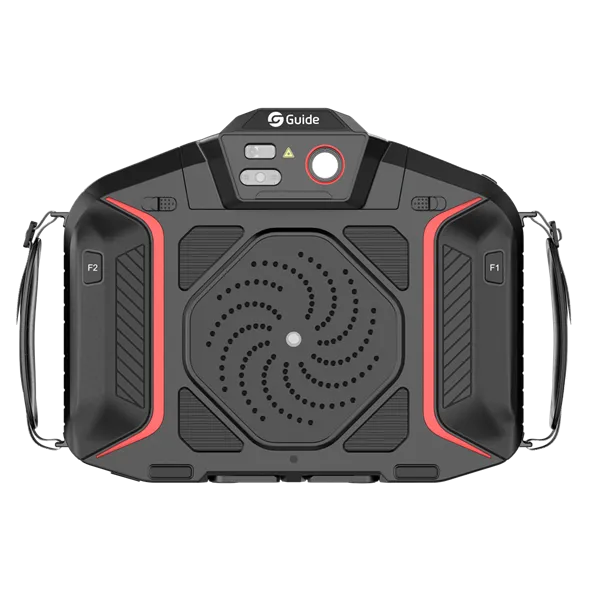

Equipped with 128 high-precision MEMS microphones in a spiral array, the FA Series delivers highly sensitive acoustic detection, accurately cap-turing sound sources for precise partial discharge and gas leak detection.

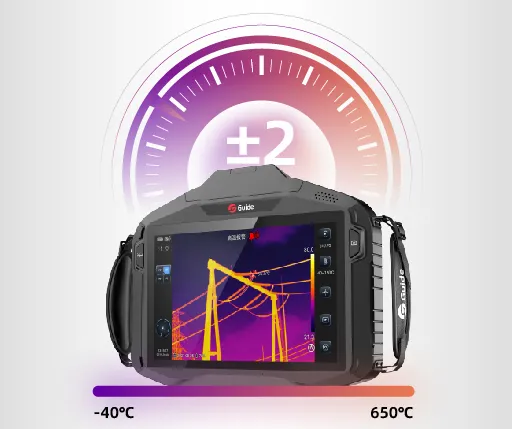

Equipped with a 640×512@12μm high-sensitivity infrared detector, FA Series responds quickly to temperature changes with high measurement accuracy. It can rapidly identify abnormal temperature areas and provide crystal-clear thermal imaging.

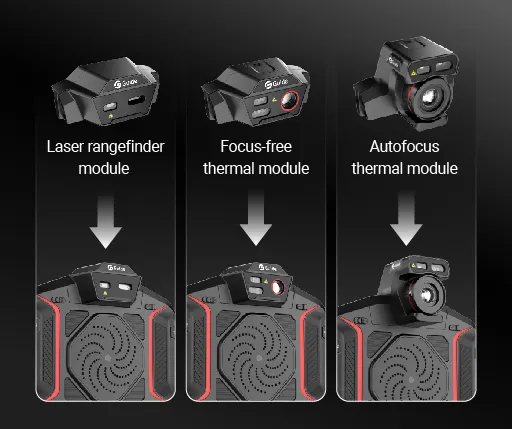

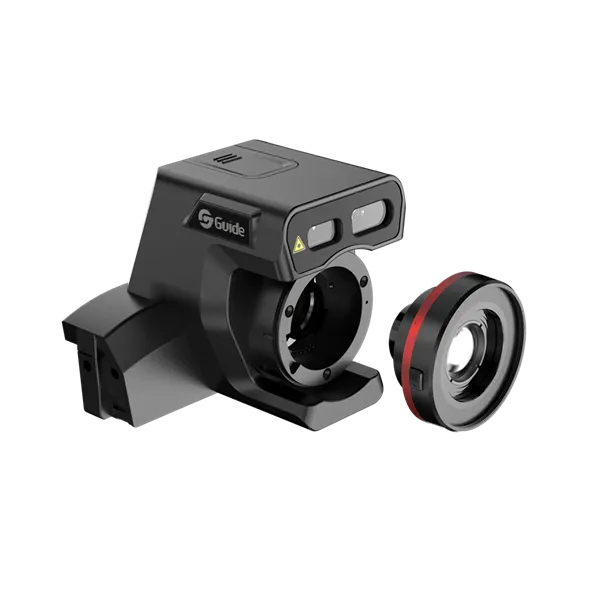

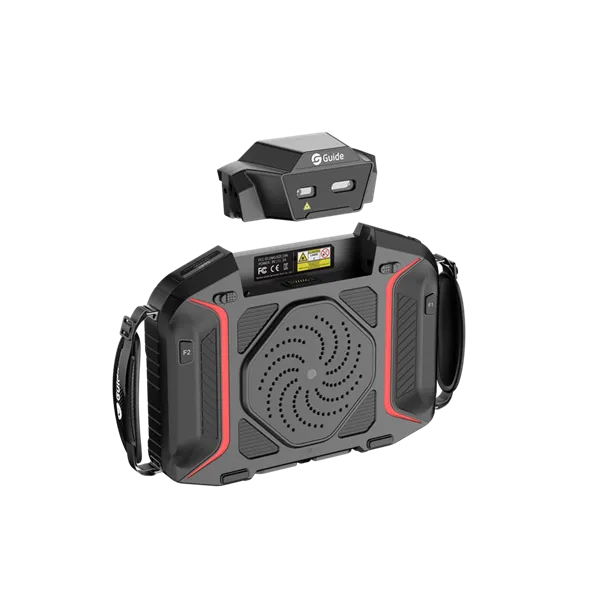

The FA Series utilizes an industry-first modular lens design that supports hot-swapping and multiple configurations. Users can easily swap function-specific modules, enhancing efficiency in inspection tasks.
Equipped with a 10.1-inch ultra-large touchscreen, it not only provides a broader visual experience but also makes touch-screen interaction more effortless and comfortable. It combines advantages such as low reflec-tivity, sensitive response, high durability, and resistance to accidental touches.
| Model | FA611 |
|---|---|
| Acoustic Sensor | |
| Microphone array | 128 low-noise MEMS microphones |
| Bandwidth | 0 kHz to 65 kHz, Adjustable range |
| SPL range | 0~120 dB |
| Frame rate | 30Hz |
| Detection mode | Partial Discharge / Gas Leak |
| Thermal Sensor (Thermal module required) | |
| Detector type | VOx, 7.5 to 14μm |
| Infrared resolution | 640×512@12μm |
| Super resolution | Yes, Upgrade to 1280×1024 |
| NETD | 30mK |
| Focal length | 13mm/17.7mm |
| Measurement range | Support auto-switching: -40°C to 150°C, 0°C to 650°C |
| Measurement accuracy | ±2°C or ±2%, whichever is greater |
| Image display | |
| Display screen | 10.1" LCD, touch screen, 1920×1200 |
| Digital camera | 13MP |
| Digital zoom | 1.1x~20x |
| Image mode | AU, IR, MIF, PIP |
| Functions | |
| Laser | Support laser indication, laser ranging range of 0.1m to 35m |
| Recording function | Photo and Video |
| Cloud Services | Available |
| OTA | Available |
| Storage and transmission | |
| Storage media | External SD card (128 GB and up to 256 GB) |
| Image storage | JPG with temp info |
| Video storage | MP4 format (without temp info) can be used to record audio synchronously; Irgd (with temp info), up to 30 Hz (optional) for temperature analysis |
| External interface | USB-C, SD card slot, Tripod socket |
| WIFI | Yes, it can be connected to the mobile terminal for image and real-time video transmission |
| Bluetooth | Bluetooth 5.0, support image transmission (only for Android) |
| Power system | |
| Battery type | Lithium-ion rechargeable battery |
| Operating time | Built-in battery + External battery: 4 hours |
| Environmental parameters | |
| Working temperature | -20°C to 50°C |
| IP rating | IP54 |
| Physical parameters | |
| Hardware | Illuminator, Microphone, Speaker, Electronic Compass, GPS |
| Weight | 1.7kg to 2kg (with built-in battery) |
| Size | 309×243.5×74mm/309×243.5×100mm |
| Software kit | PC: ThermoTools; Mobile: Thermography (iOS/Android) |
| Package Contents | Device (acoustic, module optional), Customized Batteries ×2, Desktop Charger, Power Adapter with Plugs, USB-A to USB-C Cable, USB-C to USB-C Cable, Micro HDMI to HDMI Cable, RJ45 Ethernet Patch Cable, Docking Station, SD Card (128GB), Shoulder Strap, Hand Strap, Carrying Case, Safety Box, Quick Start Guide, Inspection Report, Calibration Certificate, Warranty Card |
| Optional Items | Tripod, Bluetooth Earphones, Optional module (Laser Rangefinder, Focus-free Thermal, Autofocus Thermal) |
* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
