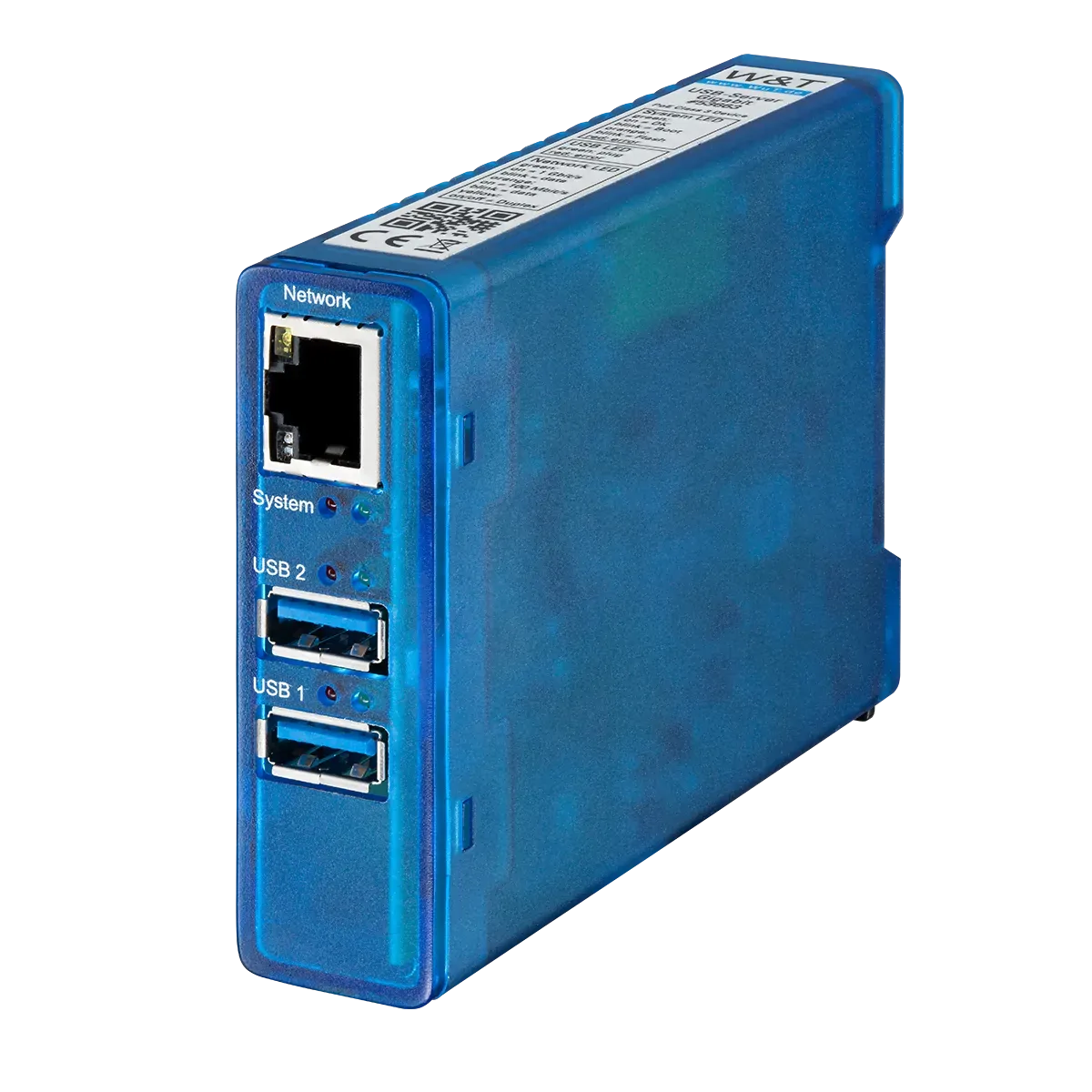

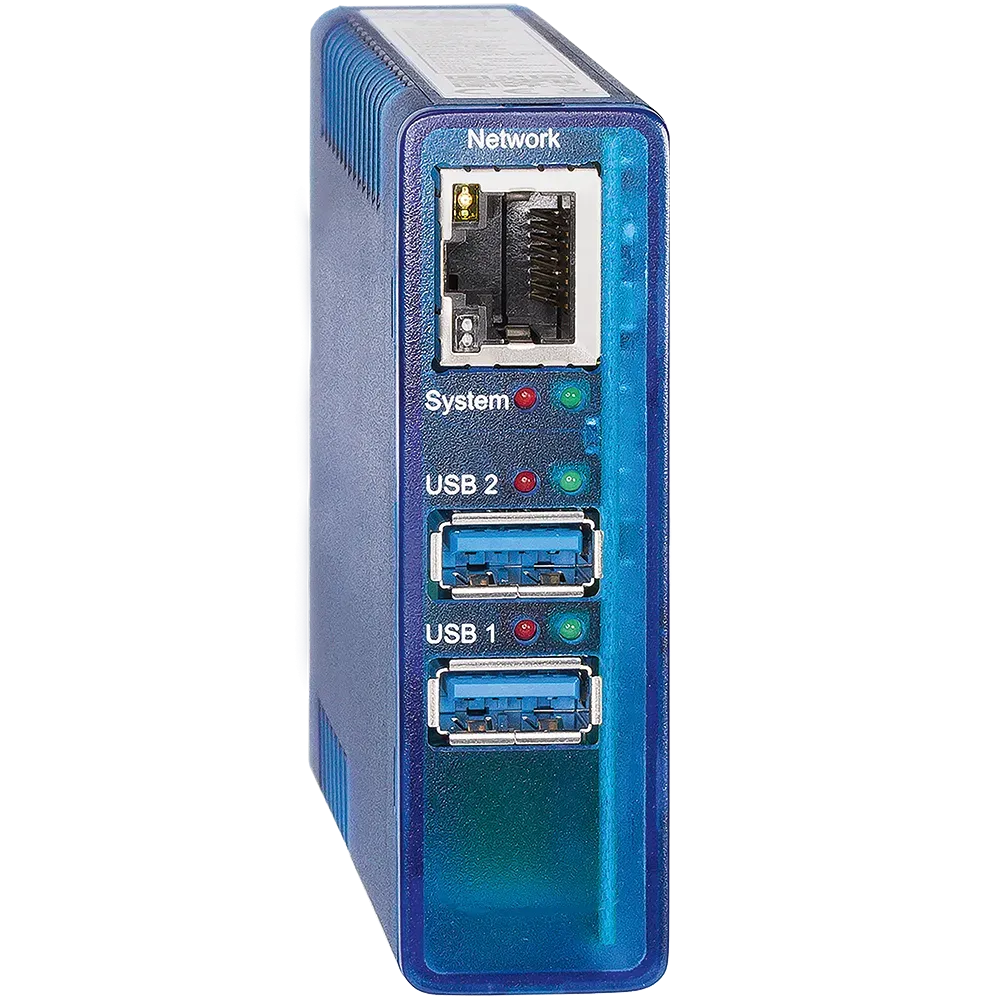

The USB-Server HT is a higher-operating-temperature version of the USB-to-Ethernet Gigabit server, designed to control infrared cameras and pyrometers remotely. It enables long-distance operation by connecting a PC to USB-based infrared devices via Ethernet. The connection between the USB server and the computer can extend up to 100 meters, with an Addition 20-meter range between the server and the infrared sensor. Operating efficiently in ambient temperatures from 0°C to 60°C, the USB-Server HT is fully compatible with USB 2.0 and supports data transfer rates up to 100 Mbit/s through Fast Ethernet. It features two independent USB ports, robust TCP/IP support, routing, and DNS capabilities. The network connection benefits from 500 VRMS galvanic isolation, ensuring reliable performance. The USB-Server HT offers a user-friendly experience with its remote configuration capability via Web-Based Management. This feature allows for easy and convenient setup and adjustment of the device’s settings. The device can be powered either through Power over Ethernet (PoE) or an external 24-48 V DC power supply, providing flexibility in power options.
The USB-Server HT is a high-temperature USB-to-Ethernet interface for remote control of infrared cameras and pyrometers. It supports connections up to 120 meters and operates efficiently from 0°C to 60°C. Compatible with USB 2.0, it offers data rates up to 100 Mbit/s, two USB ports, TCP/IP support, and 500 VRMS galvanic isolation. It can be configured remotely and powered via PoE or 24-48 V DC.
General Specifications
Interface board basic characteristics
Electrical Parameters
Power supply:
Current consumption:
Galvanic isolation: > 500 VRMS (network connection)
SKU
