EtherNet/IP Interface-Kit

EtherNet/IP for Optris CSvision Pyrometer and Infrared Cameras

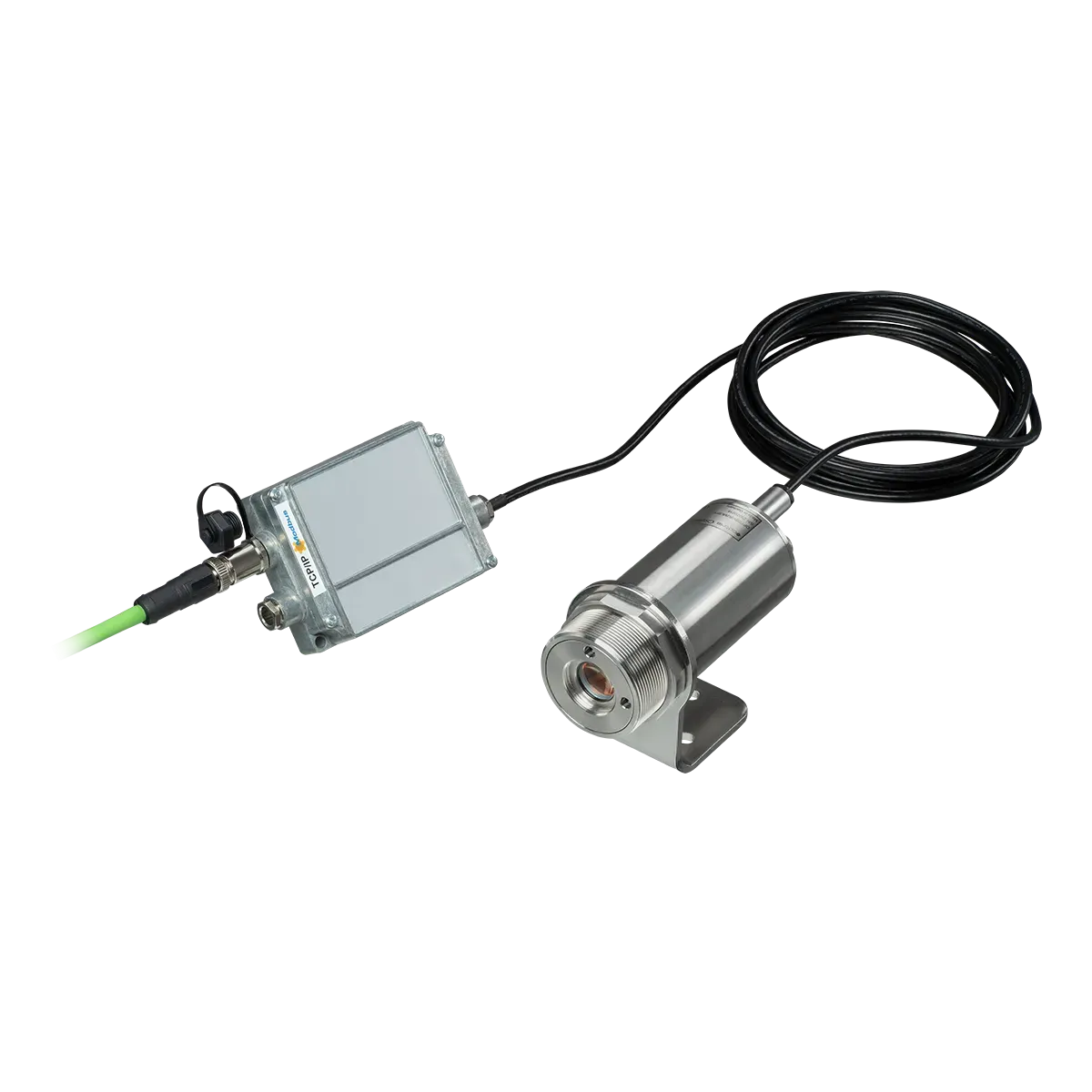

The EtherNet/IP Interface-Kit for Optris Xi series infrared cameras and CSvision pyrometers is an industrial communication tool that integrates Optris sensors with Allen Bradley PLC systems. EtherNet/IP, a widely adopted industrial protocol in the United States, supports factory, hybrid, and process automation. This kit enables robust data transmission over Ethernet networks, facilitating communication between sensors, controllers, and data acquisition systems. By utilizing EtherNet/IP, the interface kit provides high-speed, reliable data exchange, enhancing the flexibility and scalability of temperature monitoring solutions. It ensures precise temperature control, improved operational efficiency, and streamlined integration with existing industrial control systems, making it suitable for complex processes requiring temperature management.

  • EtherNet/IP interface
  • ODVA approved
  • Full documentation with eds-files for Allen Bradley PLCs

The EtherNet/IP Interface-Kit for Optris Xi series infrared cameras and CSvision pyrometers integrates Optris sensors with Allen Bradley PLC systems. As a leading U.S. industrial protocol, EtherNet/IP supports factory, hybrid, and process automation. This kit enables robust data transmission, facilitating high-speed communication between sensors, controllers, and data acquisition systems. It enhances temperature monitoring flexibility, ensuring precise control, operational efficiency, and streamlined integration for complex processes.

General Specifications

  • Environmental rating: IP65 (Nema-4)
  • Operating temperature: 0 °C to 85 °C
  • Relative humidity: 10 – 95 %, non-condensing
  • Vibration: IEC 60068-2-6 (sinusoidal form), IEC 60068-2-64 (broadband noise)
  • Shock: IEC 60068-2-27 (25 G and 50 G)
  • Housing material: die cast zinc
  • Weight: 440 g
  • Dimensions (H x W x D): 122 mm x 70 mm x 30 mm

Interface Board Characteristics

  • Port Protocol: EtherNet/IP
  • Transfer speed: up to 100Mbit/s full-duplex, auto-negotiation capable
  • Device class: adapter device
  • Device type: 06h
  • Communication Port and Connection Type:
    • 1x Ethernet 10/100 Base-T (RJ45) or 4-pin, industrial M12, D-coded connector
    • 1x RS-422/485 (6-pin terminal)

Electrical Parameters

  • Power supply: 5 … 30 VDC
  • Power consumption: < 0.7 W

SKU

  • ACXICSVIEIPK

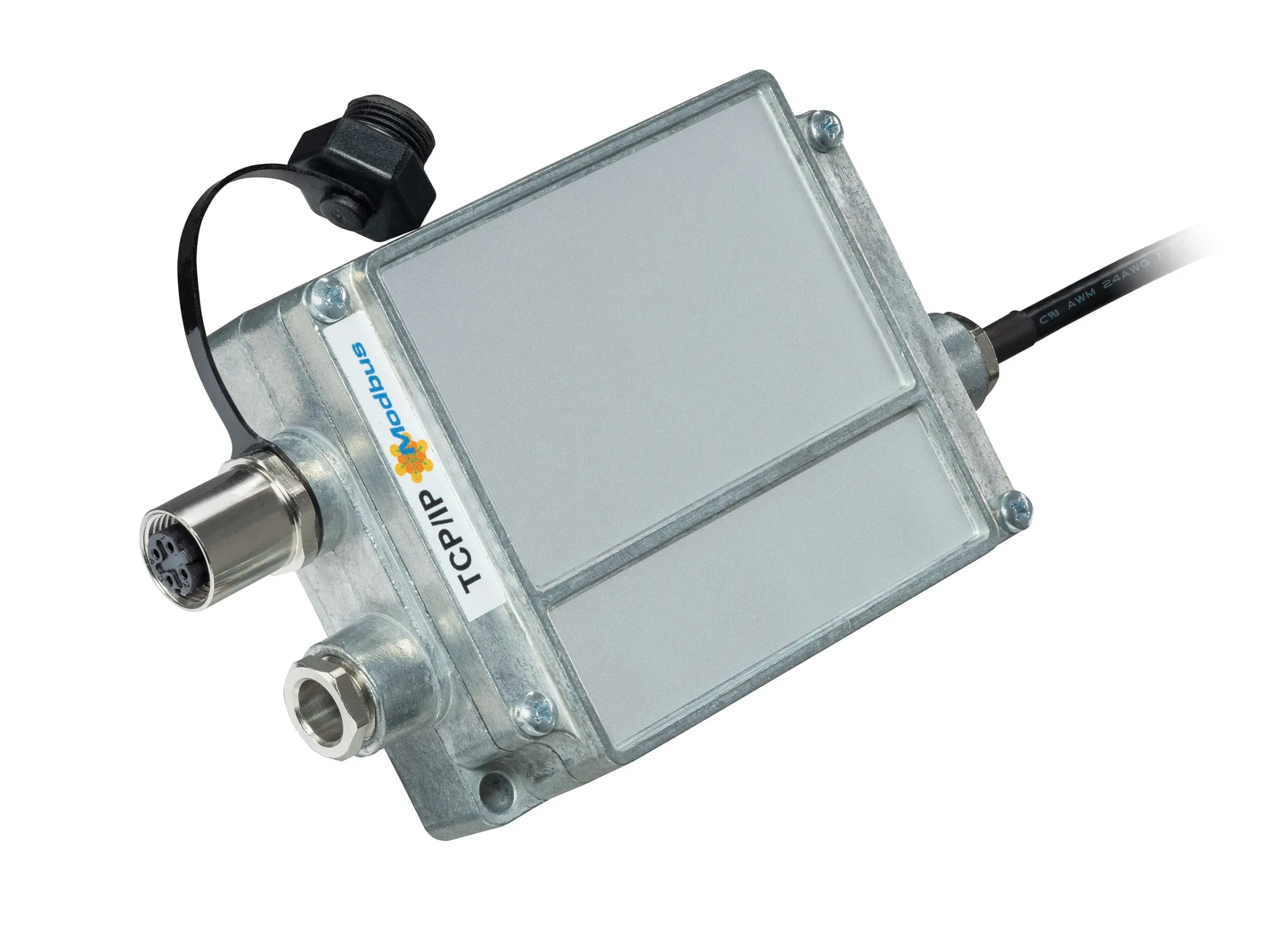

  • 1x interface box (IP65) incl. M12 connector, 25 cm cable
  • 1x M12 4-pin connector
  • 1x extension cable (20cm) with RJ45 socket and M12 4-pin connector
  • 1x USB stick including software, EDS file and manual
  • 1x quick reference
  • ACXICSVIEIPK
