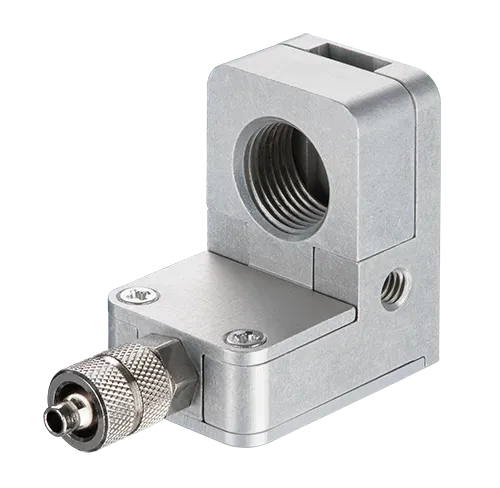

Enclosed Air Purge Collar

Essential Protection for Precision Infrared Temperature Sensing in Tough Environments

The Air Purge Collar for the compact online infrared thermometer series is engineered to keep the lens of the infrared sensing head clean in challenging environments. Since infrared sensors measure the intensity of infrared light emitted from an object, accumulated dirt can attenuate the signal. The collar utilizes a continuous air stream that blows along the sensor and lens, preventing dust from settling. This protects against dirt, smoke, fumes and dust effectively, enhancing measurement repeatability in dusty conditions. Various models are available, tailored for different distance-to-spot size ratios of the optics and different form factors of the sensing head.

  • Improves performance in dusty conditions
  • Keeps the lens of the infrared sensor clean in harsh environments
  • Prevents dust accumulation with an air stream
  • Fits various distance-to-spot size ratios
  • Compatible with different sensing head forms
  • Easy to install and maintain

The Air Purge Collar for the compact online infrared thermometer series keeps the infrared sensing head lens clean in challenging environments. By using a continuous air stream, it prevents dust accumulation, ensuring accurate measurements. Various models are available to accommodate different distance-to-spot size ratios and sensing head form factors.

General Specification

  • Operating temperature: 0 °C to 180 °C
  • Storage temperature range: 0 °C to 80 °C
  • Environmental rating: IP65
  • Relative humidity: 10 – 95 %, non-condensing
  • Material: Anodized aluminum
  • Size: Ø21 x 67,5 mm

Air purge

  • Airflow: 2 …10 l/min
  • Condition: Use oil-free, technically clean air only
  • Connection hose dimensions for compressed air: ID: 3 mm x OD: 5 mm
  • Thread (fitting): M5

SKU’s

  • ACCTAPLMF
  • ACCTAPMH
  • ACCTAP2
  • ACCTAPL
  • ACCTAP
  • ACCTAPLCFHT
  • ACCTAPLCF
