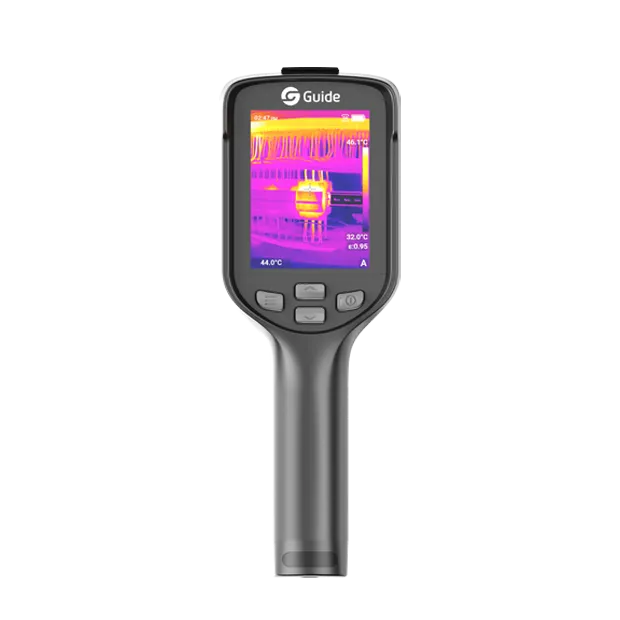

EasIR Series offers high-resolution detectors (256×192 or 384×288) for precise capture of minute temperature variations. Featuring IR-Perfclear technology, it optimizes image details and reduces noise in real time, delivering exceptionally clear thermal imaging. The device is equipped with a 3.5-inch bright HD display and a 2 MP visible-light camera, supporting both synchronous display or image fusion of thermal and visible-light. Enhanced with smart capabilities including live video streaming, recording, Wi-Fi connectivity, and OTA upgrades, it significantly boosts work efficiency.

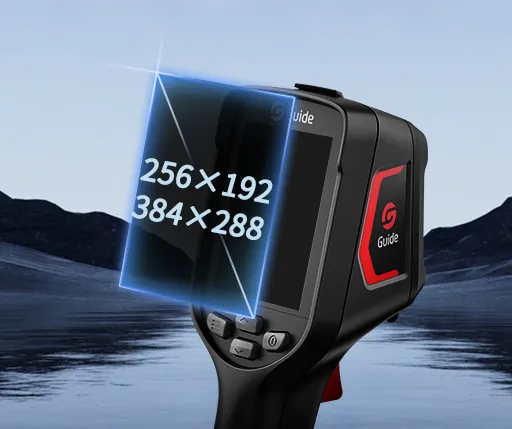

256×192@12μm IR Resolution
30mK NETD
-20°C~550°C Measurement range
30Hz/9Hz Frame rate
The expansive 3.5-inch display provides a clear view of details, enabling precise control of critical information.

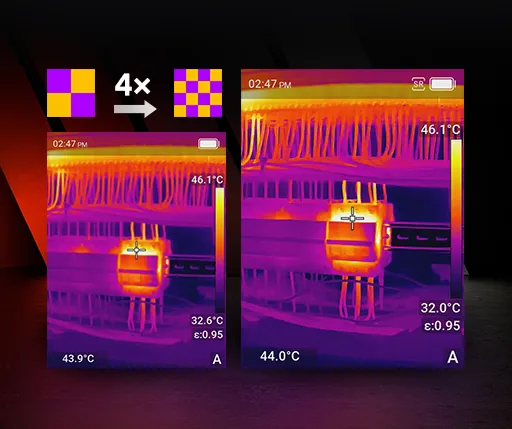

Features IR-Perfclear real-time super resolution technology for 4x image quality enhancement.

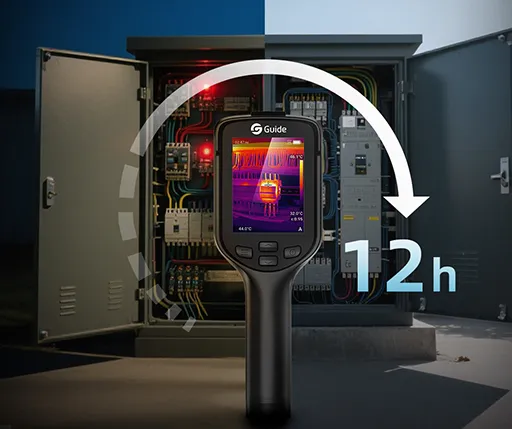

Extended 12-hour battery life meets all-day operational demands and ensures stable performance in complex working conditions.

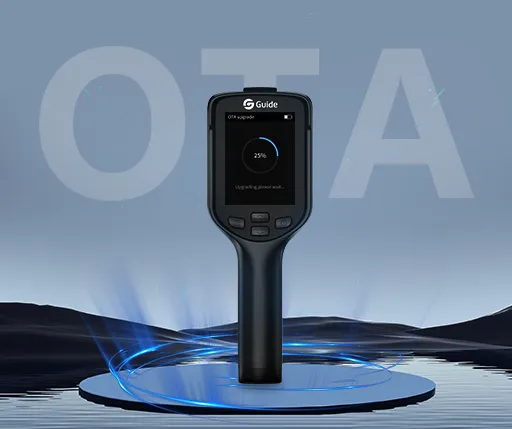

Featuring encrypted transmission and verification for secure and stable upgrades. Update with a single click, anytime, anywhere.
Certified for 2-meter drop resistance. Unfazed by rain, high temperatures, or harsh conditions.
| Model | E3 |
|---|---|
| Imaging and optics | |
| Detector type | VOx, 7.5 to 14μm |
| Infrared resolution | 256×192@12μm |
| Super resolution | Yes, Upgrade to 512×384 |
| NETD | 30mK |
| Frame rate | 30Hz/9Hz |
| Focal length | 3.2mm |
| Field of view | 56°×42° |
| IFOV | 3.75mrad |
| Min. object distance | 0.3m |
| D:S | 266:1 |
| Focusing mode | Focus-free |
| Measurement and analysis | |
| Measurement range | Support auto-switching: -20°C to 150°C, 0°C to 550°C |
| Measurement accuracy | ±2°C or ±2%, whichever is greater |
| Analyzed target | Center spot; Three Fixed Areas: Small, Medium, Large (Alternative) |
| Alarm | Full screen temperature threshold alarm (image and flash) |
| Image display | |
| Display screen | 3.5" LCD , 640×480 |
| Image mode | IR, VIS, MIF, PIP |
| Color palettes | 6: Iron Red, White Hot, Arctic, Rainbow 2, Hot Iron, Rainbow 1 |
| Image adjustment | Level span mode: Automatic, Semi-automatic, Manual |
| Digital camera | 2MP |
| Functions | |
| Laser | Laser Indication |
| Recording function | Photo and Video |
| Storage and transmission | |
| Storage media | Built-in (32 GB) |
| Image storage | JPG with temp info |
| Video storage | Supports real-time video streaming, video storage format in Irgd (with temp info) |
| External interface | USB-C, Tripod socket |
| WIFI | Yes, it can be connected to the mobile terminal for image and real-time video transmission |
| Power system | |
| Battery type | Rechargeable lithium-ion battery, non-removable |
| Operating time | 12 hours |
| Environmental parameters | |
| Working temperature | -15°C to 50°C |
| IP rating | IP54 |
| Drop | 2m drop test |
| Physical parameters | |
| Hardware | Illuminator |
| Weight | 440g |
| Size | 228×81×77.5mm |
| Software kit | PC: ThermoTools; Mobile: FocusIR (iOS/Android) |
| Standard | A device, Wrist strap, Power adapter, Adapter plug, USB-A to USB-C cable, Quick Start Guide, Warranty card, Carrying bag |
| Options | Macro lenses (10x/5x), Tripod |
* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
