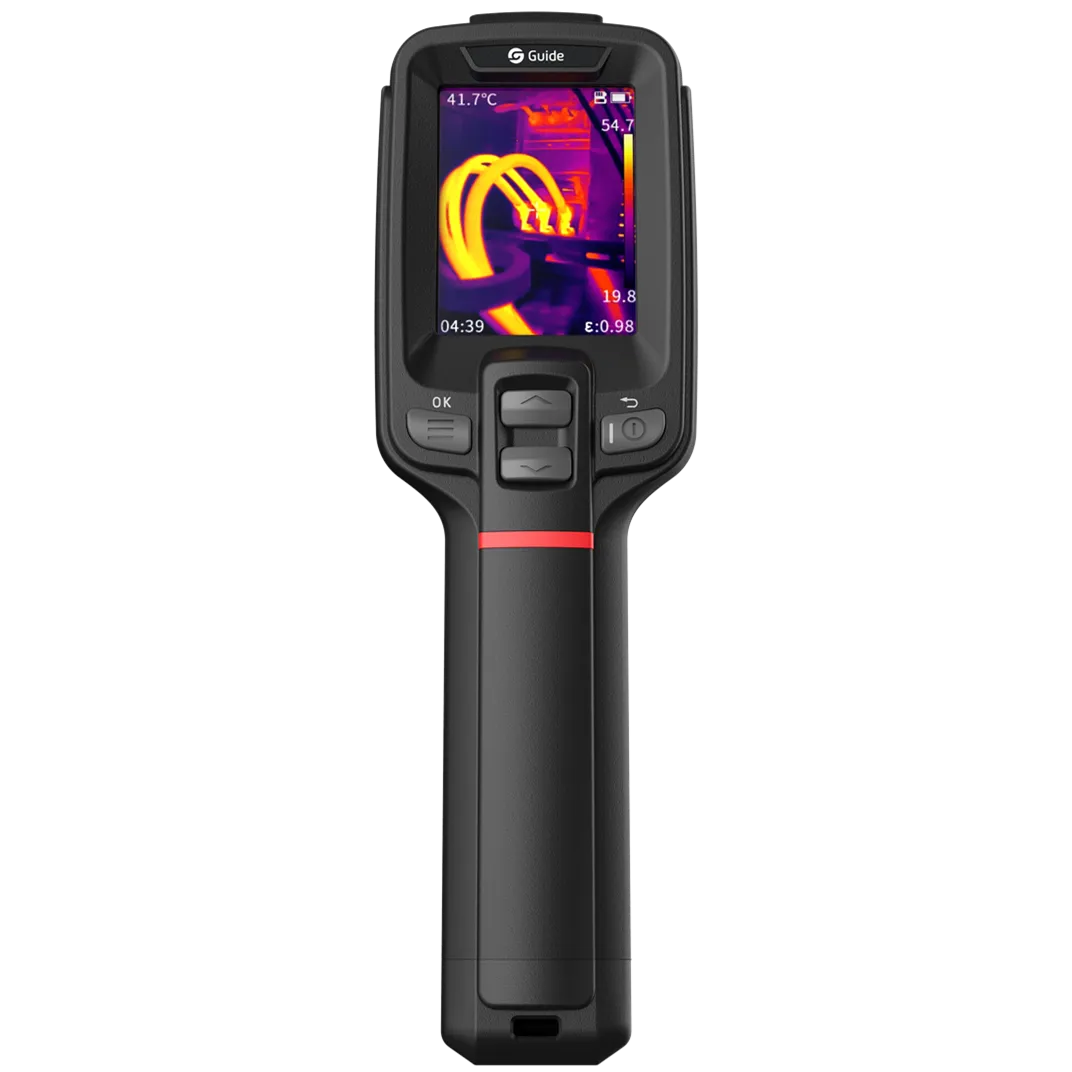

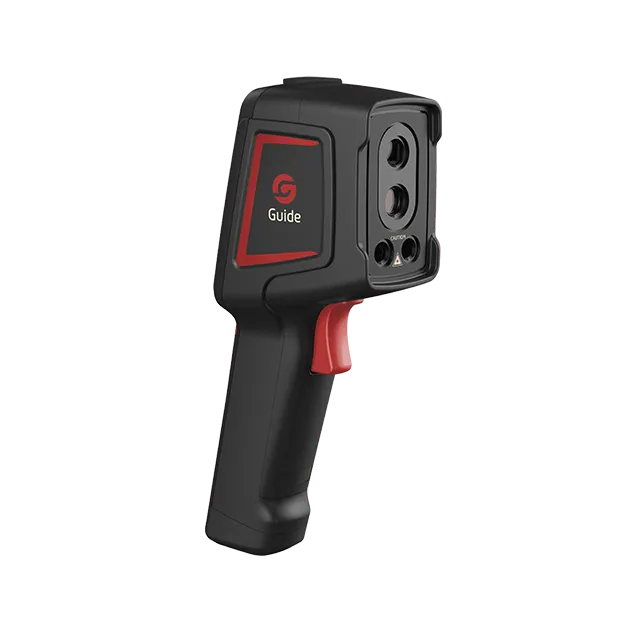

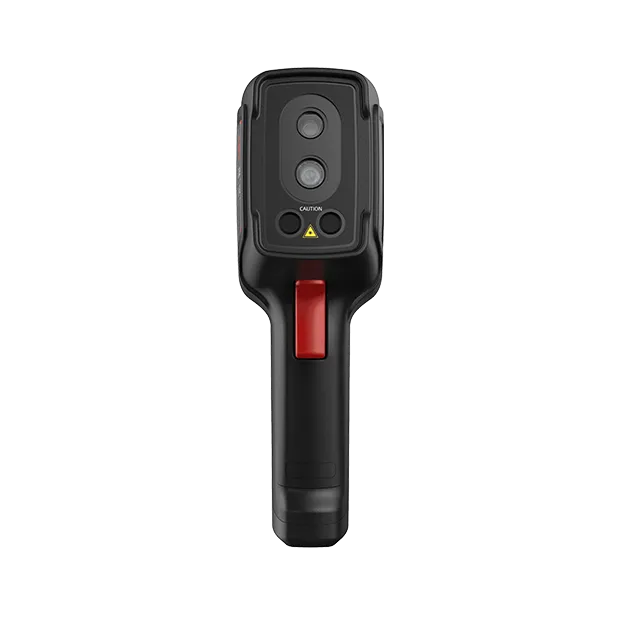

EasIR Series tool-like thermal camera provides two configuration options of 120x90 and 256x192 IR detectors. It adopts the new real-time IR-Perfclear technology to enhance the details and reduce noise of the image and present a clearer image in real time. Equipped with a series of professional functions such as 2MP visible light camera, video streaming and recording, WIFI, and OTA upgrade, etc., EasIR Series brings a clearer, more powerful and smoother work experience for users.
256×192@12μm IR Resolution
45mK NETD
-20°C~550°C Measurement range
25Hz/9Hz Frame rate
Based on the self-developed 12μm uncooled infrared detector, EasIR Series provides two configurations of 256×192 and 120×90 infrared resolution, which features a lower consumption with a smaller size.
The real-time IR-Perfclear technology breaks through the size limitations of infrared detector, it achieves a 4x enhancement in image quality through real-time computational optimization. This delivers higher quality images with richer details and crystal-clear clarity.
With a wide measurement range from -20℃ to 550℃ (-20℃-150℃ / 0℃-550℃) and automatic switching, EasIR Series can meet the diverse demands of more industries with more accurate temperature measurement.
Equipped with a thermal imaging sensor and visible light camera, EasIR Series provides 4 image modes and 6 color palettes, helping users to observe and analyze the heat distribution of targets more intuitively.

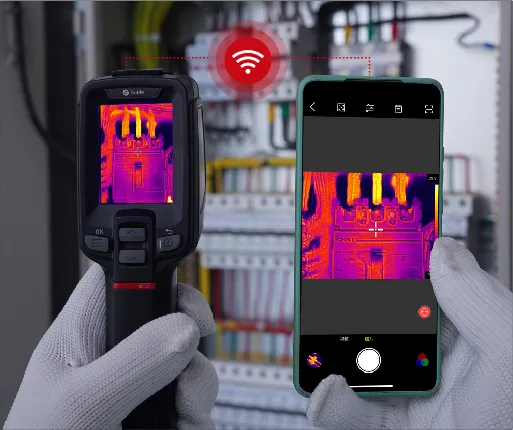

By connecting the Wi-Fi, users can remotely access to phone album and share conveniently via the mobile APP. Additionally, EasIR Series can be controlled in real-time via the mobile APP for taking photos and recording videos. Note: *E1 does not support this function.

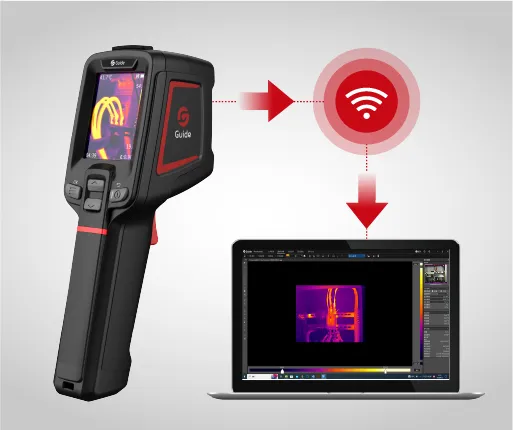

Through Wi-Fi connection, data can be transmitted to PC analysis software instantly, providing users with recording and real-time analysis capabilities.
| Model | E2 |
|---|---|
| Imaging and optics | |
| Detector type | VOx, 7.5 to 14μm |
| Infrared resolution | 256×192@12μm |
| Super resolution | Support real-time super-resolution reconstruction, Upgrade to 512×384 |
| NETD | 45mK |
| Frame rate | 25Hz/9Hz |
| Focal length | 3.2mm |
| Field of view | 56°×48° |
| IFOV | 3.75mrad |
| Min. object distance | 0.1m |
| D:S | 266:1 |
| Focusing mode | Focus-free |
| Measurement and analysis | |
| Measurement range | Support auto-switching: -20°C to 150°C, 0°C to 550°C |
| Measurement accuracy | ±2°C or ±2%, whichever is greater |
| Analyzed target | Center spot; Three Fixed Areas: Small, Medium, Large (Alternative) |
| Alarm | Full screen temperature threshold alarm (image and flash) |
| Parameter settings | Emissivity, reflected temperature, target distance |
| Image display | |
| Display screen | 2.4" LCD |
| Image mode | IR, VIS, MIF and PIP |
| Color palettes | 6: Iron Red, White Hot, Arctic, Rainbow 2, Hot Iron, Rainbow 1 |
| Image adjustment | Level span mode: Automatic, Semi-automatic, Manual |
| Digital camera | 2MP |
| Functions | |
| Laser | Laser Indication |
| Recording function | Photo and Video |
| Storage and transmission | |
| Storage media | Built-in (16 GB) |
| Image storage | JPG with temp info |
| Video storage | Supports real-time video streaming, video storage format in Irgd (with temp info) |
| External interface | USB-C, Tripod socket |
| WIFI | Yes, it can be connected to the mobile terminal for image and real-time video transmission |
| Power system | |
| Battery type | Rechargeable lithium-ion battery, non-removable |
| Operating time | 11 hours |
| Charging mode | USB-C charging; PC/portable charger; Capable of charging while using |
| Charging time | 90% of full charge in 2.5 hours |
| Environmental parameters | |
| Working temperature | -15°C to 50°C |
| IP rating | IP54 |
| Drop | 2m drop test |
| Certification | CE, FCC, RoHS, KC, EAC, FDA, Anatel, IP54, 2m drop test, Damp heat test, Vibration test, Shock test, Impact test, UN38.3, MSDS |
| Physical parameters | |
| Hardware | Illuminator |
| Weight | 375g |
| Size | 194×61.5×76mm |
| Software kit | PC: ThermoTools; Mobile: Thermography (iOS/Android) |
| Standard | A device, Wrist strap, Power adapter, Adapter plug, USB-A to USB-C Cable, Data download card, Quick Start Guide, Warranty card, Inspection report |
| Options | Tripod |
* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
