The Optris CTlaser LT series establishes a benchmark in non-contact temperature measurement, boasting precision and a broad temperature range. Its two-piece construction seamlessly integrates an infrared sensor with a 75:1 optical resolution, perfectly suited for monitoring fast-paced manufacturing operations. These pyrometers shine in fixed-installed or fixed-mounted setups, ensuring reliable and consistent temperature readings. Double laser aiming marks enhance precision, aiding in precise alignment and minimizing discrepancies, which is particularly valuable in scenarios when the pyrometer is mounted at a large distance from the object. With a temperature range from -50 °C to 975 °C, optimized for non-reflective surfaces, they adapt to industrial environments. The IR sensor offers various focal points for versatility and guarantees outstanding accuracy and repeatability for non-contact temperature measurements.
The Optris CTlaser LT series is renowned for its high standard in non-contact temperature measurement, delivering precise accuracy and a wide temperature range. Characterized by a two-piece design, these pyrometers integrate an infrared sensor with a high optical resolution of 75:1. Their non-contact capability makes them ideal for monitoring industrial processes where physical contact with the object is impractical. These pyrometers are typically used in fixed installations, ensuring consistent and precise temperature measurements.
The CTlaser LT series offers a temperature range from -50 °C to 975 °C, optimized for non-reflective surfaces, showcasing remarkable versatility in temperature measurement applications with a response time of up to 120 ms. These pyrometers are primarily utilized in industrial settings, research, and development, where small measurement spots are critical for precise temperature assessment. They provide various focus versions to accommodate diverse applications, including CF1: 0.9 mm at 70 mm, CF2: 1.9 mm at 150 mm, and CF3: 2.75 mm at 200mm.
The series ensures exceptional temperature measurement accuracy, with a system accuracy of ±1.0% or ±1.0 °C, guaranteeing reliable and consistent readings. The infrared sensors repeatability stands at ±0.5% or ±0.5 °C, further reinforcing the reliability of the measurements.

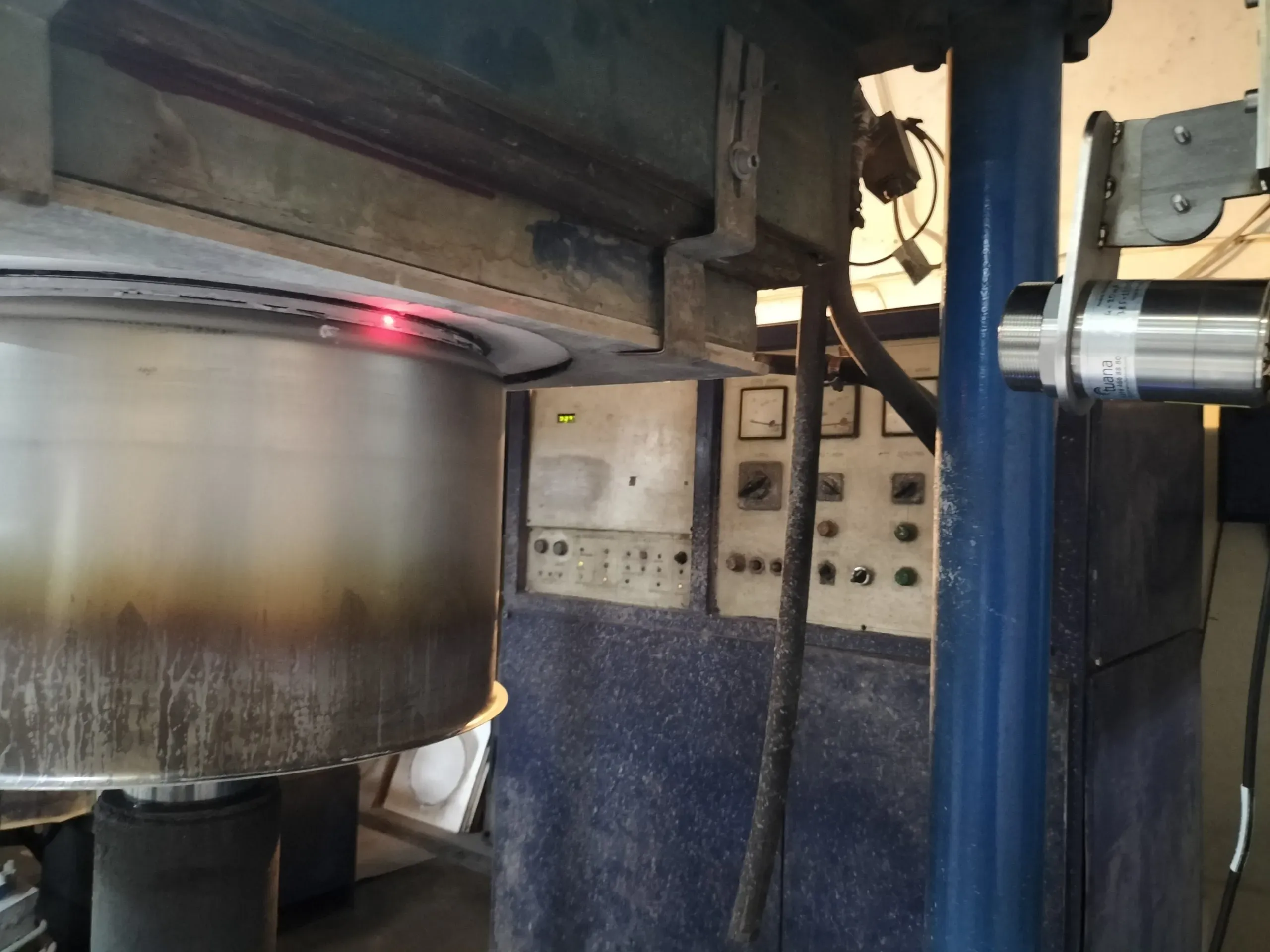

A standout feature of the CTlaser LT series is its double laser aiming marks, which pinpoint the exact location of the measured spot and offer valuable insights into the spot size. This visual aid enhances accuracy in temperature monitoring, facilitates precise alignment, and minimizes measurement errors. The series employs an innovative double laser sighting system, unlike conventional IR thermometers with single lasers that only mark the center of the spot. The two laser beams follow the infrared optical path to indicate the spot’s position at any distance.

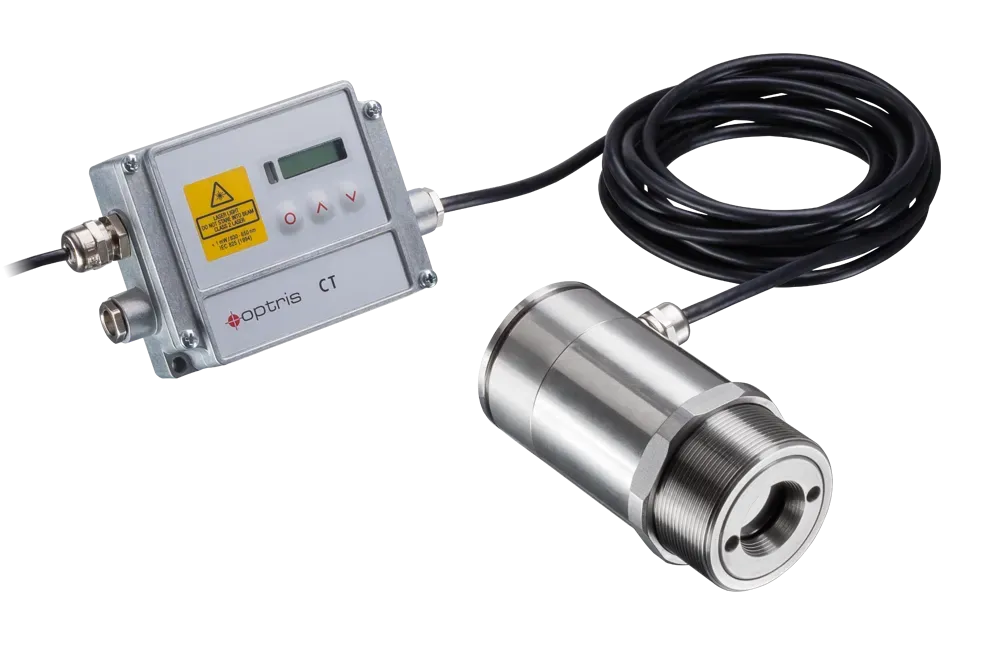

Each CTlaser LT pyrometer features a two-piece design, comprising a separate electronics box that delivers advanced signal processing capabilities. The online pyrometer offers a wide array of analog and digital outputs, including 0/4–20 mA, 0–5 V, 0–10 V, USB, Ethernet, RS485, RS232 interface, relay outputs (2 x optically isolated), Profibus DP, Modbus TCP, ProfiNet, and Ethernet/IP. This versatility facilitates seamless integration into many industrial processes and monitoring systems.

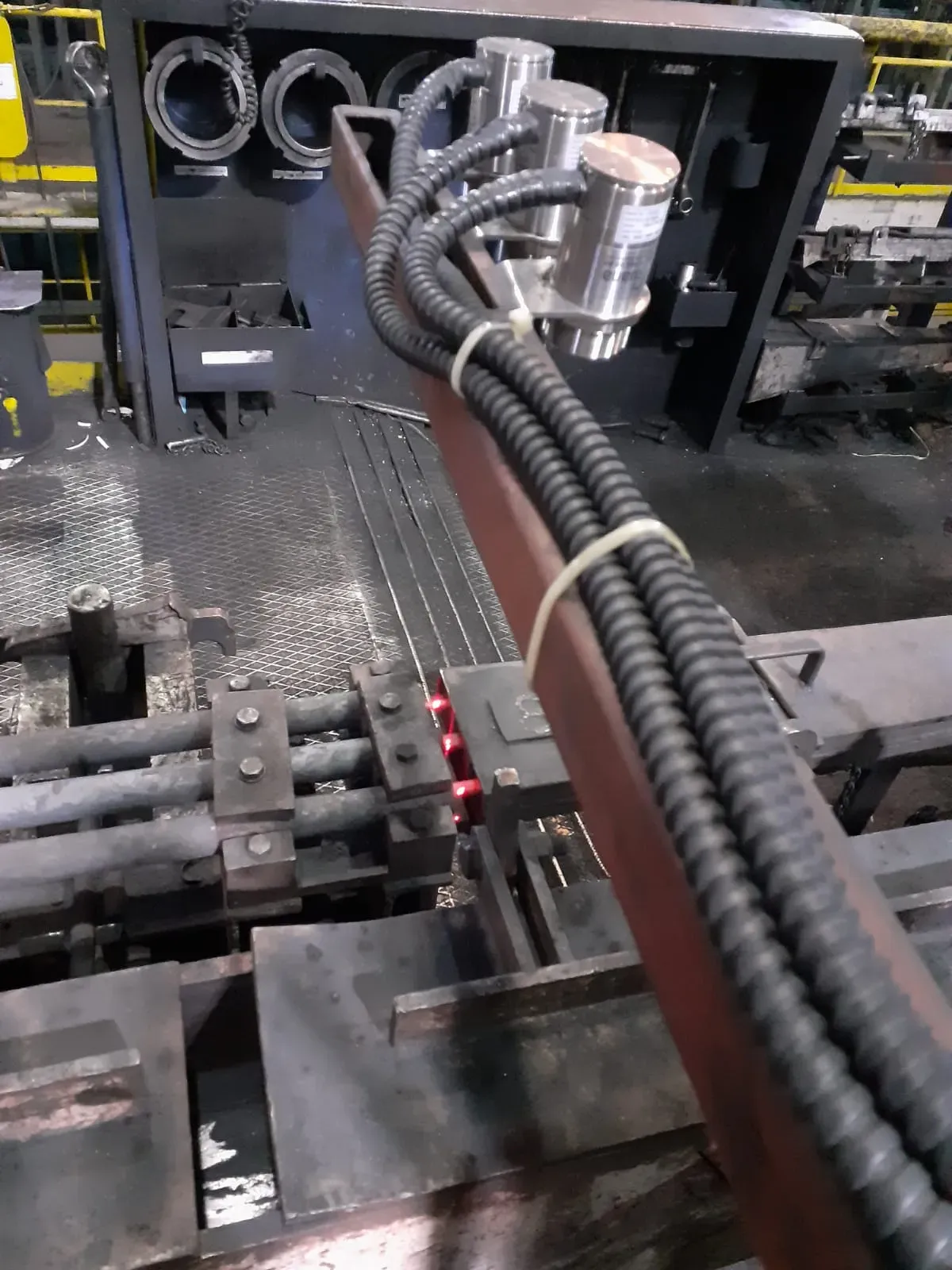

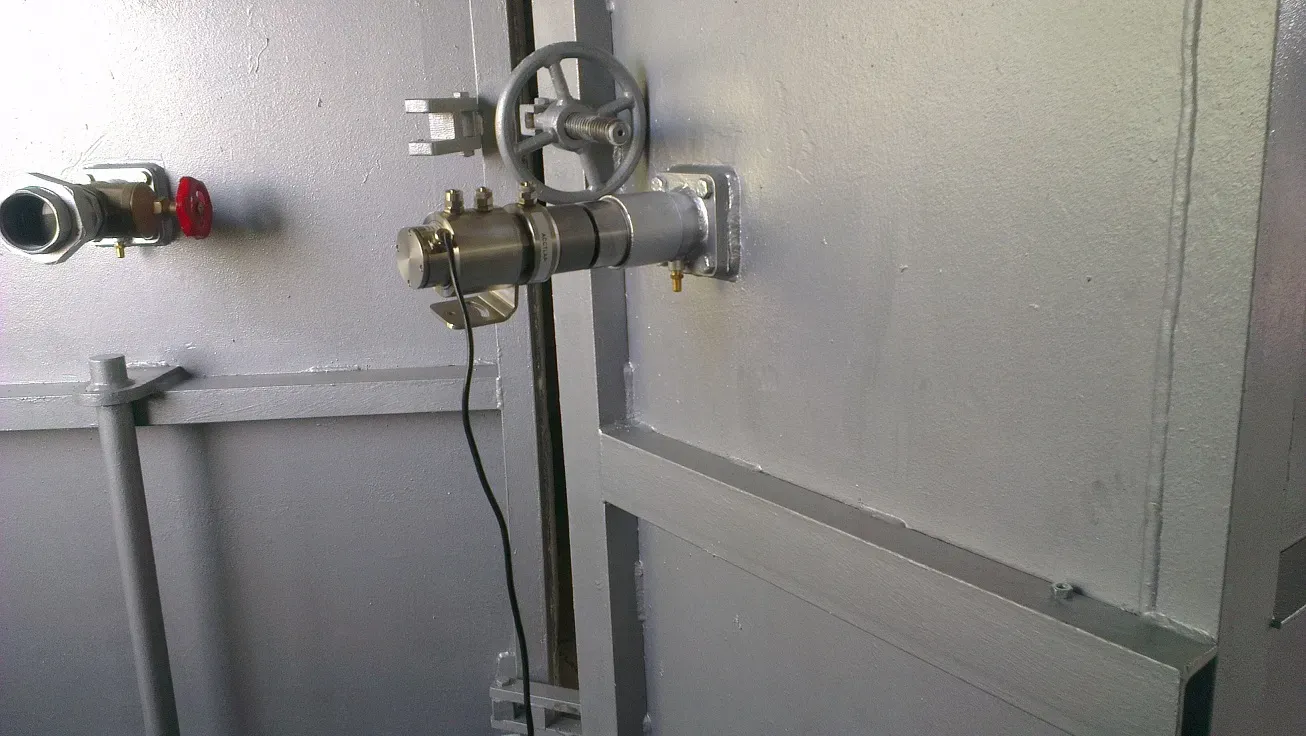

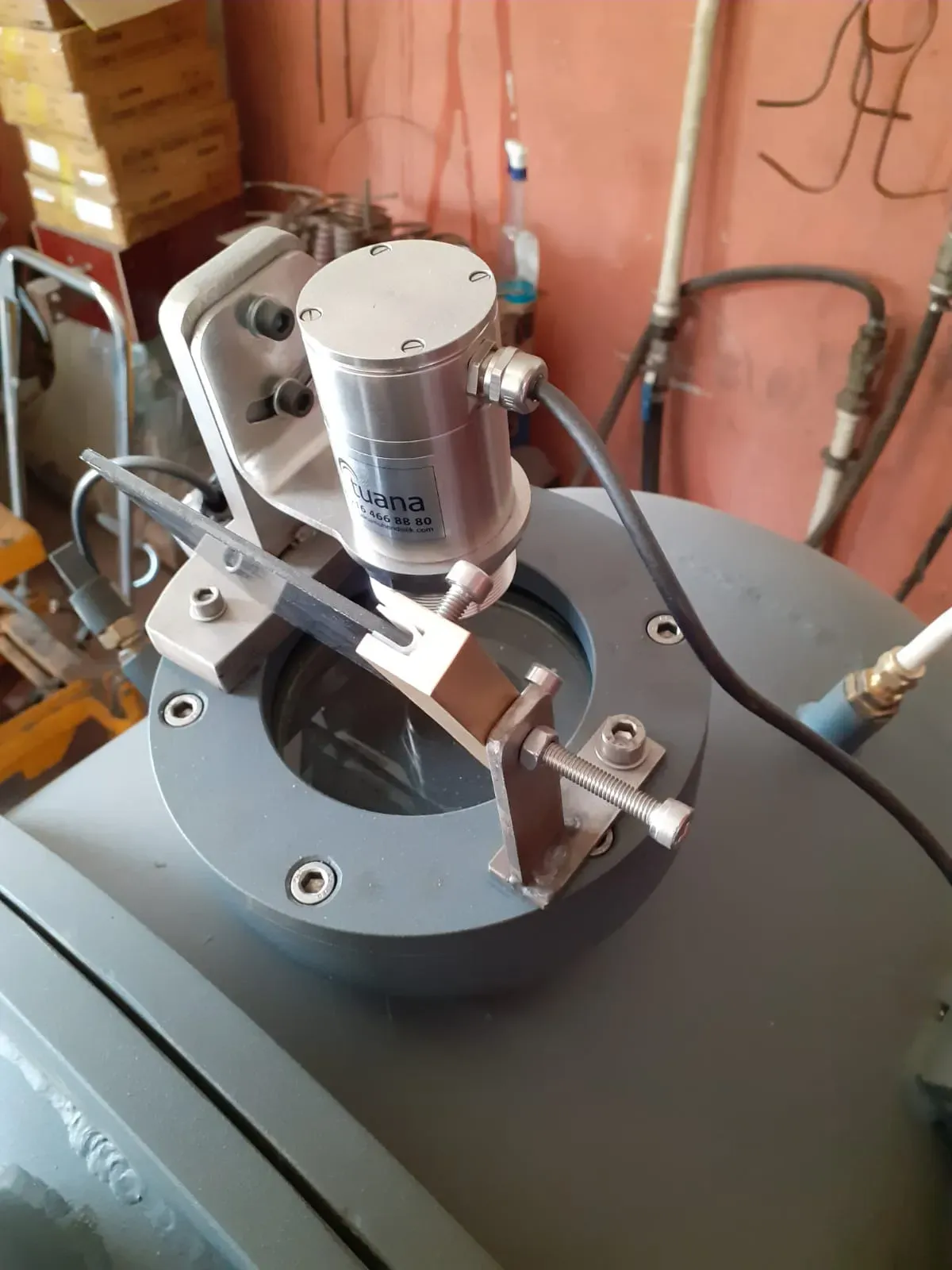

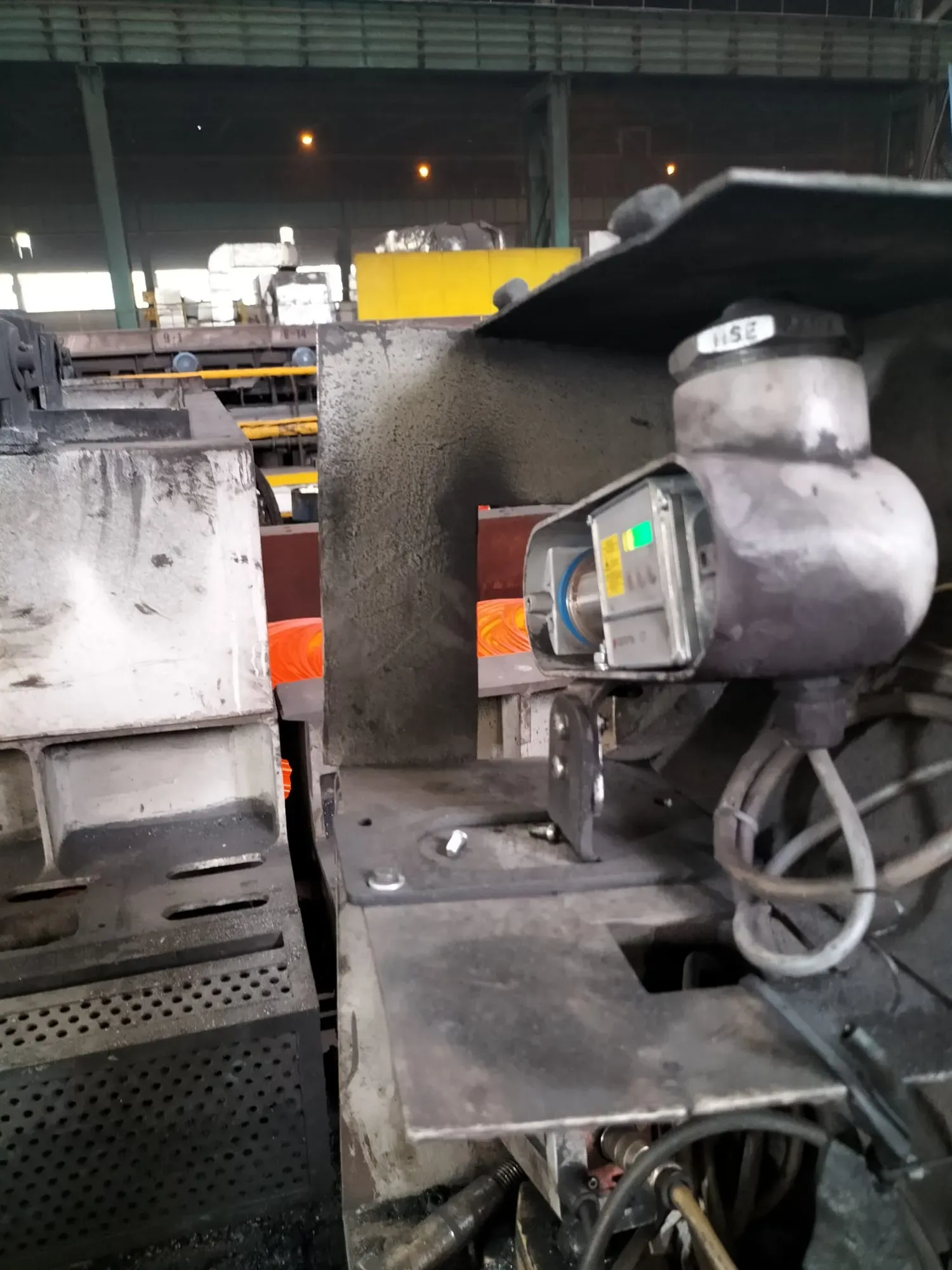

Enhanced with Optris accessories such as air purging and mounting flanges, the CTlaser LT pyrometer is designed for integration into various manufacturing and process applications. Manufactured and calibrated in Germany, these pyrometers adhere to government standards such as PTB or NIST. Customization options, such as different cable sizes, are available to meet specific requirements. Optris provides comprehensive support, including consultation on industrial applications and post-sales assistance, ensuring optimal performance and user satisfaction.
| Model & Detector | |
| Model | CTlaser LT |
| Detector | Thermopile |
| Measurement Principle | Single Color |
| Spectral Range | 8 – 14 μm |
| Response Time / Exposure Time | 120 ms |
| Sampling Frequency | 8 Hz |
| Measurement | |
| Object Measurement Range | -50 ... 975 °C |
| Accuracy | ±1 °C or ±1 % **2) |
| Repeatability | ±0.5 °C or ±0.5 % **2) |
| Thermal Sensitivity (NETD) | 100 mK |
| Emissivity / Transmissivity | 0.100 – 1.100 |
| Warm-up time | 10 min |
| Optical & Sighting | |
| Distance to Spot ratio (D:S) | 75:1 |
| Laser Sighting | Double point laser (635 nm, max 1mW) |
| Focus | Fixed |
| Standard Optics (SF) | 16 mm @ 1200 mm |
| Optional Optics (CF) | CF1: 0.9mm@70mm | CF2: 1.9mm@150mm CF3: 2.75mm@200mm | CF4: 5.9mm@450mm |
| Interfaces & Signal Processing | |
| Analog Output | 0-20 mA / 4-20 mA / 0-5 V / 0-10 V / t/c (K/J) |
| Digital Interface | USB / RS232 / RS485 / Profibus / Ethernet / Relay |
| Protocols | Modbus TCP/RTU, Profinet, Ethernet/IP |
| Capabilities | Average, Peak hold, Valley hold, Advanced peak hold, Triggered functions |
| Mechanical & Environmental | |
| Operating Temperature | Sensing head: -20 ... 85 °C **4) Electronics: -20 ... 85 °C |
| Protection Class | IP 65, NEMA 4 |
| Housing Material | Stainless Steel |
| Size (Sensing head) | Ø50 x 100 mm, M48x1.5 |
| Weight | 600 g (head) / 420 g (electronics) |
| Power & Standards | |
| Power Supply | 8 – 36 V DC / 5 V USB / max. 1.2 W |
| Standards | CE, UKCA, RoHS |
| Part Number | OPTCTLLT |

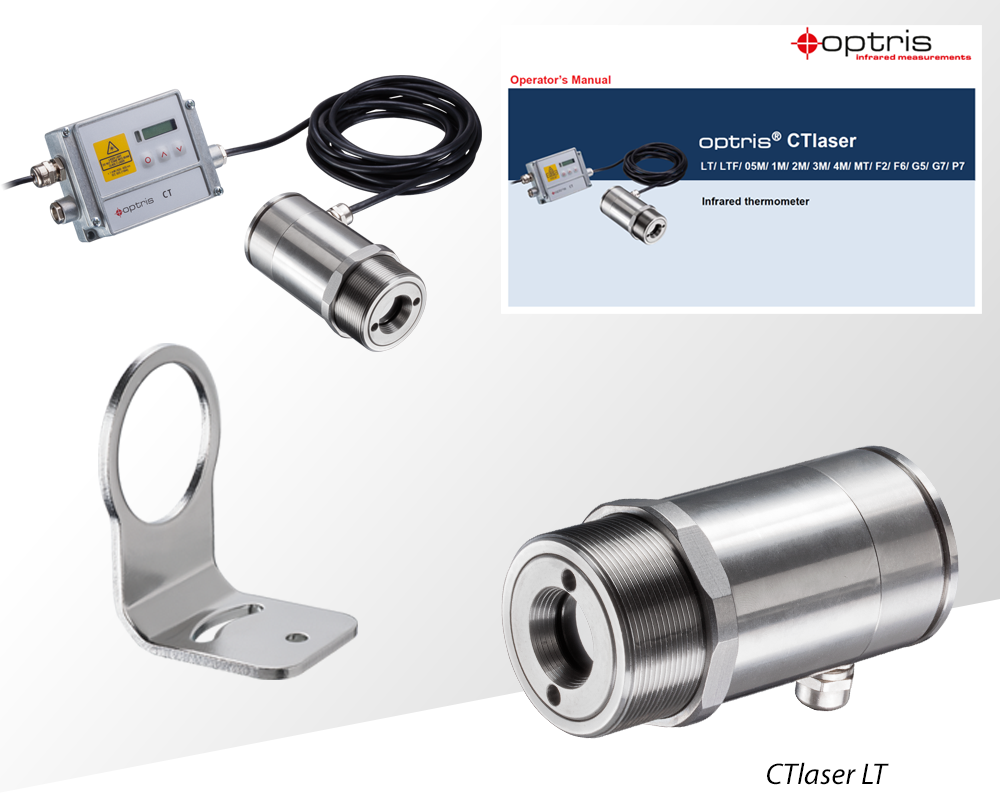

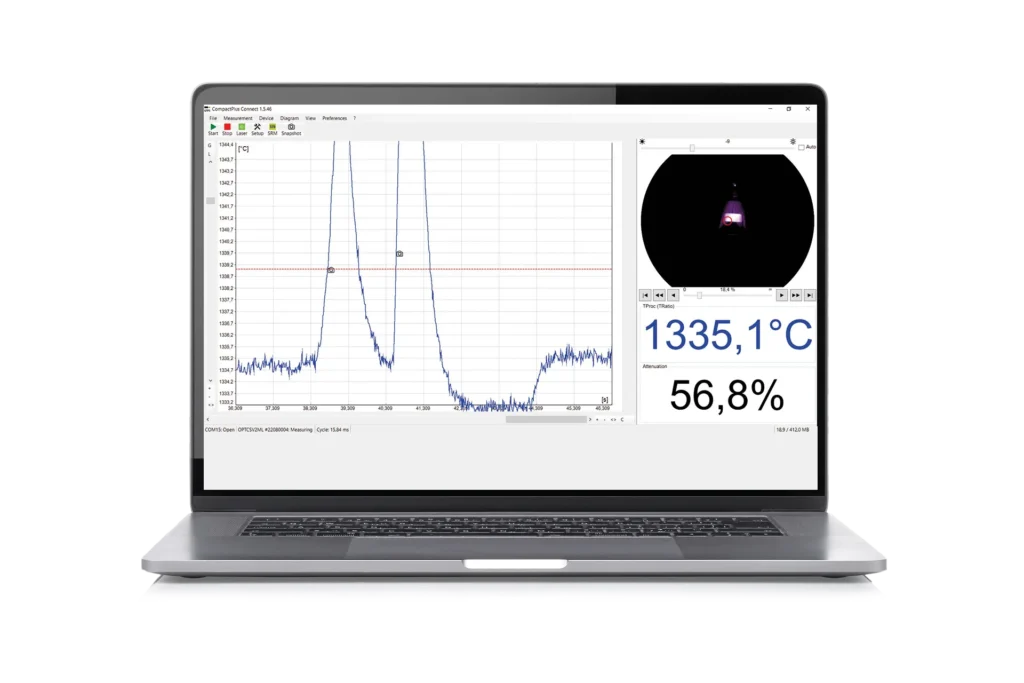

The Optris CompactConnect software improves the functionalities of Optris fixed infrared pyrometers, offering various monitoring, analysis, and control features beyond basic temperature measurement. It includes features like visualizing temperature trends with temperature-time diagrams and documentation. The software enables data logging, automatic process controls, parameterization of the pyrometer via configuration settings, and setting up programmable outputs and inputs. Additionally, it provides advanced signal-processing functionalities.
The Optris IR mobile allows users to set up and commission an Optris infrared pyrometer or infrared camera with an Android smartphone or tablet. This tool becomes handy for commissioning and aligning the infrared cameras field of view or adjusting the configuration. The app analyzes the connected infrared cameras live infrared image stream with auto hot and cold spot detection. For pyrometers, a temperature-time diagram or the video signal is displayed. This app works on most Android devices running 5.0+ with a USB port supporting USB-OTG (On The Go).
