CTex-Kit

Upgrade Kit for CT Infrared Pyrometers in Hazardous Areas

The CTex Upgrade Kit transforms a standard Optris CT sensor into an explosion-proof version, ensuring safe operation in hazardous environments. This kit includes Zener double barriers, providing essential protection in explosion-prone areas (ATEX compliant). The upgrade maintains the same high-performance characteristics as the CTex LT series. The kit ensures secure and precise remote temperature monitoring with the same reliability as the original CT series. This comprehensive upgrade instills confidence in safety, making it indispensable for critical applications in dangerous settings.

  • Upgrades CT infrared sensor to ex-proof version
  • Energy limitation with appropriate zener barriers
  • Approval for zone 1 (PTB 01 ATEX 2053/ E II (1/2) GD [EEx ia/ib] IIC/IIB)

Classification of the optris CT sensing heads according to EN 60079-0/ EN 60079-11 (category of simple electrical devices)

General Specification

  • Operating temperature: -20 °C to 60 °C
  • Storage temperature: -20 °C to 60 °C
  • Size: 122 x 122 x 121 mm
  • Material: stainless steel
  • Environmental rating (acc. to IEC 60529): clamping carrier IP 20 / housing IP 40

Ex-proof Approvals

Classification of the optris CT sensing heads according to EN 60079-0/ EN 60079-11

Europe (CENELEC):

  • for zone 1: PTB 01 ATEX 2053X
  • for zone 2: PTB 01 ATEX 2054X

IECEx PTB 08.0057X

USA:

  • UL E81680V1S3

Canada:

  • CSA 1284580 (LR 43394)

Classes, Divisions and Groups

Europe (CENELEC):

  • for zone 1: E II (1/2) GD [EEx ia/ib] IIC/IIB
  • for zone 2: E II 3 GD EEx nA II T4

USA:

    • I.S. circuits for: class I, II, III,

division 1, groups A, B, C, D, E, F, G

    • I.S. circuits for: class I, zone 0, group IIC

class I, division 2, groups A, B, C, D
class I, zone 2, group IIC

Canada:

    • I.S. circuits for: class I, groups A, B, C, D;

class II, groups E, F, G
class III
class I, division 2, groups A, B, C, D
class I, zone 2, groups IIC

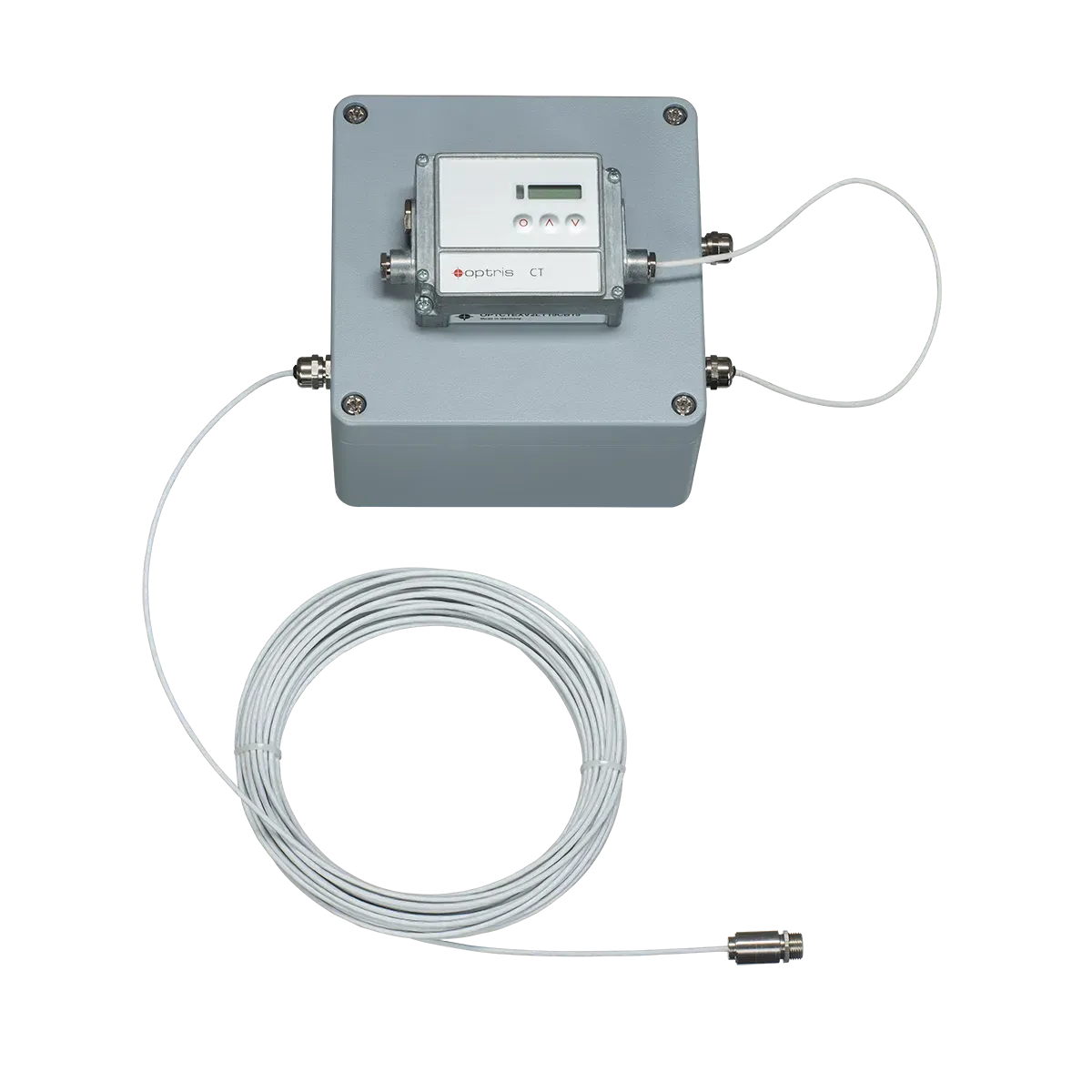

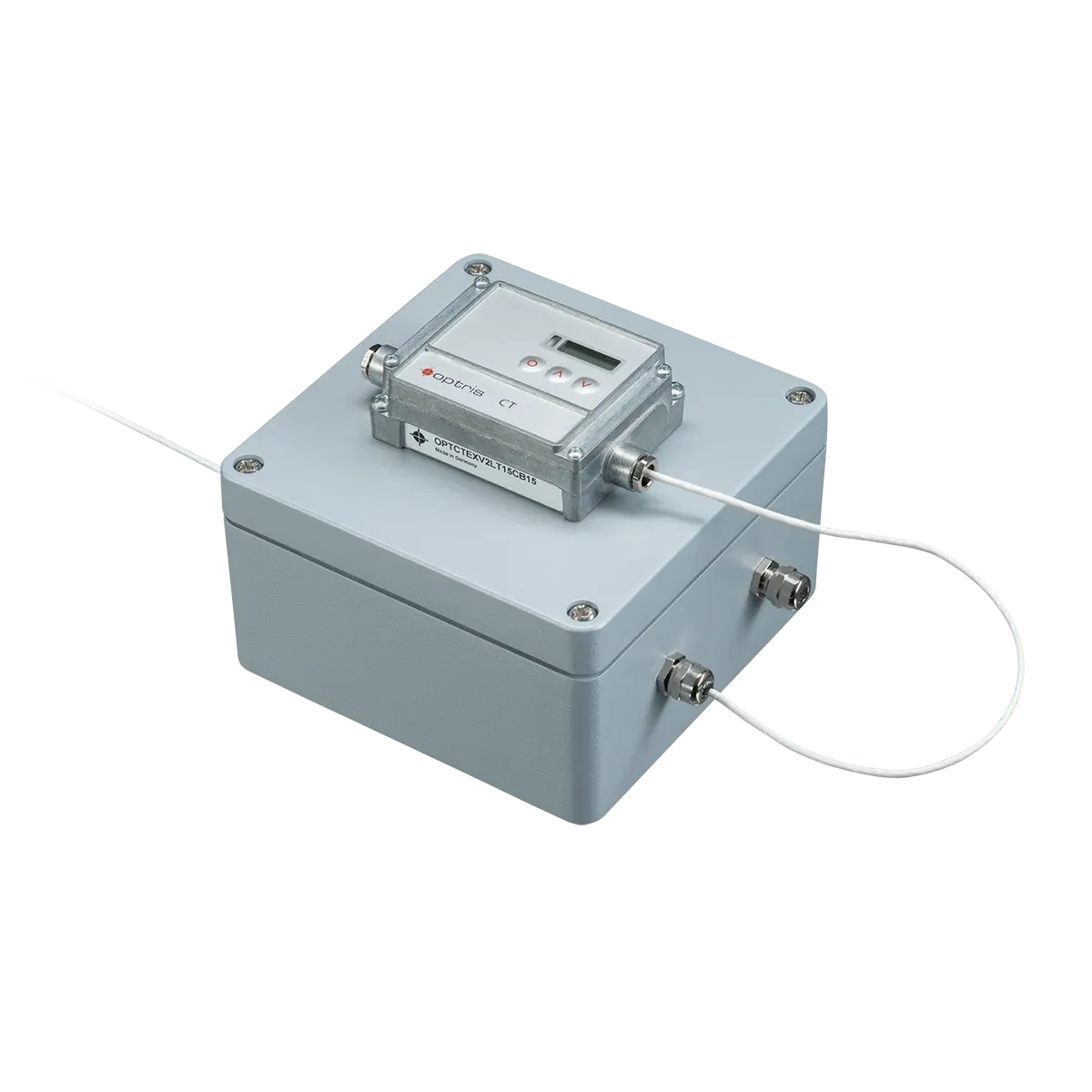

  • 1x aluminum housing with mounting appliance for two zener barriers and CT electronics.
  • 2x zener barriers, type 9002/22-032-300-111 (R. STAHL AG)
