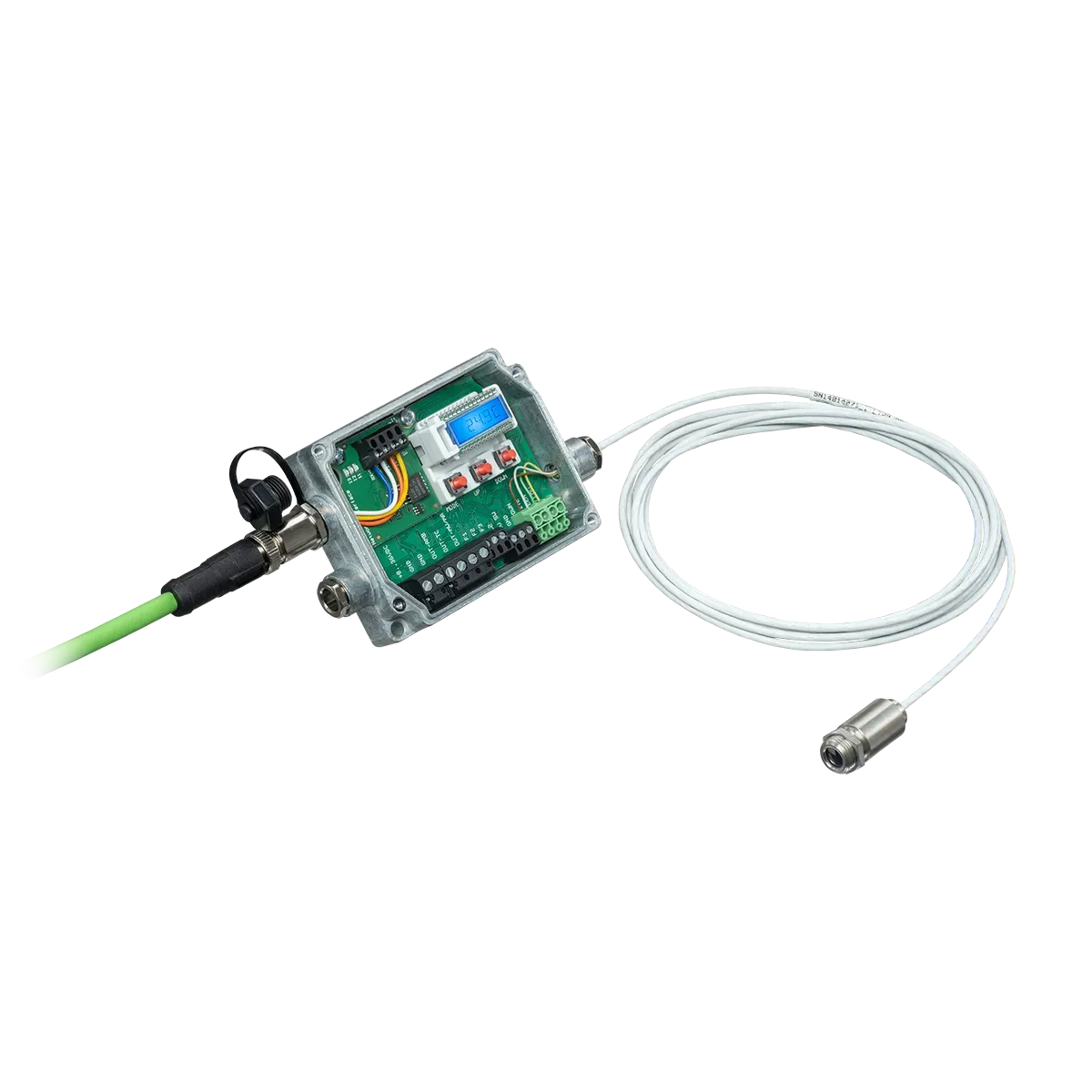

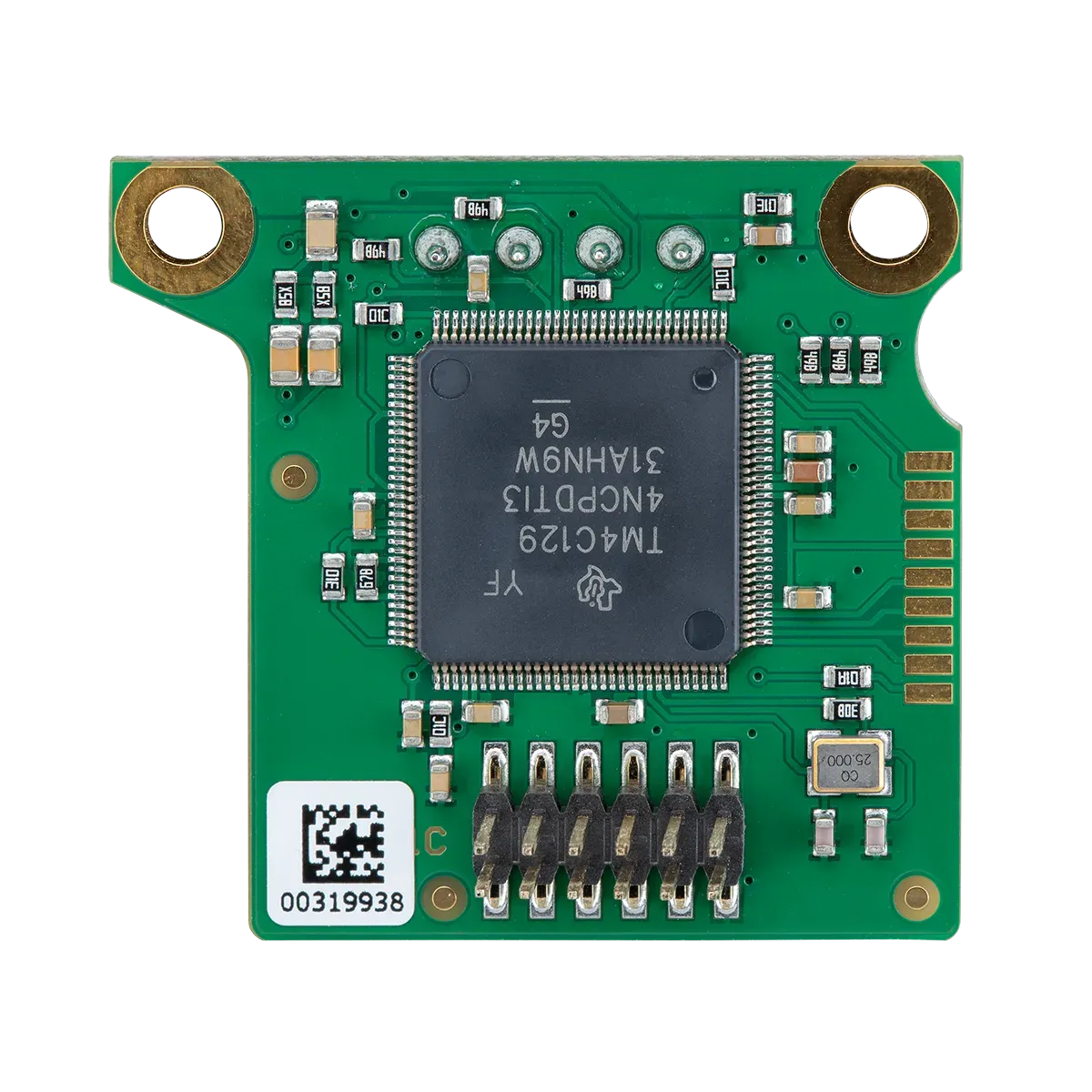

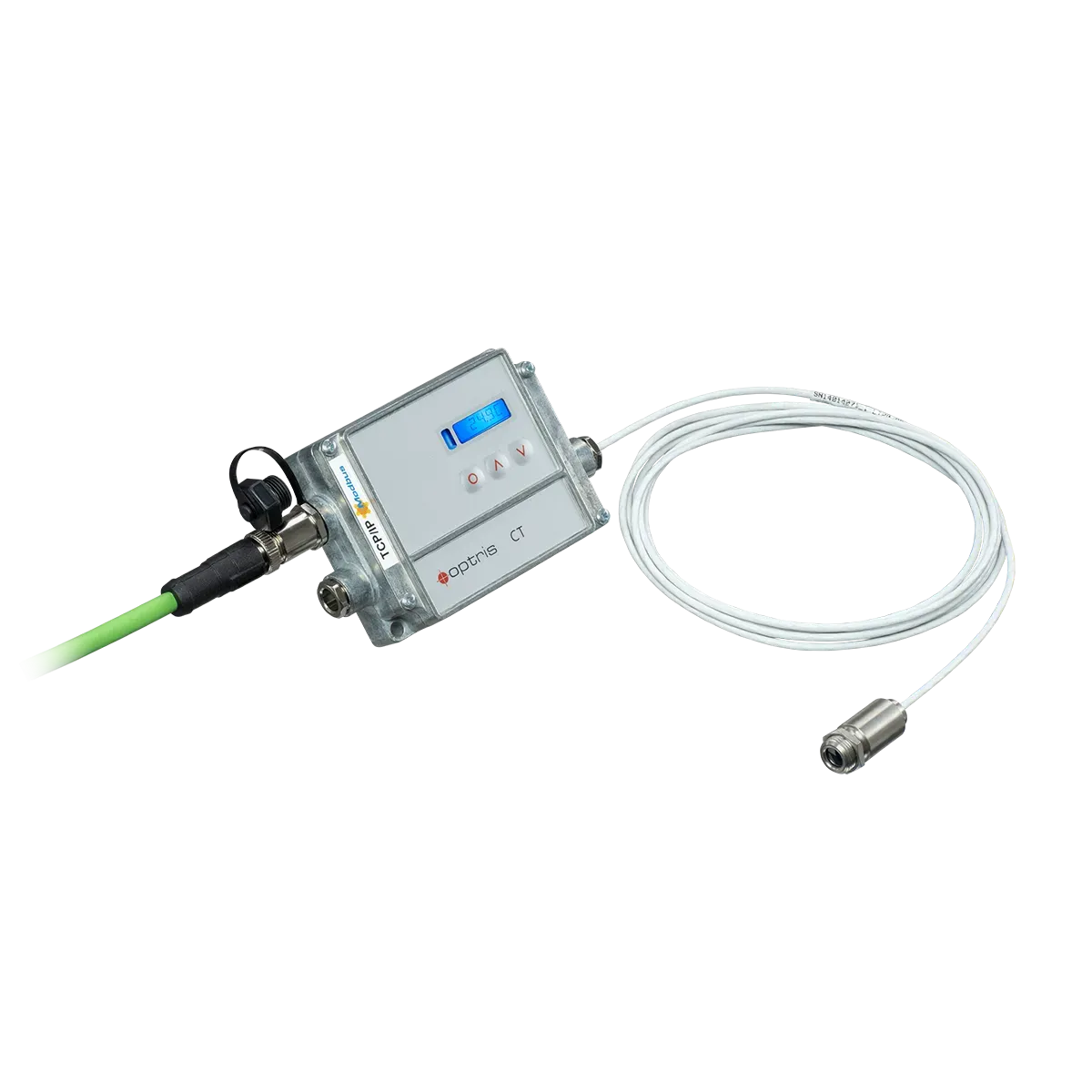

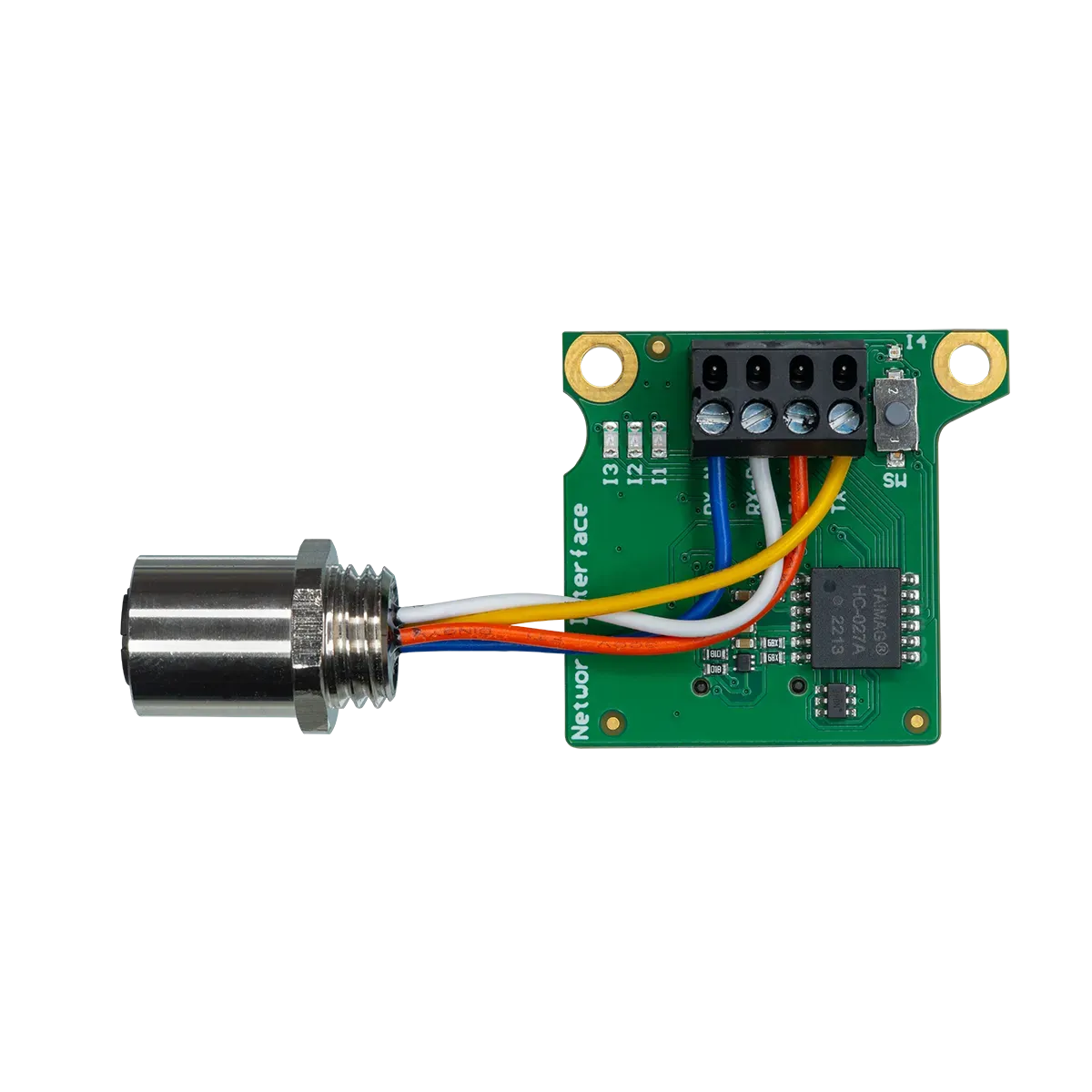

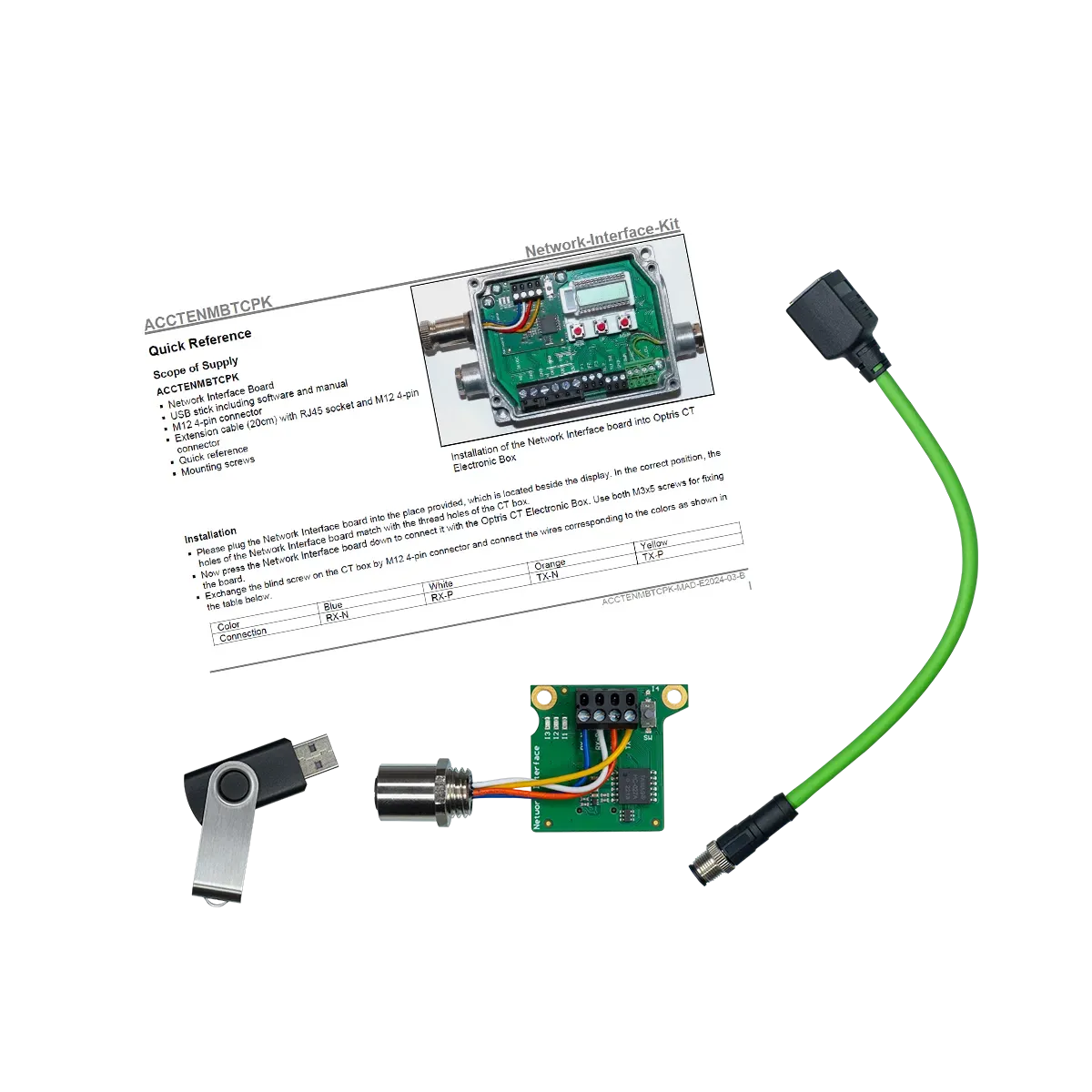

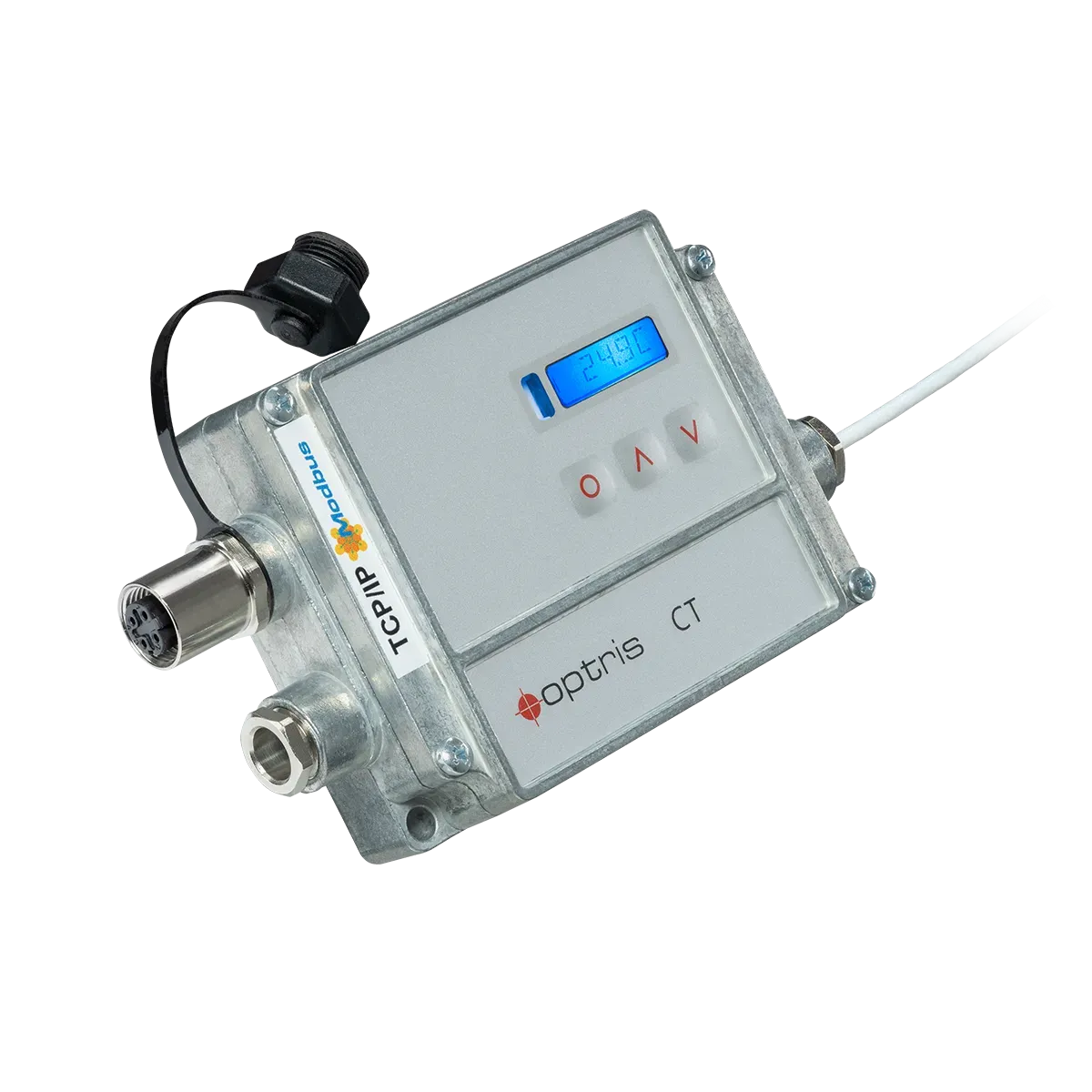

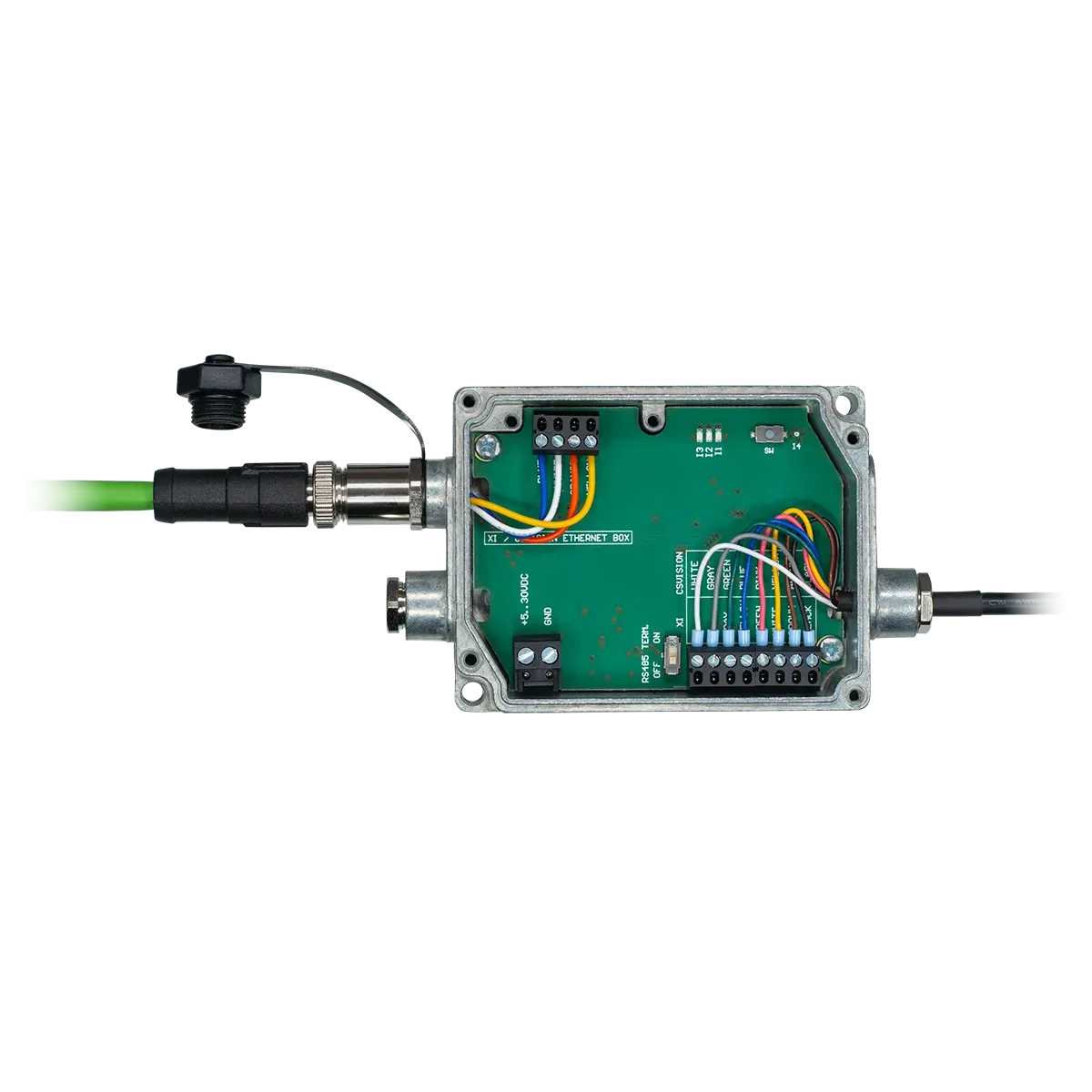

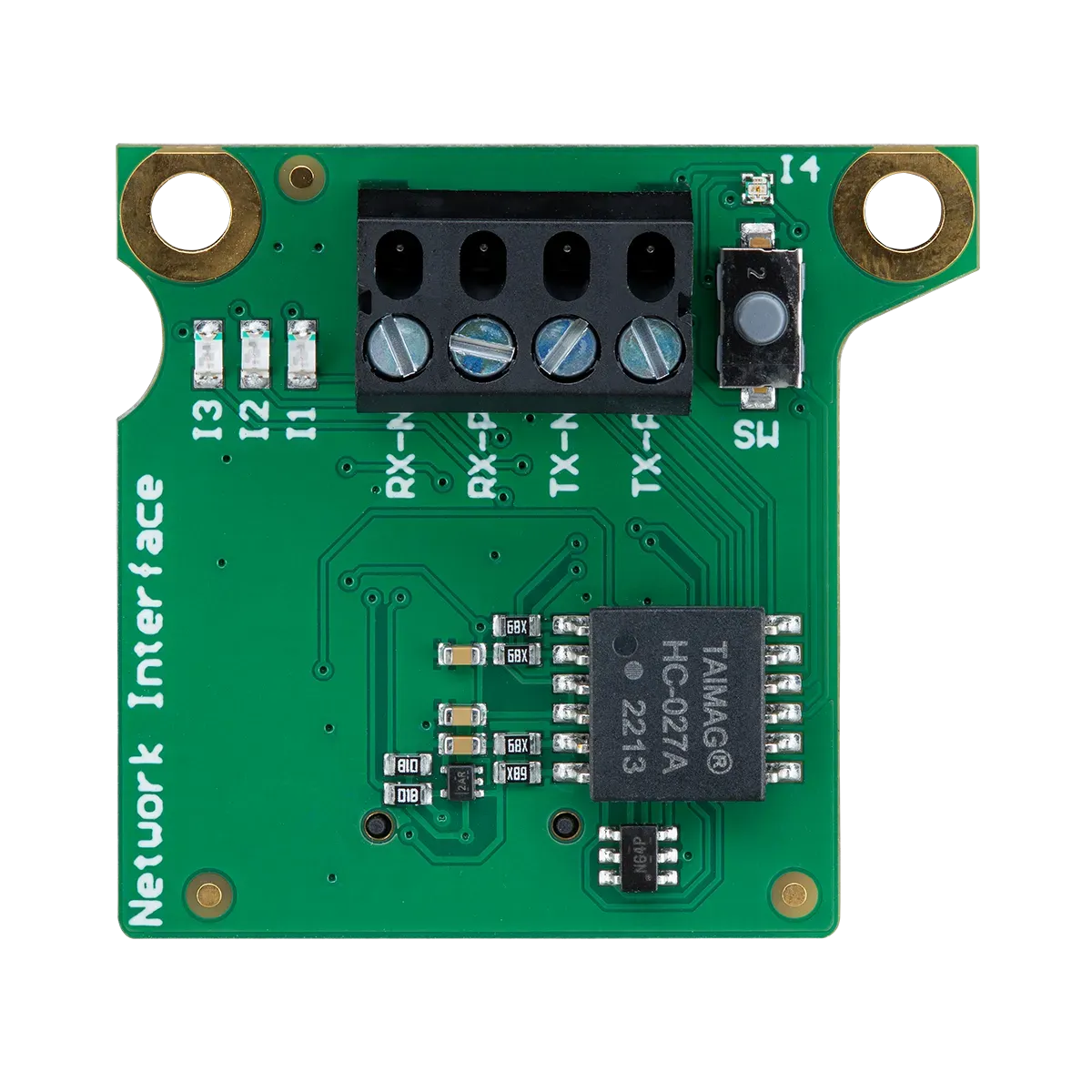

The CT-Ethernet TCP/IP and Modbus TCP Interface Kit facilitate industrial communication for CT, CTlaser, or CTratio infrared devices. The interface board, installed inside the CT electronic box, uses a 4-pin M12 connector with IP67 protection and communicates via the TCP/IP or Modbus TCP protocols. Network settings, stored on the board, enable integration into industrial networks. Users can manage the interface through provided software tools, a web browser, or coding examples as the pre-installed C# scripts. The device supports both static and DHCP IP modes, enhancing versatility and ease of use in various industrial applications. Various communication options are provided, including an Excel sheet with macros for TCP/IP communication and a description of the Modbus TCP protocol.
The CT-Ethernet TCP/IP and Modbus TCP Interface Kit facilitate industrial communication for CT devices. Installed inside the CT electronic box, it uses a 4-pin M12 connector with IP67 protection and supports TCP/IP and Modbus TCP protocols. Network settings enable integration into industrial networks. Users can manage the interface through software tools, a web browser, pre-installed C# scripts, an Excel sheet, and a description of the Modbus TCP protocol.
General Specifications
Interface Board Characteristics
Pin Assignment
