CT 1M

Precise temperature measurements are crucial in laboratory environments, especially when employing pyrometers. However, industrial settings pose unique challenges that can affect temperature accuracy. Optris recommends the use of short-wavelength pyrometers due to their insensitivity to emissivity variation and high optical resolution, ensuring consistent performance across real-world conditions, particularly in hot metal processing applications. Engineers should consider wavelength selection alongside calibration accuracy, optics quality, and temperature range to mitigate potential deviations when measuring metallic targets, including emissivity changes, reflections, and misalignment.

The Optris CT 1M pyrometer is meticulously engineered to accurately measure temperatures ranging from 485 °C to 2200 °C. This infrared sensor is available in different variants, each with a specific temperature range: 1ML (485 °C…1050 °C), 1MH (650 °C…1800 °C), and 1MH1 (800 °C…2200 °C).

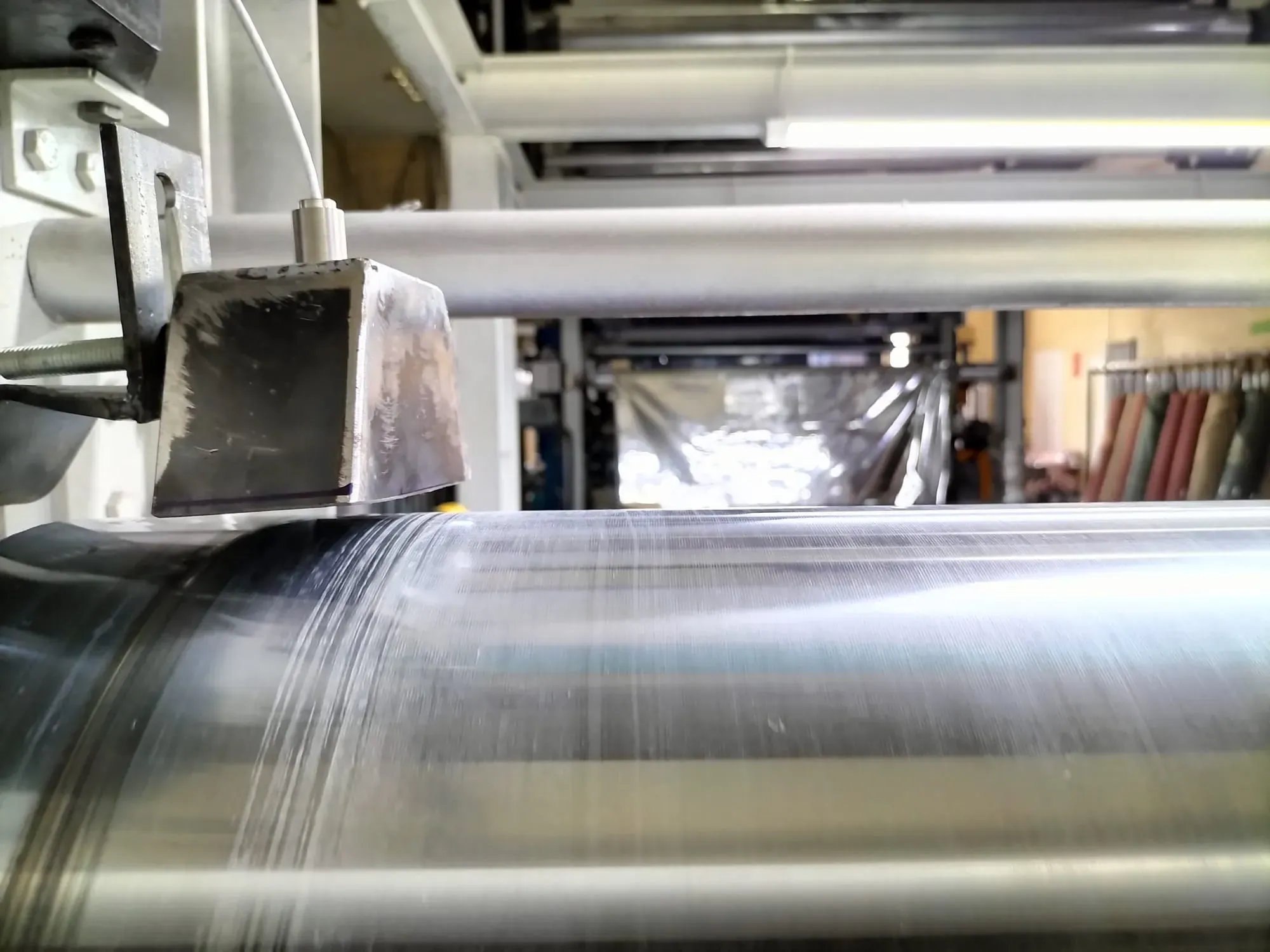

With its specialized spectral range of around 1.0 µm, the InGaAs detector ensures accurate temperature measurements in hot applications. The pyrometers compact infrared measuring head allows for easy installation in tight spaces, facilitating cost-effective mechanical integration. This thermal non-contact sensor finds frequent use in hot metal applications such as steel, tungsten, iron, nickel, and semiconductors.

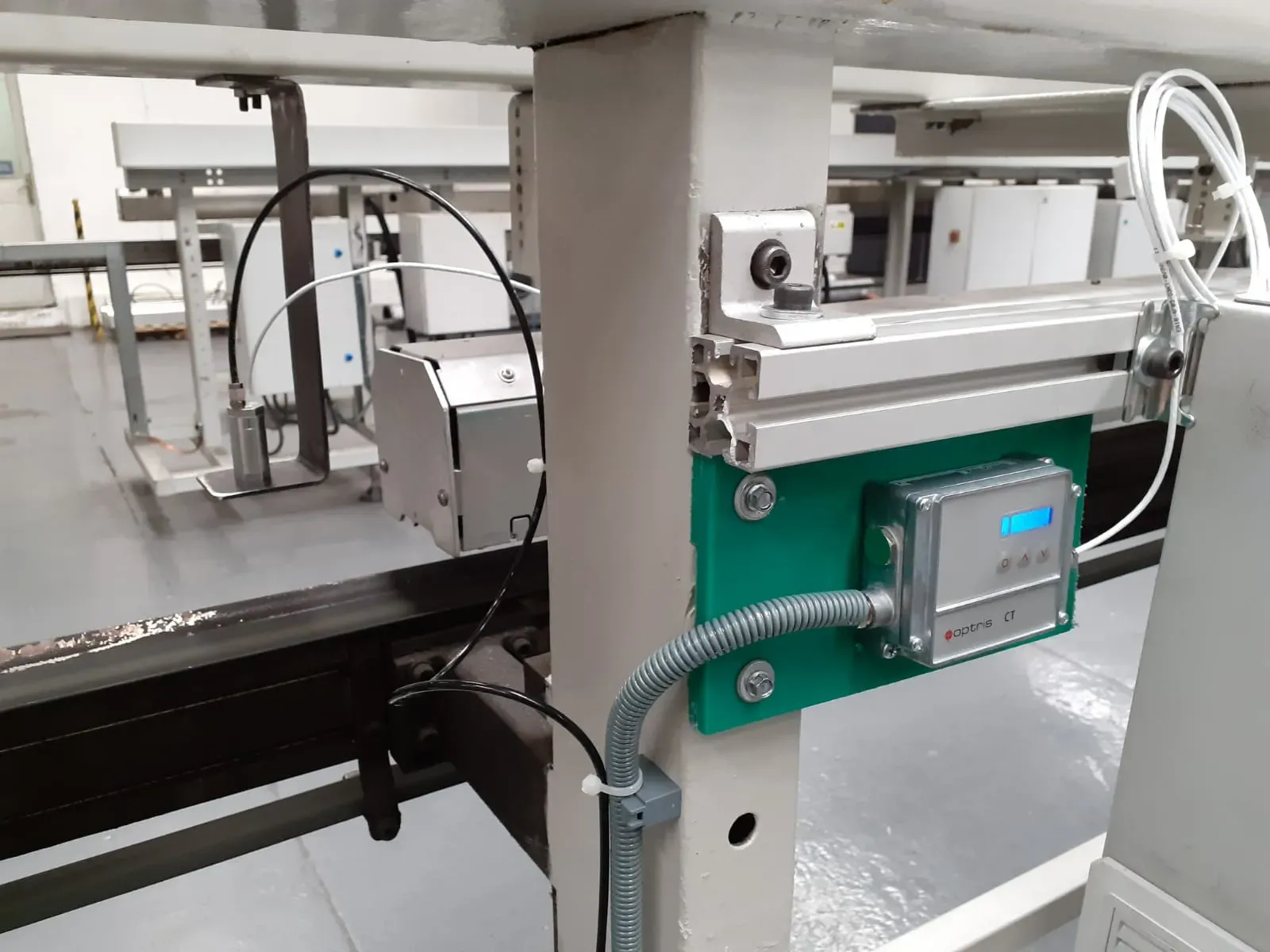

The CT 1M supports a distance-to-spot size ratio of up to 75:1, ensuring precise temperature measurements even from a distance. IR thermometers compact size and temperature resistance of up to 100 °C make it suitable for integration into heavy machinery. Fast processes can be effectively monitored with a rapid response time of just 1 ms.

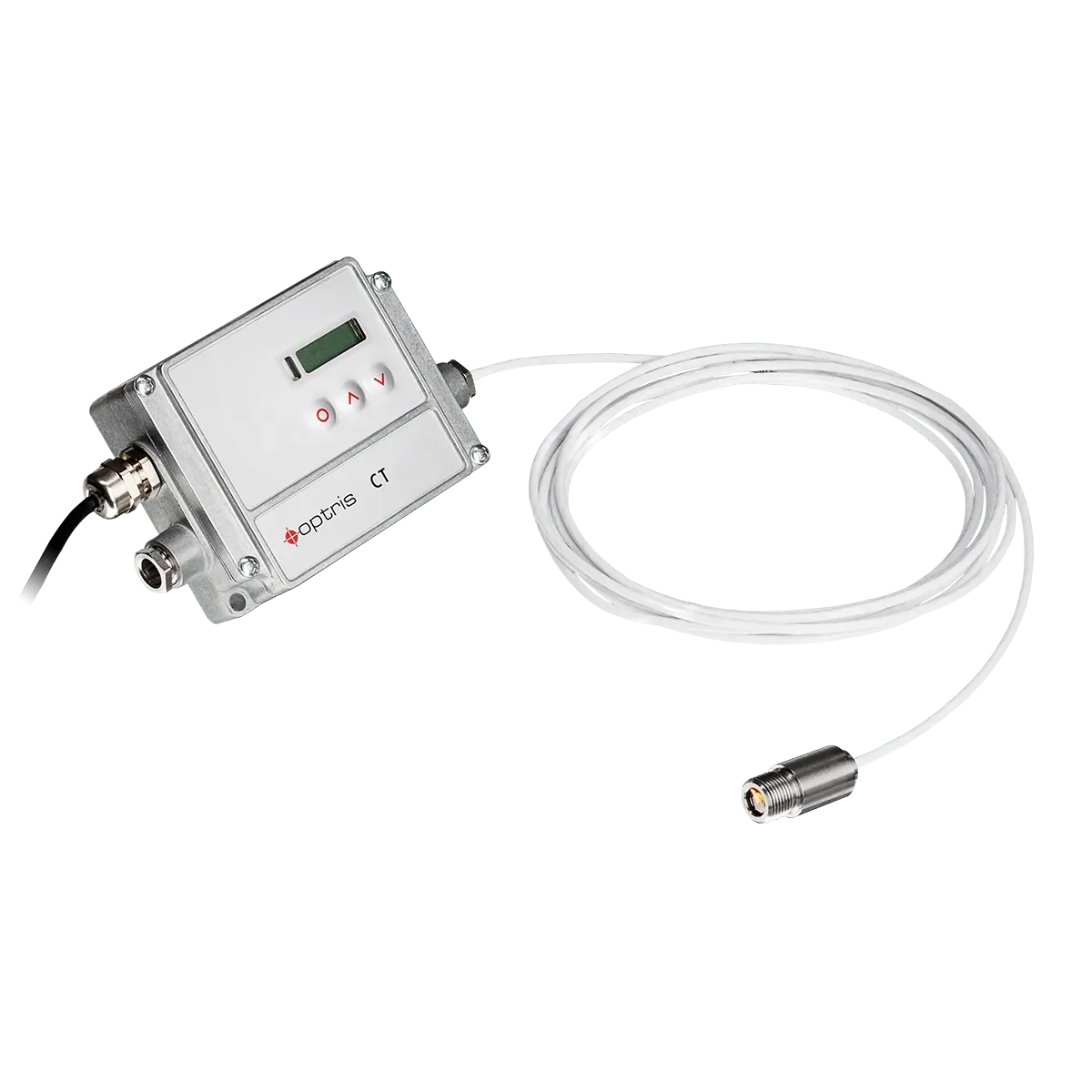

A significant attribute of such an infrared thermometer is its precise non-contact temperature measurement facilitated by separate electronics. The interface includes easily accessible programming keys and an LCD. The pyrometers stainless steel housing enhances durability and is suitable for varied industrial settings.

The Optris CT 1M series infrared sensor emphasizes adaptability. The electronics box offers a range of analog and digital outputs, including 0/4 – 20 mA, 0 – 5 V, 0 – 10 V, thermocouple (type K or J), USB, RS485, RS232 interfaces, relay outputs (2 x optically isolated), Profibus DP, ProfiNet, and Ethernet, Ethernet/IP. This adaptability ensures seamless integration into machinery, enhancing utility across various applications and providing users with versatility.

Enhance the functionality of the infrared sensor with a range of optional accessories designed to meet diverse industrial needs. The mounting fork ensures secure and stable installation, providing a reliable foundation for continuous temperature monitoring. Utilize the sighting tube for precision targeting and improved accuracy in specific applications. The close-focus lens expands the series’ capabilities by enabling detailed temperature measurements on small or distant objects. The air purge accessory safeguards the temperature sensor from contaminants to maintain the optical path in harsh environments. Additionally, the cooling jackets optimize performance in elevated temperature conditions, ensuring consistent and accurate readings. These optional accessories augment the versatility of the Optris CT 1M series, offering tailored solutions for varied industrial scenarios.

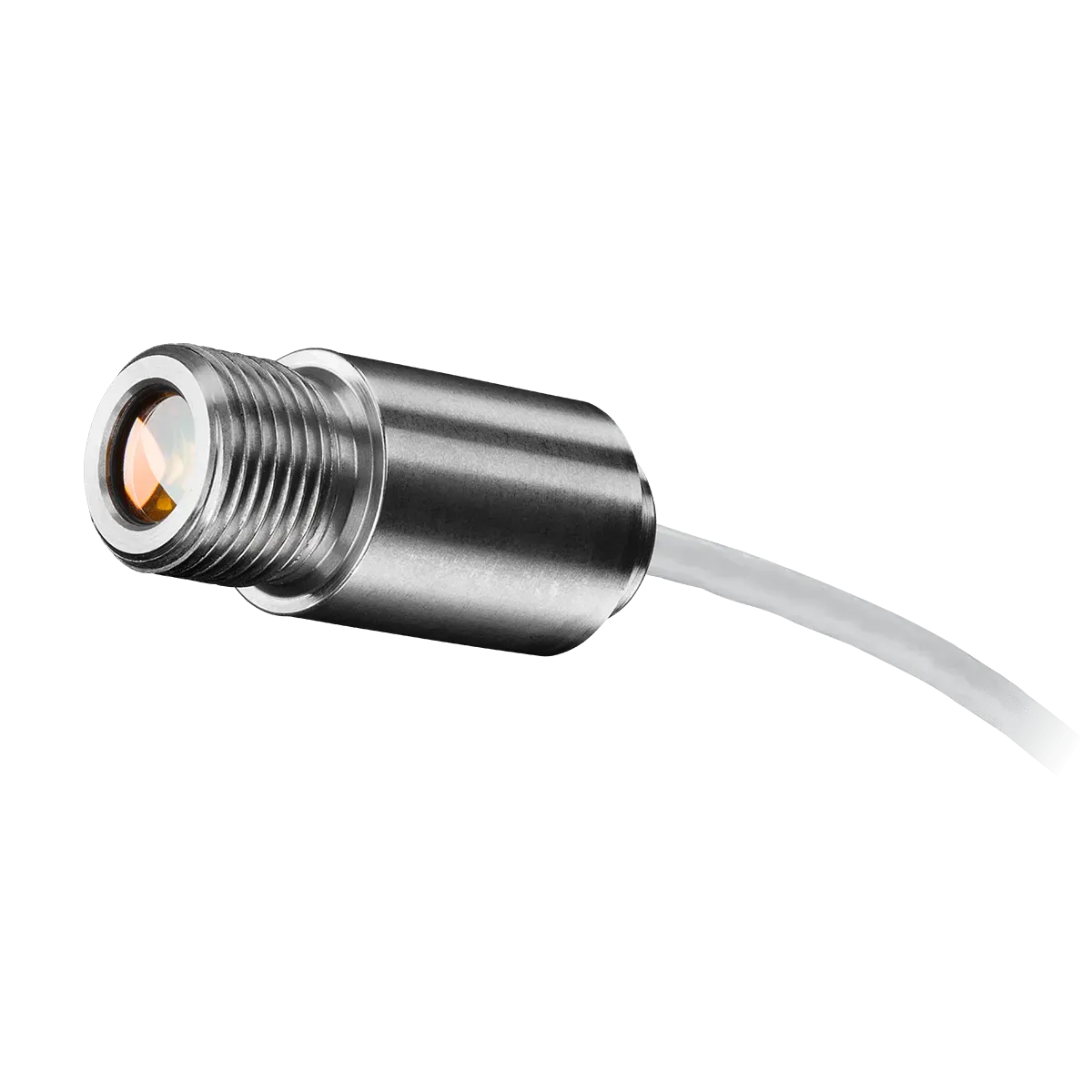

Engineered to withstand even the harshest conditions, the CT 1M pyrometer ensures accurate temperature measurements even in demanding environments. The pyrometers thermal shock-resistant design guarantees consistency despite fluctuations in ambient temperature. The robust stainless steel measuring head simplifies integration into confined spaces, making the infrared sensor suitable for various applications. The pyrometers exceptional temperature resistance allows seamless operation in ambient temperatures up to 100 °C without supplementary cooling, positioning the IR sensor as an optimal solution for high-temperature environments. The CT 1M’s distinctive thermal shock-resistant design guarantees repeatability with ambient temperature changes. Manufactured in Germany to meet high-quality requirements, such thermal sensors thrive in the most challenging conditions. The fixed-mounted design ensures stability and accuracy over extended periods, making the CT 1M an essential tool for critical industrial processes.

Optional accessories enhance the functionality of the infrared sensor, meeting diverse industrial needs. The mounting fork ensures secure and stable installation for continuous temperature monitoring, while the sighting tube improves targeting precision and accuracy. The close-focus lens enables detailed temperature measurements on small or distant objects, and the air purge accessory safeguards the temperature sensor from contaminants in harsh environments. Cooling jackets optimize performance in elevated temperature conditions, ensuring consistent and accurate readings. These optional accessories augment the versatility of the Optris CT 1M series, offering tailored solutions for varied industrial scenarios.

In summary, the Optris CT 1M series pyrometer combines precision, adaptability, and durability to facilitate non-contact temperature measurements. Whether capturing quick manufacturing processes or operating in challenging conditions, the IR pyrometer is a reliable and efficient solution for diverse industrial applications.
